208700 Zebra

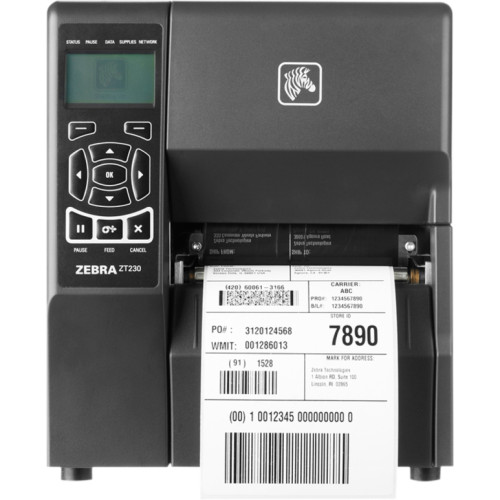

ZT23042-T31200FZ - Zebra ZT230 Bar code Printer

ZT230, Thermal transfer printing, 203 dpi, 4" print width, Serial, USB, and Ethernet Interfaces, Peeler with Linear Take-Up, and US Power cord. Cables sold separately.
InStock
$1,719.00 $1,237.68
Ships Today
Free Shipping
- +

Description

The ZT230 is the premium product within the Zebra printer line. Distinguishing features of the ZT230 include the mostly metal printer cover, an icon based LCD graphical user interface, and larger print ribbon capacity (450M). The ZT230 is the next generation replacement for the S4M, having the same list price while offering an enhanced feature set and improved mechanical and functional design.
  • Space-saving design
  • Multiple connectivity options: parallel, 10/100 Ethernet, 802.11b/g/n wireless
  • Fast installation and integration
  • Intuitive, effortless media loading
  • Crisp, clean text and barcodes \"\" even on narrow media
  • Built for light industrial and commercial environments
  • Easy, tool-less platen and printhead removal enable simple cleaning and replacement
  • Energy Star-compliant
  • Icon-based status LEDs provide immediate and easily visible printer status

Additional Information

Print Resolution 203 dpi
Included Features Peeler
Item Condition New
Manufacturer Zebra

Recommended Accessories

Recommended Labels

  • Zebra Z-Select 4000T Label (72287)

    Z-Select 4000T, 3.25" x 5,831" Thermal transfer paper label. Continuous roll. 6 roll/case. Also available as a roll (Part# 72287-R).
    $160.52
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (800622-205)

    Z-Select 4000T, 2.25" x 2" Thermal transfer paper label. 3,292 labels/roll. 4 roll case. Also available as a roll (Part# 800622-205-R).
    $100.51
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72378)

    Z-Select 4000T All-Temp, 4" x 6.50" Thermal transfer paper label. Not perforated. 880 labels/roll. 4 roll case.
    $124.28
    Ships In 3-5 Days
    - +
  • Zebra Z-Select 4000T Label (98962)

    Z-Select 4000T, 4" x 5,594" Thermal transfer paper label. Continuous roll. 4 roll case. Also available as a roll (Part# 98962-R).
    $109.93
    Ships Today
    - +
  • Zebra Z-Select 4000T Label (72282)

    Z-Select 4000T, 2.75" x 1.25" Thermal transfer paper label. Not perforated. 4,240 labels/roll, single roll. Also available as a roll (Part# 72282-R).
    $187.92
    Ships Today
    - +

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5100 Premium Resin Ribbon (05100BK04045)

    5100 Premium Resin, 1.57" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, Rolls per Case: 6, Core Size: 1", Available as a single roll (05100BK04045-R)
    $318.63
    Ships Today
    - +
  • Zebra 5100 Premium Resin Ribbon (05100BK08945)

    5100 Premium Resin, 3.50" x 1,476' Black Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polyester labels. Also available as a single roll (Part# 05100BK08945-R).
    $647.39
    Ships Today
    - +
  • Zebra 5100 Premium Resin Ribbon (05100BK15445-R)

    5100 Premium Resin, 6.06" x 1,476' Black Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polyester labels. Also available as a single roll (Part# 05100BK15445-R).
    $1,140.09
    Ships In 3-5 Days
    - +
  • Zebra 5100 Premium Resin Ribbon (05100BK06045)

    5100 Premium Resin, 2.36" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, Rolls per Case: 6, Core Size: 1", Available as a single roll (05100BK06045-R)
    $478.91
    Ships Today
    - +
  • Zebra 5100 Premium Resin Ribbon (05100BK11045)

    5100 Premium Resin, 4.33" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05100BK11045-R)
    $800.93
    Ships Today
    - +

Recommended Warranties

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Clear Bi-fold Media Side Door
    • Bi-color LED
    • Liner Take Up Spindle
    • Icon-graphics
    • Element Energy Equalizer
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • RSS Composite
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Macro PDF
    • RSS-14
    • Aztec Code
    • Macro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • Unicode
    • KCC
    • BSMI
    • UkrSepro

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
