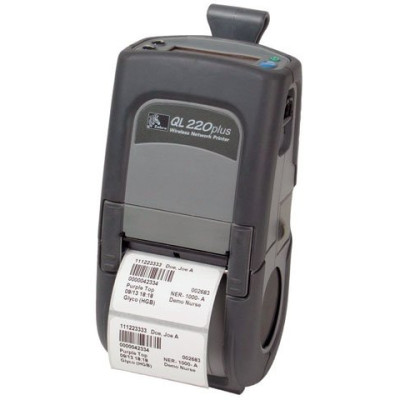

Zebra QL220 Plus Specs
Zebra QL220 Plus Driver
Standard Features
-
- Print method: Direct thermal
- Rubber infused plastic over-mold design for tough
conditions
- Battery monitoring via a battery low indicator light or gauge
on the optional LCD
- Lithium ion battery
- "œClamshell" design and center locking media loading
- Backward compatible with Encore and Cameo media and
cables
- Label Vista and Windows printer drivers
- Quick Flip Peel and Present Mode
- 32-bit High Speed Processor
- USB 2.0 Full Speed Support
- Print method: Direct thermal
Printer Specifications
- Resolution
- 203 dpi (8 dots/mm)
- Memory
-
- 8 MB SRAM
- 4 MB Flash
- 8 MB SRAM
- Print width
- 1.89" (48 mm) maximum
- Print length
- 32" (813 mm) maximum
- Print speed
- 3" (76 mm)/sec
- Media sensors
- Reflective
Transmissive
Media Characteristics
- Maximum label and liner width
- .63" (16 mm) to 2.18" (55 mm)
- Maximum roll diameter
- 2.2" (55.9 mm)
- Core diameter
- Interchangeable .75" (19.1 mm) or 1.38" (34.9 mm)
- Media thickness
- Label thickness: 2.5 mil to 6.5 mil / Tag receipt thickness: 2.5 mil to 6.0 mil
- Media types
- roll-fed, die-cut, linerless, receipt
Operating Characteristics
- Operating temperature
- DT: Operating temperature 5° F (-15° C) to 122° F (50° C) Direct thermal
- Storage temperatures
- -13° F (-25° C) to 158° F (70° C)
- Operating humidity
- 10-80% non-condensing
- Storage humidity
- 10-90% non-condensing
- Electrical
- External charger options
- Lithium Ion
- 2100 Ah
- 7.2 V
- Agency approvals
-
- FCC and CE Class B compliance
- Design certified by CSA
- CB Scheme report
- NOM certified
- C-Tick clearance
- FCC and CE Class B compliance
Physical Characteristics
- Width
- 3.57" (90.7 mm)
- Height
- 7.15" (181.6 mm)
- Depth
- 2.96" (75.2 mm)
- Weight
- 1.04 lbs (0.47 kg)
Related Products
- Options
-
- LCD control panel
- 802.11b wireless local area network (WLAN) or
Bluetooth
- Peel and present mode
- Patented media width auto-sensing feature
- Linerless printing
- Spare Lithium Ion battery packs
- Battery chargers
- International character sets
- Label Vista software for receipt and label design and font
creation
- Wireless Security Support (ie. VPN or WPA)
- LCD control panel
- Communication and Interface Capabilities
-
- RS-232 8PIN DIN connector serial port
- USB 2.0 Full Speed Support
- Selectable baud rate 9600 to 115.2 kbps
- Xon/Xoff or hardware flow control
- Optional: Bluetooth
- Optional: 802.11b Wireless LAN
- RS-232 8PIN DIN connector serial port
Programming Languages
- Core programming languages
- EPL2, ZPL II, CPCL-native
Barcodes/Symbologies
- Linear
- Codabar
Code 128
Code 93
Code 39
EAN-8 and EAN-13 with 2 or 5 digit extensions
Interleaved 2-of-5
Postnet
Plessey
UCC/EAN-128
FIM
UPC-A and UPC-E with 2 or 5 digit extensions
- 2-dimensional
- PDF417
MaxiCode
Data Matrix
RSS
QR Code
QR Code (requires Asian version printer)
- Fonts and Graphics
-
- Standard fonts: five resident scalable, rotatable fonts from
12-48 pt.
- Downloadable soft fonts from Label Vista software
- Optional internal character sets
- Supports graphics, line and box drawing features; PCX and bitmap
- Standard fonts: five resident scalable, rotatable fonts from
12-48 pt.
