model-14057 Zebra

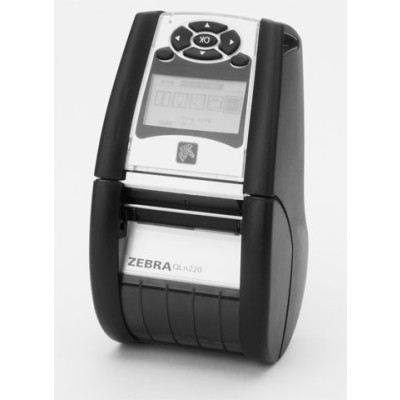

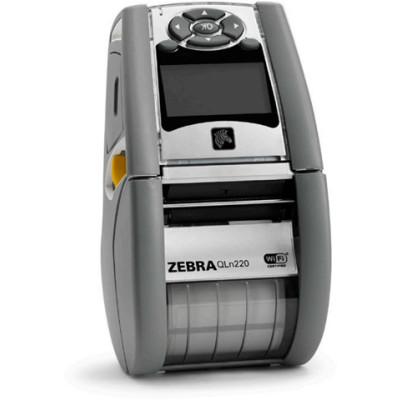

Zebra QLn220 Healthcare Portable Printer

The QLn220 Health care printer is small and light enough to be easily carried on a belt clip or trolley and deliver labels at the point of care. Durable yet small, this printer is ideal for printing narrow-width labels almost anywhere in a health care environment to reduce errors associated with multi-tasking and increase productivity.
Starting At: $995.00 $634.14

View all options

Refine Your Options
Shop By
Shopping Options
Manufacturer
  1. Zebra (4)
Printer Type
  1. Mobile (2)
  1. QH2-AUNA0M00-00 - Zebra QLn220 Health care Portable Bar code Printer

    QLn220 Health care, Direct thermal Printing, Health Care Disinfectant-ready Housing, 2" print width, USB/Wi-Fi/Bluetooth interfaces, Apple iOS certified
    $1,145.00 $881.65
    Ships Today
    Free Shipping
    - +
  2. QH2-AUCA0M00-00 - Zebra QLn220 Health care Portable Bar code Printer

    QLn220 Health care, Direct thermal Printing, Health Care Disinfectant-ready Housing, 2" print width USB/Bluetooth interfaces, Apple iOS certified
    $995.00 $766.15
    Ships Today
    Free Shipping
    - +
  3. QH2-AUCA0M00-00-R - Zebra QLn220 Portable Bar code Printer

    QLn220, REFURBISHED/USED/REBUILT Direct Thermal Printing, Health Care Disinfectant-Ready Housing, 2" print width USB/Bluetooth interfaces, Apple iOS certified Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
    $995.00 $634.14
    Ships In 3-5 Days
    Free Shipping
    - +
  4. QH2-AUNA0M00-00-R - Zebra QLn220 Portable Bar code Printer

    QLn220, REFURBISHED/USED/REBUILT Direct Thermal Printing, Health Care Disinfectant-Ready Housing, 2" print width, USB/WiFi/Bluetooth interfaces, Apple iOS certified, Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
    $1,145.00 $729.74
    Ships In 3-5 Days
    Free Shipping
    - +

4 Item(s)

Recommended Accessories

Recommended Labels

  • Zebra Portable Printer Label (LD-R7BL5B)

    PolyPro 4000D, 2" x 1" Direct thermal polypropylene label. Black mark sensing, Not perforated. 350 labels/roll, 36 roll case. Also available as a roll (Part# LD-R7BL5B-R).
    $162.60
    Ships Today
    - +
  • Zebra Portable Printer Label (LD-R2BF5W)

    PolyPro 4000D, 2" x 1.25" Direct thermal polypropylene label. Shelf mark adhesive. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2BF5W-R).
    $178.00
    Ships Today
    - +
  • Zebra Z-Perform 1000D Label (LD-R2AL5B)

    Z-Perform 1000D, 2" x 1.25" Direct thermal paper label. Black mark sensing, Not perforated. 280 labels/roll, 36 roll case. Also available as a roll (Part# LD-R2AL5B-R).
    $99.40
    Ships Today
    - +
  • Zebra Z-Perform 1000D Label (LD-R7AM5R)

    Z-Perform 1000D, 2" x 3" Direct thermal paper label. Black mark sensing, Not perforated. 125 labels/roll, 36 roll case.
    $114.20
    Ships Today
    - +
  • Zebra Z-Perform 1000D Label (LD-R7MU5P)

    Z-Perform 1000D, 2" x 1" Direct thermal paper label. Black mark sensing, Not perforated. 350 labels/roll. 36 roll case. Also available as a roll (Part# LD-R7MU5P-R).
    $102.10
    Ships Today
    - +

Recommended Warranties

  • Zebra QLn Healthcare Service Contract (Z1AE-QNHC-3C0)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, QLn Health care, 3 Years, Comprehensive
    $230.00
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra QLn Healthcare Service Contract (Z1AS-QNHC-5CM)

    Service Contract - 5 year, Select, Purchased within 30 days of Device, Advanced Exchange, QLn Health care, 5 Years, Comprehensive with Battery Maintenance (applicable countries only)
    $710.00 $547.48
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra QLn Healthcare Service Contract (Z1AF-QNHC-5CM)

    Service Contract - 5 year, Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, QLn Health care, 5 Years, Comprehensive with Battery Maintenance (applicable countries only)
    $670.00 $516.64
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra QLn Healthcare Service Contract (Z1AE-QNHC-5CM)

    Service Contract - 5 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, QLn Health care, 5 Years, Comprehensive with Battery Maintenance (applicable countries only)
    $638.00
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra QLn Healthcare Service Contract (Z1AE-QNHC-5CR)

    Service Contract - 5 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, QLn Health care, 5 Years, Comprehensive w Battery Refresh (Applicable countries only)
    $650.00
    Ships In 3-5 Days
    Free Shipping
    - +

STANDARD FEATURES

  • Disinfectant-ready plastics in a healthcare color scheme
  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips (102 mm/s)

More Standard Features
  • Apple® iOS, Android, Windows Mobile and BlackBerry® connectivity
  • CPCL, EPL™ and ZPL® programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
  • 2450 mAh (nominal) 18.1 Wh removable, rechargeable Li-Ion battery
  • Built-in battery charger
  • IEC 60601-certified AC adapter for medical environments
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • Center-loading media locking for variable roll widths
  • “Clamshell” design for easy media loading
  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch® and Wavelink Avalanche®
  • Large, easy-to-read LCD control panel (240 x 128 pixels)
  • LCD can be customized using WML (text and icons)
  • 5-way navigation buttons, two software defined keys
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 5’/1.52 m to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • 400 MHz 32-bit ARM processor
  • XML support
  • Supports vertical and horizontal printing
  • Printers can be used in any orientation
  • QR barcode links to web-based help pages
  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
  • Label odometer
  • Real-time clock

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

  • 128 MB RAM
  • 256 MB Flash

Max print width: 1.9" (48 mm)
Max print length: 32" (813 mm)
Print speed: up to 4 ips (102 mm/s)


Optional Features
  • Linerless silicone platen with 1.375" inner core
  • BT 3.0
  • 802.11 a/b/n with BT 3.0
  • 10/100 Ethernet support (via docking cable)
  • 4300 mAh (nominal) removable extended capacity Li-ion smart battery
  • ZBI 2.x

Media Characteristics
  • Maximum label and liner width: 2.18" (55.4 mm)
  • Minimum label and liner width: .63" (16 mm)
  • Maximum label and liner length: 32" (813 mm)
  • Maximum roll diameter: 2.2" (55.9 mm)
  • Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
  • Media thickness: 2.3 mil to 5.5 mil
  • Media types: black mark,gap

Programming Lanuages
  • Core programming languages: CPCL and ZPL

Operating Characteristics
  • Operating temperature: -4° F (-20° C) to 122° F (50° C)
  • Storage temperatures: -13° F (-25° C) to 158° F (65° C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% non-condensing
  • Electrical DC charging input: 12 VDC ± 10% at 2A maximum
  • 2.45 AH, 7.4V removable, rechargeable Li-ion battery

Agency approvals
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA

Physical Characteristics

Height: 2.75" (70 mm)
Depth: 6.5" (165 mm)
Weight: 1.25 lbs (.57 kg)


Communication and Interface Capabilities
  • 802.11 a/b/n with BT 3.0
  • Bluetooth 3.0
  • 10/100 Ethernet support (via docking cradle)
  • USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
  • Serial interface: 14-pin RS-232C

barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39

Barcode Giant
