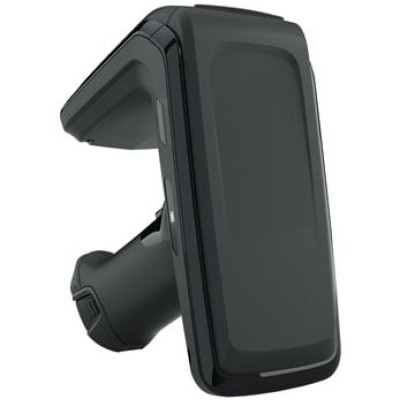

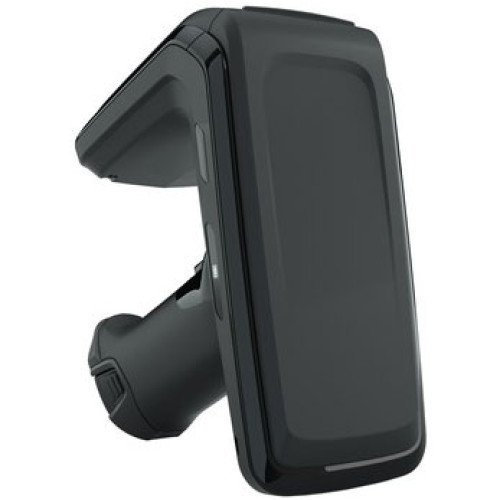

Zebra RFD40 RFID Reader

• Works with the latest Zebra mobile computers, including WWAN models, equipped with eConnex technology for easy snap-and-go pairing.
• Extremely precise item-finder mode ensures fast and easy item location. The tri-function trigger provides quick access to RFID reading, barcode scanning, and a customizable third function.
• Engineered for daily durability with a 5 ft. drop resistance, IP54 sealing for dust and water resistance, and an extended temperature range from -10°C to 50°C/14°F to 122°F.
• Future-ready and designed with easy-to-change, tool-free sled adaptors, facilitating quick adaptor swaps without needing IT retrofitting.
• Seamless transition to the RFD40 Sled is ensured by Zebra’s RFID handheld SDKs, which allow for easy configuration and firmware updates via USB cable or cable cup connection to 123RFID Desktop.

Modern businesses must operate with greater speed and efficiency. The RFD40 UHF RFID Standard Sled offers the advantage needed to outperform competitors. Increase cycle counting efficiency with higher tag reads per second. Expedite inventory processes or easily locate vital assets and patients using the ultra-accurate item-finder mode and tri-function trigger. Seamlessly adapt to new technologies with this advanced sled that integrates with eConnex™-enabled Zebra mobile computers. Long-term, this robust RAIN RFID device will meet all your RFID and data capture demands, providing the flexibility and connectivity needed to quickly adjust to new technologies.

Cutting-Edge Connectivity

Future-proof your workflow with eConnex™ technology’s snap-and-go pairing, supporting even the newest WWAN-enabled Zebra mobile computers. This sled connects instantly to eConnex™-enabled devices like the TC21/26, EC50/55, and future models.

Superior Efficiency

The RFD40 Sled excels with over 1,300 tag reads per second, a 20+ foot read range, and a precise item-finder mode. Its 7000mAh battery and quick-release option, accessing without detaching the mobile computer, ensures prolonged use. The tri-function trigger provides swift access to RFID reading, barcode scanning, and a third customizable function.

Adaptive Functionality

Designed for complete compatibility with current and future Zebra mobile computers, the RFD40 Sled features easy-to-change, tool-free sled adaptors that allow for quick adaptor swaps without IT intervention.

Dependable Durability

Designed to withstand the rigors of daily use, the RFD40 Sled meets a 5-foot drop specification and a 500 cycle 0.5 meter/1.6-foot tumble test. With IP54 sealing for dust and water resistance and an extended operating range of -10°C to 50°C/14°F to 122°F, it ensures reliable performance in tough environments.

Versatile Charging

The RFD40 Sled’s versatile charging options include dual charging pin sets, allowing it to charge alone, or in combination with the mobile computer. Various cradle cups support different combinations, including TC21/26 and EC50/55. Additionally, the USB-C port and pinned connector ensure compatibility with Windows-based PCs via cable, making the RFD40 Sled a tethered RFID reader.

Exceptional Development Tools

Seamlessly transition to the latest devices with minimal application rewrite. The RFD40 Sled SDKs, based on current RFID handheld SDKs, require only a simple recompile of your existing application. Additionally, the RFD40 Sled connects to 123RFID Desktop via USB, enabling live and offline configurations and firmware updates. Ideal for demos, proofs-of-concepts, and setups.

Offline Mode Capability

When real-time connectivity is unavailable, batch mode allows storage of up to 40,000 RFID tag reads. Data can be synced to the host device ensuring no loss of valuable information.

Innovative Cradle Systems

Easily upgrade with Zebra’s innovative cradles. Simple tool-less changes can be made using a coin screw. Available in both single-slot and multi-slot variations, these cradles support both charging-only and communication configurations. Communication-enabled cradles provide micro USB and Ethernet ports for network connectivity, facilitating remote management, configuration, and firmware updates.

Optional Battery Locking

The RFD40 Sled offers an optional Battery Locking Foot that ensures the battery remains securely in place, guarding against accidental damage or theft.

Why Choose Zebra RFID?

Now is the time to incorporate RFID technology. Trust Zebra’s comprehensive and field-proven portfolio for a seamless and risk-free transformation. Tailored to meet your specific environment and applications, Zebra’s RFID solutions are built to enhance your efficiency.

Target Markets and Applications

Retail • Cycle Counting • Item Finding • Planogram Compliance • Returns • Inventory Management • Warehouse Management • Back-of-store Management • BOPIS/BOPAC • Direct Store Delivery • Route Accounting Hospitality • Check-in and Administration • Ticketing: Concerts, sporting events and more • Loyalty Cards • Food Safety and Traceability • Inventory Management • Field Service Healthcare • Specimen Tracking • Patient Tracking • Hospital Asset Management and Tracking • Staff Management and Tracking • Patient Identification and Admission • Medication Administration • Pharmacy Management and Tracking
