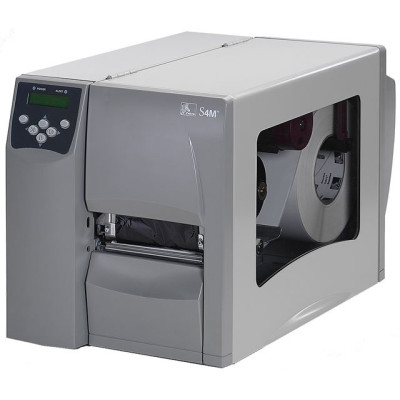

Zebra S4M Barcode Label Printer

The Zebra S4M is designed for budget-minded users who need maximum production.The S4M features both 203 and 300 dpi print resolutions, multiple interface options (including serial, parallel, USB, Ethernet and 802.11b wireless connections).The side-loading design makes adding labels and ribbon fast and easy, and a full 8" label roll capacity means refills are needed less often. The S4M uses a durable metal case, making it ideal for warehouses, shipping and receiving facilities and other locations requiring durable construction.For both thermal transfer and direct thermal printing at a cost-effective price, the Zebra S4M is the ideal choice.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Zebra S4M Specs (pdf)

Zebra S4M Driver (download)

S4M Specifications

Standard Features

Print Methods: Direct thermal and Thermal Transfer (optional)
Construction: Die-cast metal frame with sheet metal enclosure
Metal media cover with enlarged clear window
Element Energy Equalizer (E3) for superior print quality
Back-lit LCD control panel
Parallel, USB 1.1 and RS-232 serial ports

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)

Memory: 4MB Flash, 8MB DRAM

Print width: 4.09"/104 mm

Print length: 203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional)

Print speed: 6" (152 mm)/sec

Media sensors: Reflective
Transmissive

Media Characteristics

Maximum label and liner width: 0.75"/19.4 mm to 4.50"/114 mm

Minimum label and liner width: 0.75" (19.4 mm)

Maximum label and liner length: Maximum non-continuous: 39"/991 mm

Maximum label and liner length (optional): 39" (991 mm)

Core diameter: 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core

Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm

Media types: continuous, die-cut, tag, black mark

Ribbon Characteristics

Outside diameter: 3.2"/81.3 mm

Standard length: 984'/300 m or 1476'/450 m

Ratio: 2:1 media roll to ribbon ratio for 984'/300 m
3:1 media roll ribbon ratio for 1476'/450 m

Ribbon width: 1.57"/40 mm to 4.33"/110 mm

Ribbon setup: Ribbon wound ink-side out

ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature: TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 20% to 85% non-condensing

Storage humidity: 5% to 85% non-condensing

Electrical: Universal auto-ranging (PFC-complaint) power supply 90-265VAC, 48-62 Hz

Agency approvals

IEC 60950
EN 55022 Class B
EN55024
EN 61000-3-2
EN 61000-3-3

Physical Characteristics

Width: 10.7"/272 mm

Height: 11.6" (295 mm)

Depth: 18.8" (477 mm)

Weight: 27.2 lbs (12.4 kg)

Shipping weight: 33.5 lbs (15.2 kg)

Programming Languages

Core programming languages: EPL-Page Mode, ZPL I/ZPL II

Bar codes/Symbologies

Linear: Code 11
Code 39
Code 93
Code 128 with subsets A/B/C and UCC case codes
UPC-A
UPC-E
EAN-8
EAN-13
UPC-A with 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
Planet Code
RSS (reduced space symbology)

2-dimensional: Codablock
Code 49
Data Matrix
MaxiCode
QR Code
MicroPDF417
TLC 39
RSS

Fonts and Graphics

7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
International character sets supporting the following code page: IBM Code Page 850 International character set
Support user-defined fonts and graphics
