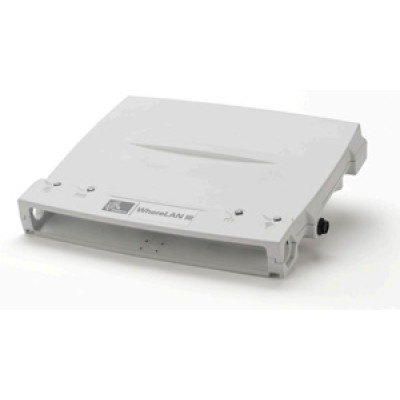

Zebra WhereLAN RFID Reader

Introducing Zebra's WhereLAN location solutions sensors that make it easier and more cost-effective for your customers to deploy Real-Time Location System (RTLS) networks and applications. Part of the Zebra WhereNet family of products, WhereLAN sensors offer unsurpassed accuracy and precision of asset visibility in a wide range of indoor and outdoor environments. Simplifies design, installation, and maintenance of location solutions, especially in heavy-industrial environments. WhereLAN delivers full locate competencies without dedicated time synchronization wiring, complex RF surveys or periodic calibration. Can automatically configure and dynamically adjust to changing RF environments. WhereLAN features an IP55 cast-aluminum enclosure, which allows the product to be deployed in indoor and outdoor environments, such as warehouses, heavy-industrial manufacturing plants, vehicle and trailer yards, and Maritime shipyards.

Starting at: $3,504.04

See all options

Specs & Info
All Options

Introducing WhereLAN III, the core messaging hub of Zebra’s Real Time Locating Systems (RTLS), adhering to the ISO/IEC 24730-2 standard. This advanced sensor intercepts low-power emissions from Zebra’s active RFID tags, named WhereTags, up to a range of 1,750 meters. With sophisticated signal processing capabilities, WhereLAN III measures the time-of-arrival of a WhereTag signal within a sub-nanosecond, achieving an impressive accuracy of up to one meter. This allows for precise tracking and integration of asset locations into your business operations. Additionally, WhereLAN III can interpret event messages from WhereCall button tags used in industrial settings to communicate when parts need replenishment or tasks are completed. The dependable Six-Sigma reliability of the WhereTag signal ensures accurate detection of WhereCall events. All data from WhereTag and WhereCall is relayed to Zebra’s Visibility Server Software (VSS), which determines asset locations and delivers timely, actionable visibility. The server software also offers integration tools to link RTLS data with other customer or third-party systems. Combining VSS with multiple WhereLAN III units provides consistent and accurate asset tracking within your enterprise.WhereLAN III is built with an IP 55 cast-aluminum enclosure suitable for both indoor and outdoor use, including warehouses, manufacturing plants, vehicle yards, and maritime zones. Using state-of-the-art signal processing mechanisms, the product avoids the need for specific time synchronization cabling, offering full locate capabilities. WhereLAN III automatically configures itself to changing Radio Frequency conditions while keeping wireless time synchronization, which removes the need for complex RF surveys and periodic calibrations. This ease of configuration allows you to focus on business operations rather than RTLS network maintenance.Supporting IEEE 802.3af Power-over-Ethernet (PoE), WhereLAN III can also come with optional Wi-Fi client features supporting data transmission via any standard 802.11 b/g Wi-Fi network. With a power draw of just 12 watts, it provides an efficient solar-powered solution for remote settings.For critical asset visibility needs, WhereLAN III is your go-to solution, with Zebra as your trusted global partner.

Features and Benefits

ISO 24730-2 sensor with precise one-meter location accuracy
Wireless synchronization suitable for heavy-industrial use
Efficient power use, supporting IEEE 802.3af PoE and Wi-Fi connectivity
Robust, weather-resistant design for any environment

Zebra WhereLAN Specs (pdf)

Refine Your Options

Zebra WhereNet RFID Reader
Part #: LOS-5000-00AA | SKU: ZEB398538

Location Sensor, wired LAN, POE (NGLS WhereLAN)

Price: $3,504.04

In Stock
Zebra WhereNet RFID Reader
Part #: LOS-5000-00AB | SKU: ZEB398539

Location Sensor, wired LAN, POE, with Wi-Fi (NGLS;WhereLAN)
Zebra WhereNet RFID Reader
Part #: LOS-5000-00CA | SKU: ZEB398540

Location Sensor, wired LAN, POE WhereLan III TAA
Zebra WhereLAN RFID Reader
Part #: LOS-5000-01AA | SKU: ZEB398541

ISO 24730-2 Sensor without wireless Time Synchronization beacons, wired Ethernet connectivity, compliant with 802.3af PoE, allowing input power to be provided by compatible network switch. ISO 24730-2 antenna kit sold separately. Optional pole mounting

Recommended Accessories for Model: Zebra WhereLAN RFID Reader

Zebra DC-101-00 Accessory
Part #: DC-101-00 | SKU: ZEB398566

Replacement LOS/LAP Drip Cover

Price: $40.04

In Stock
Zebra PS-045-00 Power Device
Part #: PS-045-00 | SKU: ZEB398551

90 to 264 VAC (47 to 63 Hz) to 48 VDC power supply, 25 Watts for WhereLAN III and Dart UWB Sensor. Uses standard IEC-320-C14 input inlet for conversion to local wall plug. Includes US style power cord. Other style power cords sold separately. Currently, m
Zebra LP-410-30 Power Device
Part #: LP-410-30 | SKU: ZEB398562

Provides AC power protection only. See separate products for Ethernet protection.
Zebra CBL-015-11 Cables, Connectors, and Adapters
Part #: CBL-015-11 | SKU: ZEB398549

Low Loss Cable assembly to extend a All-Weather Omni, Office Omni or Flat Panel antenna. Use when maximizing range is critical.Includes 2 cable extensions in the kit
Zebra CBK-020-00 Cables, Connectors, and Adapters
Part #: CBK-020-00 | SKU: ZEB398550

A kit consisting of a 9" (22.9 cm) smb to RP-TNC cable, a clamping bracket, and mounting screws. The cable connects to the smb Wi-Fi port on the Sensor. The clamping bracket mounts to the back of the Sensor and holds the RP-TNC connector underneath the
