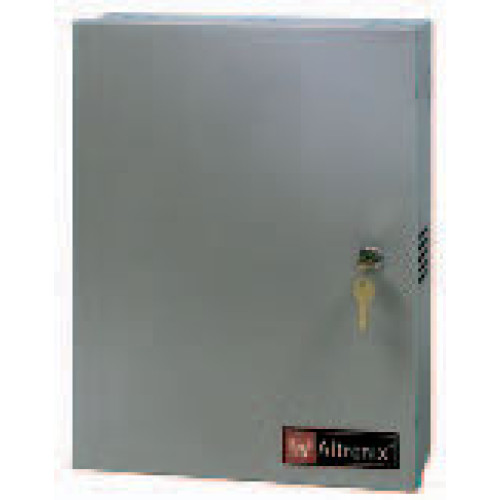

Altronix AL1012ULACM Power Device

The AL1012ULACM Power Supply-Charger converts an 115 VAC 60Hz input into eight (8) independently controlled 12VDC Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an access control system, card reader, keypad, push button, PIR, etc. These units will route power to a variety of access control hardware devices including mag locks, electric strikes, magnetic door holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables emergency egress, alarm monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
