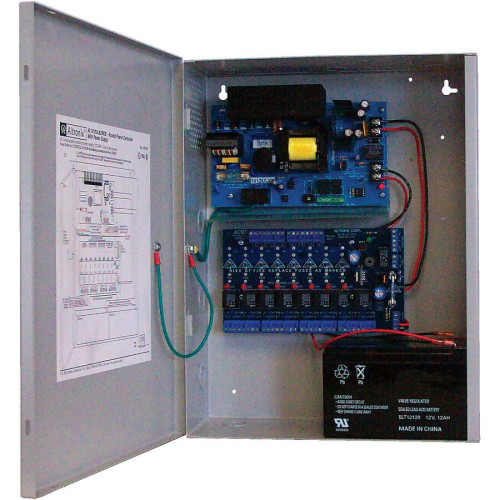

Altronix AL1012ULACM Power Device
Part #: AL1012ULACMCB | SKU: ALT59708

The AL1012ULACM Power Supply-Charger converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Altronix AL1012ULACM Power Device

Part Details: Altronix AL1012ULACMCB Proprietary Power Supply - Wall Mount - 110 V AC Input

Need a different version of the Altronix AL1012ULACM Power Device? View all 2 configurations

MSRP: $657.68 Price: $410.27

In Stock

Additional Information

Manufacturer	Altronix
Model Name	AL1012ULACM

Altronix AL1012ULACM Specs (pdf)

General Information

Product Type: Proprietary Power Supply
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: AL1012ULACMCB
Product Name: AL1012ULACMCB Proprietary Power Supply

Technical Information

Protection Type:
- Thermal Overload
- Short Circuit

Physical Characteristics

Height: 15.5"
Width: 12.2"
Depth: 4.5"
Form Factor: Wall Mount

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Compatibility:
- Fire Alarm System
- Card Reader
- Keypad
- Mag Lock
- Electric Strike
- Magnetic Door Holder

Power Description

Input Voltage Type: AC
Input Voltage: 110 V AC
Input Current: 1.90 A @ 110V
Output Voltage: 12 V DC @ 10 A

Warranty

Limited Warranty: Lifetime

Extended Details

Altronix AL1012ULACM Power Device Part #: AL1012ULACMCB | SKU: ALT59708
