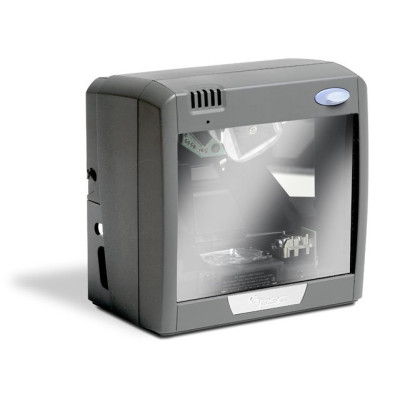

Datalogic Magellan 2200VS Barcode Scanner

Magellan 2200VS Specifications

Mechanical

Height

• 6.0” / 15.2 cm

Width

• 6.0” / 15.2 cm

Depth

• 3.41” / 8.66 cm

Weight

• 2.5 lbs. / 1.1 kg

Optical

• Scan lines: 20
• Rate: 6,000 RPM
• Depth-of-field: 8.0” / 23.3 cm
• Read height: 6.0" / 15.2 cm

Environmental

Temperature rating

• Operating: 50° to 104° F / 10° to 40° C
• Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

• Operating: 5 to 95% NC
• Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

• 90-265 VAC, 47-63 Hz
• 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2200VS autodiscriminates between all of the following supported symbologies

• UPC Versions A&E
• UPC Supplementals (Bookland & Coupon Code)
• UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
• Reduced Space Symbology (RSS-14, expanded and stacked)
• EAN 8, 13
• JAN 8, 13
• EAN/JAN two label
• UCC/EAN 128
• Code 39 (with full ASCII)
• Code 128
• Code 93
• Interleaved 2 of 5
• Standard 2 of 5
• Italian Pharmacode
• Codabar/NW7
• MSI/Plessey

Communications

Host

• Standard RS232, IBM 46XX, IBM USB, USB Keyboard

Other

• Powered RS232 auxiliary port

Safety and Regulatory

Electrical

• EN60 950 (TÜV Europe)
• PSE-Mark (Japan)
• UL 60950 (USA)
• CSA 60950 (Canada)

Emissions

• CISPR22-B (World)
• FCC part 15 Class B (USA)
• VCCI-B (Japan)
• EN 55022-B (Europe)
• NOM (Mexico)

Laser Safety

• CDRH Class IIa (USA/Canada)
• EN 60825-1 Class 1 (Europe)
• IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
• IEC 60825 Class 1 (Europe)

Other

• EAS compatibility
  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint Systems
• Good read acknowledgement with Sensormatic
• OPOS and JPOS Compatible
