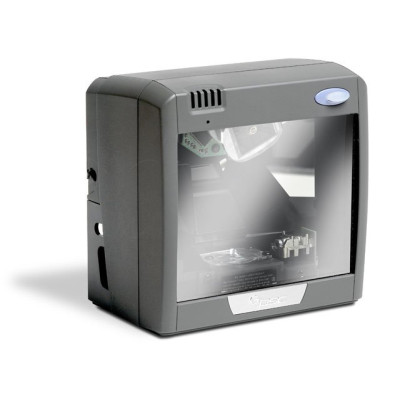

Datalogic Magellan 2200VS Scanner

Datalogic Magellan 2200VS Scanner

The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular bar code symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Starting at: MSRP: $809.00 Price: $456.85
See all options
  • FirstStrike advanced decoding software
  • Aggressive vertical scan volume
  • Optional Productivity Index Reporting software
  • Optional RSS decoding capability
  • Powered auxiliary RS-232 port for easy integration of a handheld scanner
  • Optional EAS functionality
  • Flash memory for easy software upgrades
  • Multiple interface solution supports all popular host interfaces
  • Host diagnostic reporting
Features      Benefits
Best-In-Class Vertical Scan Volume
  • 8% or better throughput performance than the competition
  • Increases productivity by increasing First-Pass-Read-Rates, throughput, and ergonomics
  • The scan pattern is optimized for both sweep and presentation scanning
Leverages Magellan Platform
  • New electronics provide faster data acquisition and processing
  • Magellan 8000 series Value Added Software Features are available to improve POS productivity
  • Symbologies, features, and operating software can easily be upgraded in Flash memory
FirstStrike Decoding Software
  • Faster throughput on industrial symbologies
  • Higher read rate with truncated and poor quality labels
  • All popular retail and supply chain symbologies are supported including RSS decoding
  • Autodiscriminates all supported symbologies
Productivity Index Reporting
  • Helps identify poorly printed labels
  • May lead to improved read rate and throughput
  • Detects poor performing scanners and cashiers
Flash Memory
  • Scanner operating software is easily upgraded
  • Memory can be accessed via the host port (through USB or RS232) or the aux port
  • New features, symbologies, or updates for existing symbologies are easily added
New Speaker Design
  • Speaker design is heard even when ambient noise levels at the POS reach their loudest
  • The four volume increments and three tone settings can easily be adjusted to each cashier’s preference at the touch of a button
RSS Decoding
  • Improved inventory management of produce and meat
  • Reduces the need for cashier training by eliminating manual sku number entry
Host Diagnostic Reporting
  • Early warning of possible impending failures
  • Reduces downtime
  • Improved preventative maintenance

Magellan 2200VS Specifications

Mechanical

Height

  • 6.0” / 15.2 cm

Width

  • 6.0” / 15.2 cm

Depth

  • 3.41” / 8.66 cm

Weight

  • 2.5 lbs. / 1.1 kg

Optical

  • Scan lines: 20
  • Rate: 6,000 RPM
  • Depth-of-field: 8.0” / 23.3 cm
  • Read height: 6.0" / 15.2 cm

Environmental

Temperature rating

  • Operating: 50° to 104° F / 10° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • Operating: 5 to 95% NC
  • Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

  • 90-265 VAC, 47-63 Hz
  • 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2200VS autodiscriminates between all of the following supported symbologies

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14, expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • Standard RS232, IBM 46XX, IBM USB, USB Keyboard

Other

  • Powered RS232 auxiliary port

Safety and Regulatory

Electrical

  • EN60 950 (TÜV Europe)
  • PSE-Mark (Japan)
  • UL 60950 (USA)
  • CSA 60950 (Canada)

Emissions

  • CISPR22-B (World)
  • FCC part 15 Class B (USA)
  • VCCI-B (Japan)
  • EN 55022-B (Europe)
  • NOM (Mexico)

Laser Safety

  • CDRH Class IIa (USA/Canada)
  • EN 60825-1 Class 1 (Europe)
  • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
  • IEC 60825 Class 1 (Europe)

Other

  • EAS compatibility
    • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint Systems
  • Good read acknowledgement with Sensormatic
  • OPOS and JPOS Compatible
Extended Details
Refine Your Options
  1. M2200-00101-0403 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (IBM USB Interface, No EAS with Manual CD)
  2. M22-01 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (Multi-Interface, RSS, Standard Counter Mount, No Cable and No Power supply)
  3. M22-01R - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (Multi-Interface, RSS Standard Counter Mount and No Accessories)
  4. M2200-00101-0100 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (RS-232, Standard Mount and No Accessories)
  5. M2200-00102-0000 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (Multiple Interface, RSS and No AC)
  6. M2200-00111-0100 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (RS-232, Power supply, Standard Mount and No Cable)
  7. M2200-00111-0100A - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (RS-232, US Power supply and No Cable)
  8. M2200-00111-0104 - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, RS-232 serial interface. Includes US Power supply and serial DB9 cable.
  9. M2200-00111-0401R - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (MAG2200VS, IBM/USB, US Power supply, Standard Mount and Cable#8-0732-01)
  10. M2200-00111-0604A - Datalogic Magellan 2200VS Bar code Scanner

    Magellan 2200VS, Vertical Scanner (US Power supply and USB Cable #8-0732-04)

Items 21 to 30 of 48 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
