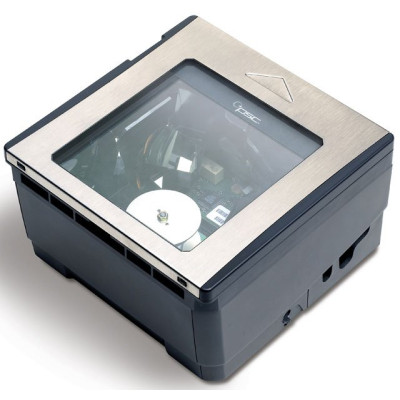

DataLogic Magellan 2300HS Specs
Mechanical
Length
- 6.0” / 15.2 cm
- 6.0” / 15.2 cm
- 3.83” / 9.7 cm
- 2.5 lbs. / 1.1 kg
Optical
Scan lines
- 18
- 6,000 RPM
- 1,800
- 6.0” / 15.3 cm
Environmental
Temperature rating
- Operating: 50° to 104° F / 10° to 40° C
- Storage/transport: -40° to 158° F / -40° to 70° C
Humidity
- Operating: 5 to 95% NC
- Storage/transport: 5 to 95% NC
Electrical
AC Power requirements
- 90-265 VAC, 47-63 Hz
- 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)
Decoding Capability
The Magellan 2300HS autodiscriminates between all of the following supported symbologies
- UPC Versions A&E
- UPC Supplementals (Bookland & Coupon Code)
- UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
- Reduced Space Symbology (RSS-14 expanded and stacked)
- EAN 8, 13
- JAN 8, 13
- EAN/JAN two label
- UCC/EAN 128
- Code 39 (with full ASCII)
- Code 128
- Code 93
- I 2 of 5
- Standard 2 of 5
- Italian Pharmacode
- Codabar/NW7
- MSI/Plessey
Communications
Host
- RS232, IBM 46XX, IBM USB, USB Keyboard
Other
- Powered RS232 auxiliary port
Safety and Regulatory
Electrical
- EN60 950 (TÜV Europe)
- PSE-Mark (Japan); UL 60950 (USA)
- CSA 60950 (Canada)
Emissions
- CISPR22-B (World)
- FCC part 15 Class B (USA)
- VCCI-B (Japan)
- EN 55022-B (Europe)
- NOM (Mexico)
Laser Safety
- CDRH Class IIa (USA/Canada)
- EN 60825-1 Class 1(Europe)
- IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
- IEC 60825 Class 1 (Europe)
Other
EAS compatibility
- Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint® Systems
- Good read acknowledgement with Sensormatic®
