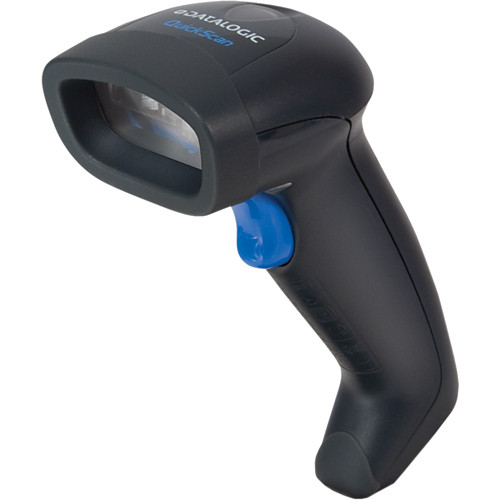

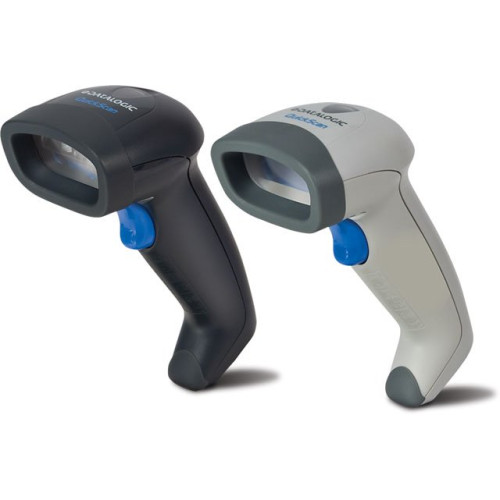

Datalogic QuickScan I QD2100 Barcode Scanner
Part #: QD2130-BKK3S | SKU: DAT60391

The Datalogic QuickScan I QD2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QuickScan I QD2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use. The QuickScan I QD2100 is available with two multi-interface options: RS-232 / IBM 46XX / USB and RS-232 / USB / Keyboard Wedge / Wand and includes various packaging options so that it can be ordered as the scanner only or as a kit equipped with a scanner, cable and stand to facilitate hand-free reading options. The Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Datalogic QuickScan I QD2100 Barcode Scanner

Part Details: Imager (Keyboard Wedge with Keyboard Wedge Cable and Stand) - Color: Black

Need a different version of the Datalogic QuickScan I QD2100 Barcode Scanner? View all 11 configurations

Additional Information

Form Factor	Handheld
Manufacturer AIDC	DataLogic
Model Name	QuickScan I QD2100
Scanner Capability	1D
Scanner Type	CCD, Imager

DataLogic QuickScan I QD2100 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Linear
Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- Postal Codes:
- China Post
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- Postal Codes:
- China Post
- Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
Maximum Scan Resolution: 4 mil
Depth of Field:
- 0.80" - 4.30"@4 mil
- 0.60" - 6"@5 mil
- 0.30" - 10"@7.50 mil
- 0.30" - 15"@10 mil
- 0.70" - 18"@13 mil
- 1" - 26"@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: QD2130
Product Name: QuickScan QD2130 Handheld Barcode Reader
Product Line: QuickScan

Physical Characteristics

Height: 6.7"
Width: 2.6"
Depth: 2.8"
Color: Black
Weight (Approximate): 4.30 oz

Interfaces/Ports

Host Interface: Multi-interface

Extended Details
