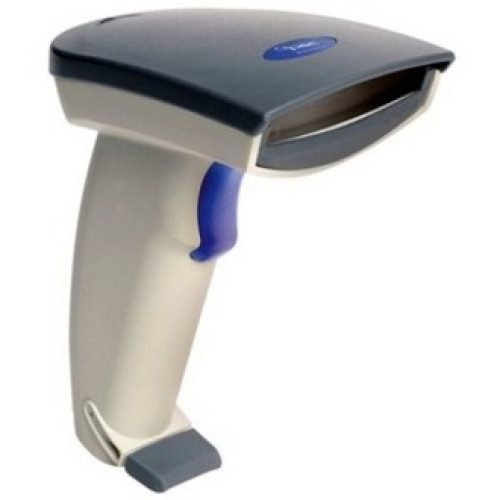

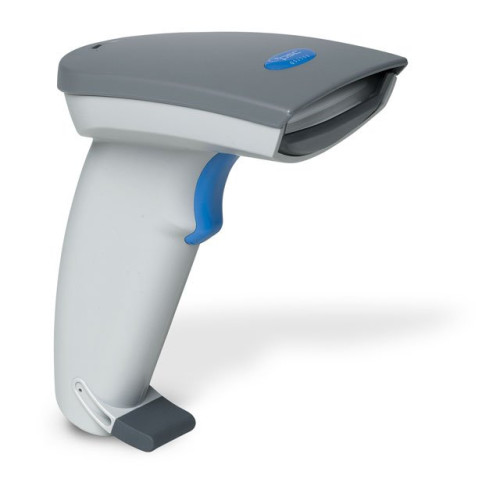

Datalogic QS2500 Barcode Scanner
Part #: QS25-1100-00 | SKU: DAT6044

The QuickScan QS2500 Linear Imager Handheld Scanner is the newest member of the QuickScan product family. For retail office and light-industrial applications the QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and a mid-range depth-of- field. And the QS2500 also reads poorly printed bar code labels quickly and easily.Loaded with Features for Today and TomorrowThe QS2500 is capable of reading a wide range of bar code symbologies including Reduced Space Symbology (RSS) and PDF417 allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades along with programming and label editing. Its enclosure is lightweight and ergonomic and has an available hands-free tabletop stand.

Datalogic QS2500 Barcode Scanner

Part Details: QuickScan QS2500 Linear Imager (RS232 - Scanner Only)

Need a different version of the Datalogic QS2500 Barcode Scanner? View all 15 configurations

Additional Information

Manufacturer AIDC	DataLogic
Model Name	QS2500
Scanner Capability	1D

DataLogic QS2500 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 5 mil(s)
Symbologies Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- JAN-8
- JAN-13
- Code 128
- Codabar
- Pharmacode 39
- Code 39
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- Code 11
- Code 16K
- UK Plessey
- MSI/PLESSEY
- Telepen
- RSS-14
- RSS-14 Expanded
- RSS-14 Limited
- RSS-14 Stacked
- RSS-Limited
- PDF417 with Audio Assist
Scanner Type: Linear Imager
Scan Rate: 200 scans/sec
Interface Options:
- RS-232
- Keyboard Wedge
- Wand Emulation
- USB
- IBM 46XX
- IBM USB
Interface Connectivity: Corded
Input Voltage: 5 V DC
Depth of Field:
- 1.0 - 4.5"@5mils
- 0.5 - 8.5"@10mils
- 0.5 - 11.0"@13mils - 100% UPC
- 1.0 - 16.0"@20mils
- 2.0 - 28.0"@40mils

General Information

Manufacturer: PSC Inc.
Product Line: QuickScan
Product Name: QuickScan QS2500 Barcode Scanner

Physical Characteristics

Dimensions: 7.3" (185.42mm) x 2.9" (73.66mm) x 4.5" (114.3mm)
Weight: 6.3 oz

Agency Approvals

Agency Approvals:
- UL
- cUL
- FCC-A
- EN 55022-B
- VCCI-B
- IEC 60825 Class 1 LED
- Complies to EU RoHS

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
