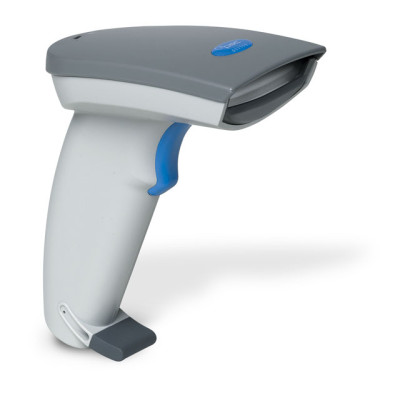

DataLogic QS2500 Specs
QS2500 Ideal for:
- Retail Applications
- Health Care
- Inventory
- Office Automation
- Document Tracking
- Light Industrial
QS2500 Features:
- Agressive reading and an extended depth-of-field
- Reads Reduced Space Symbology (RSS), PDF417 and linear codes for flexibility
- Ergonomic "aim and shoot" design
- Reliable and durable providing long lasting performance
Performance That You Expect From PSC The QS2500 is ideal for retail, office, and light-industrial applications. The QS2500's 200 scans-per-second linear imager scan engine provides snappy reading performance and an extended depth-of-field. And the QS2500 also reads poorly printed bar code labels quickly and easily.
Loaded with Features for Today and Tomorrow The QS2500 is capable of reading a wide range of bar code symbologies, including Reduced Space Symbology (RSS) and PDF417, allowing you flexibility in reading now and in the future. It also features flash memory for easy software upgrades, along with programming and label editing. Its enclosure is lightweight and ergonomic, and a hands-free tabletop stand is available.
Outstanding Durability and Reliability The QS2500 's Linear Imager scan engine has no moving parts and will reliably read for years to come. It withstands 5' (1.5m) drops to concrete and has an IP42 sealing rating to protect it in most indoor applications. In addition, the QS2500 utilizes the same high-quality interface cables shared by other PSC handhelds, including the rugged PowerScan™ industrial handheld scanner. And the QS2500 is backed by PSC's five-year factory warranty on the scanner, and a one-year warranty on PSC interface cables.
Exceptional Value The QS2500 is loaded with performance, features and reliability all at a surprisingly low price. Its three-year warranty and low purchase price minimize your cost of ownership. The QS2500 is an exceptional value!
QS2500 Specifications
Mechanical
Length
- 4.5" / 11.4 cm
Width
- 2.9" / 7.4 cm
Height
- 7.3" / 18.5 cm
Weight
- 6.3 oz. / 179 g (cable not included)
Optical
Light source
- 660 nm Visible Red Diode
Scan rate
- 200 scans/sec.
Scan width
- 4.0" / 10.2 cm at 5.0" / 12.7 cm from the label
Depth-of-Field Printing resolution, contrast and ambient light dependent
|
QS2500 Resolution
- 5 mils / 0.13mm
Print contrast ratio
- 25% or higher
Pitch
- ±60°
Skew
- ±75°
Scan angle
- 46°
Ambient light immunity
- Artificial & sunlight: 6,968 foot-candles / 75,000 Lux
Electrical
Operating current
- Operating: 225 mA @ 5 VDC
- Standby: 100 mA @ 5 VDC
Environmental
Temperature
- Operating: 32° to 113° F / 0° to 45° C
- Storage: -22° to 149° F / -30° to 65° C
Humidity
- 5 to 95% NC
Shock
- Withstands ten 5.0' / 1.5 m drops onto concrete
Physical shock
- 1500 g, 1 ms
Water & Dust
- Resistant, IEC 60529 rating IP42DW
ESD protection
- Functional after 15kV discharge
Communications
- RS-232
- Keyboard Wedge/Wand Emulation
- USB (standard keyboard type)
- IBM 46XX
- IBM USB
QS2500 Decoding Capability – Autodiscriminates
- UPC A, E / EAN 8,13 / JAN 8, 13 (including add-ons P2 / P5, Code 128)
- Code 128
- Codabar
- Pharmacode 39
- Code 93
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- Code 39
- Code 11
- Code 16K
- UK/Plessey
- MSI/Plessey
- Telepen
- RSS 14
- RSS-14 Stacked
- RSS-14 Expanded
- RSS Limited
- PDF417 w/audio assist
Safety & Regulatory
Electrical- Complies to:
- Gost R
- TÜV
- UL
- cUL
QS2500 Emissions - Complies to:
- FCC-A
- EN 55022-B
- BCIQ CNS 13438
- AS/NZS 3548
- VCCI-B
-
