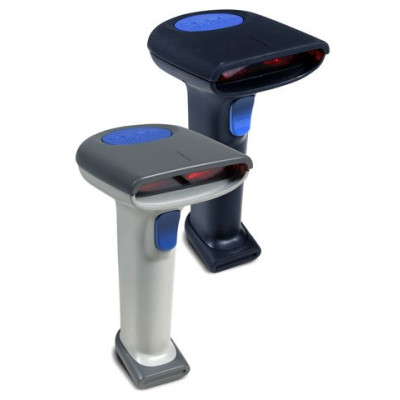

Datalogic QS6500 Barcode Scanner

QuickScan QS6500 Linear Imager Features

• Aggressive linear imaging performance with
  up to 14" reading on 100% UPC labels
• Supports RSS and PDF-417 for future industry
  compatibility
• 2005 Sunrise compliant
• Multi-interface solution supports all popular
  host terminal interfaces
• Flash memory for easy software upgrades
• Built tough to withstand common POS
  abuse for many years
• Attractive, yet durable design to complement
  your point-of-sale

The QuickScan QS6500 is PSC’s newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan QS6500 offers the best price/performance in the market.

The QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF bar code reading, bright targeting beam, and superior durability and reliability.

QuickScan QS6500 Specifications

Mechanical

Dimensions

• Height: 6.0" (16.5cm)
• Width: 2.9" (7.4cm)
• Length: 3.9" (9.9cm)

Weight

• 6.4 oz. (181.4 g)

Electrical

Operating Voltage

• +4.5 to 14VDC ±5%

Operating Current

• 300mA @ 5VDC

Idle Current

• 200mA @ 5VDC

Environmental

Temperature Rating

• Operating: 32° to 122° F (0° to 50°C)
• Storage: -40° to 158° F (-40° to 70° C)

Humidity

• Operating: 5 to 95% NC
• Storage/Transport: 5 to 95% NC

Ambient Light Immunity

• Artificial & Sunlight: 86,000 Lux

Shock

• Multiple 5’ (1.5m) drops to concrete

Water & Dust

• Sealed to resist airborne dust & particulates

Communications

• RS-232
• Keyboard Wedge
• IBM 46XX
• IBM USB
• USB

Optical

Light Source

• 630nm Visible Red Diode

Scan Rate

• 450 scans/sec max

Sensor

• 2048 pixel linear imager

Scan Width

• 6.3" (16.5cm) @ 7" (17.8cm) from nose

Resolution

• 5 mils (.13mm)

Print Contrast

• 30% or greater

Pitch

• ±60°

Skew

• ±55°

Depth of Field*

*Depth of Field specifications are for 1D models only. PDF models will have slightly shorter Depth of Field ranges.
** Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.

Decoding Capability

1D Versions

• UPC A, E / EAN 8, 13 / JAN 8, 13
• Add-ons (sub 2 or P2, sub 5 or P5 & C128)
• RSS-14, Expanded, Stacked, Limited
• ISBN / Bookland EAN
• Code 39 (with full ASCII)
• Pharmacode 39
• Code 128
• Code 93
• Interleaved 2 of 5
• Standard 2 of 5
• IATA
• Code 16K
• Code 11
• Codabar/NW7
• UK/Plessey
• MSI/Plessey

PDF Models support these additional symbologies:

• RSS / UCC / EAN Composites
• PDF-417
• Micro-PDF

Safety & Regulatory

Electrical: Complies to:

• EN60950
• CSA60950
• UL60950

Emissions: Complies to:

• FCC-A
• EN 55022-B
• BSMI 13438
• AS/NZS 3548
• VCCI-B
• ICES-003
