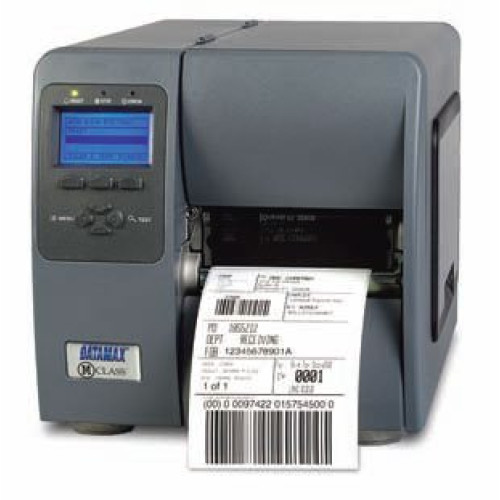

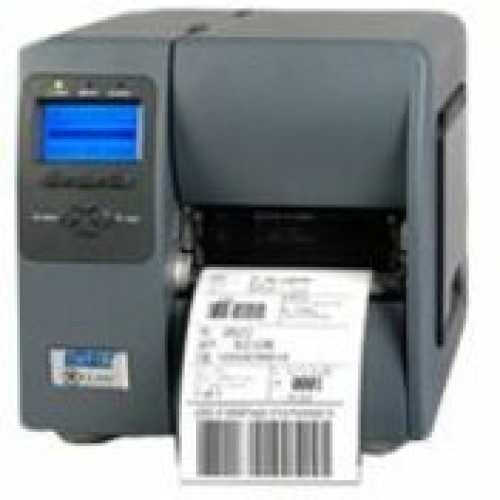

Datamax-O'Neil M-4210 Barcode Label Printer
Part #: KJ2-00-08000007 | SKU: DAT34641

The solid die-cast metal construction, large graphical display and modular design set the M-4210 a step above its competitors. The printer's solid cast metal chassis and durable steel cabinet offer rugged and reliable performance. The easy-to-use graphical display makes navigation through the menus quick and simple for any level user. The modular design offers the flexibility to quickly replace parts in the field or install options to meet changing business requirements.

Datamax-O'Neil M-4210 Barcode Label Printer

Part Details: M-4210, M4210 II Direct thermal Printer (203 dpi and 10 ips Print speed)

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer Datamax-O'Neil
Max Print Width 4.75 inch
Max Roll Outer Diameter 8
Model Name M-4210
Print Resolution 203 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Direct Thermal
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Tear-off
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4210
  • Product Name: M-Class Mark II M-4210 Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Continuous Tag
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL
    • FCC Class A emissions standard
    • CE Mark

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: DPL
Extended Details
