model-737 Elo

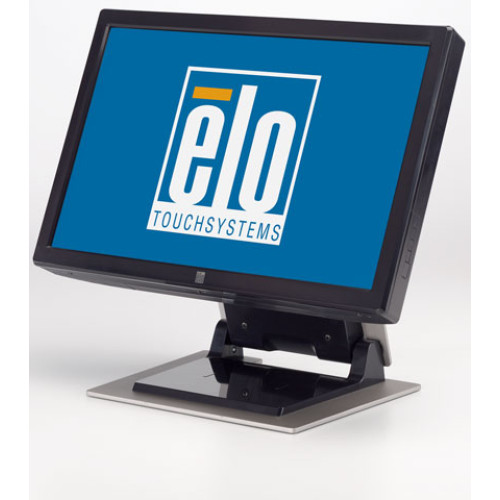

Elo 2200L Touch screen

Elo 2200L Touch screen

The ELO 2200L touchmonitor senses touch on the display by recognizing the unique pattern of sounds. Consisting only of a glass overlay mounted in front of the LCD panel, the 2200L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face. Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.
See all options
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • "Designed for touch" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display "" designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (Asia/Pacific models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration
Model 2200L
Case/bezel color Dark gray or beige
Display Size: 22.0" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 16 x 10
Useful screen area Horizontal: 18.65" (473.76 mm)
Vertical: 11.66" (296.1 mm)
Monitor dimensions
(with stand)
Width: 20.31" (515.76 mm)
Height (max.) : 15.79" (401.01 mm)
Depth (max.) : 13.48" (342.5 mm)
Optimal (native) resolution 1680 x 1050
Other supported resolutions 1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 Hz
Colors 16.7 million
Brightness LCD panel: 300 cd/m2 (typical)
with APR: 270 cd/m2 (typical)
with IntelliTouch: 270 cd/m2 (typical)
Response time 5 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ±80° or 160° total
Vertical (up/down): ±80° or 160° total
Contrast ratio 1000:1 (typical)
Input video format RGB analog video; DVI video (Standard European models without DVI)
Input sync format Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector 15-pin female D-Sub for analog video; female DVI-D for digital video
Input frequency Horizontal: 30-83 kHz
Vertical: 56-76 Hz
Power supply Internal monitor input voltage: 100-240 VAC, 50/60 Hz
External monitor input voltage: 12 VDC ±5%
Power draw 75W max., 44 W typical (at 120V/60Hz)
75W max., 40.9 W typical (at 12Vdc/60Hz)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity Operating: 20%-80%
Storage: 10%-90%
noncondensing
Altitude Operating: 0 to 3658 m (12,000 ft)
Non-operating: 0 to 12192 m (40,000 ft)
Weight with stand
(approx.)
Actual: 22.2 lb (10.07 kg)
Shipping: 30.0 lb (13.63 kg)
Weight without stand
(approx.)
Actual: 15.0 lb (6.79 kg)
Warranty Monitor: 3 years
Backlight lamp life: 40,000 hours min.
MTBF (excluding lamps): 50,000 hours demonstrated
Agency approvals North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
EMEA: Russia PCT, Germany GS
Asia: Australia C-Tick, China CCC, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE
Speakers Two 2W internal speakers
Audio input connector 3.5mm TRS jack
Headphone output connector 3.5mm TRS jack
On-screen display (OSD) Digital OSD
User's controls OSD buttons: menu, up, down, select, power
OSD: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), recall defaults, sharpness, volume, mute, input video select
OSD disable/enable: power, OSD
Mounting options Removable base
Threaded-through mounting holes, under base
100 mm VESA mount
Other features Security lock receptacle
Can be used in portrait or landscape mode
Extended Details
Refine Your Options
  1. E376396 - Elo 2200L Touch screen

    2200L, 22 INCH WIDE LCD, ACOUSTIC PULSE RECOGNITION, USB CONTROLLER, Anti-glare, DVI
  2. E407198 - Elo 2200L Touch screen

    2200L, 22" LCD DESKTOP TOUCHMONITOR, INTELLITOUCH, DUAL USB/SERIAL TOUCH INTERFACE AND ANTI-GLARE SURFACE, GRAY, ADDED PRIVACY FILTER, NON-CANCELABLE, NON-RETURNABLE
  3. E432721 - Elo 2200L Touch screen

    2200L, 22" LCD Desktop Touchmonitor (IntelliTouch (surface wave) Touch Technology, dual USB/serial touch Interface and Anti-glare Surface Treatment) - Color: Gray
  4. E123233 - Elo 2200L Touch screen

    2200L, 22 inch LCD Desktop Touchmonitor (IntelliTouch Touch Technology, dual USB/serial touch Interface and Anti-glare Surface Treatment) - Color: Beige
  5. E946245 - Elo 2200L Touch screen

    2200L, 22" LCD Desktop Touchmonitor (Acoustic Pulse Recognition Touch Technology, USB Touch Interface and Anti-glare Surface Treatment) - Color: Gray
  6. E170919 - Elo 2200L Touch screen

    2200L, 22 inch LCD Desktop Touchmonitor (Accoustic pulse recognition (Acoustic Pulse Recognition) touch technology, USB Touch Interface and Anti-glare Surface Treatment) - Color: Beige
