54066 Elo

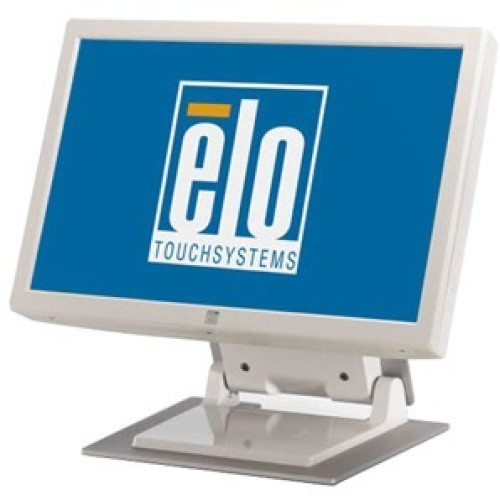

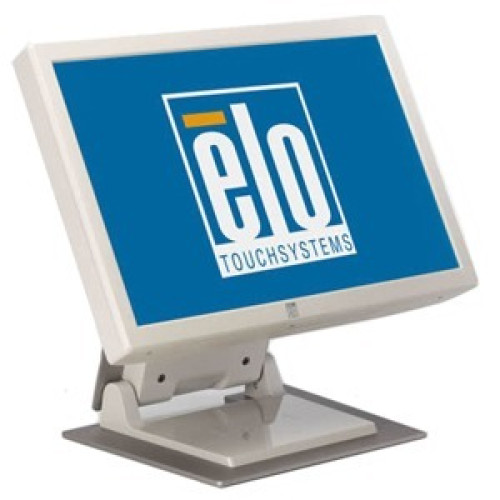

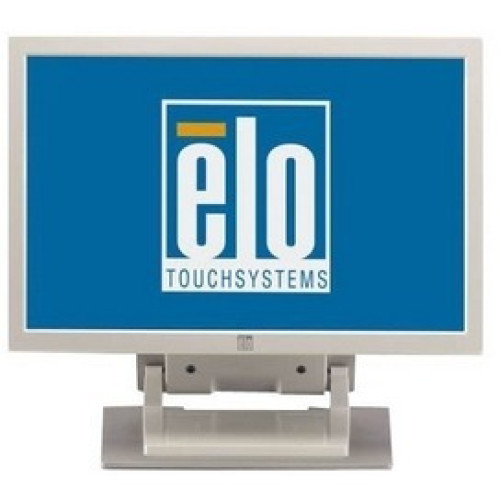

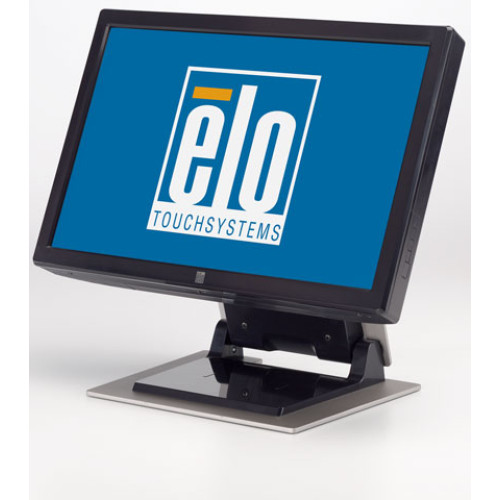

E432721 - Elo 2200L Touch screen

2200L, 22" LCD Desktop Touchmonitor (IntelliTouch (surface wave) Touch Technology, dual USB/serial touch Interface and Anti-glare Surface Treatment) - Color: Gray


The ELO 2200L touchmonitor senses touch on the display by recognizing the unique pattern of sounds. Consisting only of a glass overlay mounted in front of the LCD panel, the 2200L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face. Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • \"Designed for touch\" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display \"\" designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (Asia/Pacific models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration

Additional Information

Item Condition New
Manufacturer Elo

Recommended Accessories

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WSXGA+
  • Mount Type: Wall Mountable
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2200L
  • Product Name: 2200L Desktop Touchscreen LCD Monitor

Physical Characteristics

  • Weight with Stand (Approximate): 22.20 lb
  • Height with Stand: 15.79"
  • Width with Stand: 20.31"
  • Depth with Stand: 13.48"
  • Color: Gray
  • Weight (Approximate): 15 lb


  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • Headphone: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Package Contents:
    • 2200L Desktop Touchscreen LCD Monitor
    • AC power cable
    • Detachable touch Cable
    • Audio Cable
    • Power Cable
    • Video Cable
    • 2200L Desktop Touchscreen LCD Monitor
    • AC power cable
    • Detachable touch Cable
    • Audio Cable
    • Power Cable
    • Video Cable
  • Additional Information: Standard-bezel IntelliTouch: 270 cd/m2 (typical)


  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave


  • Limited Warranty: 3 Year
