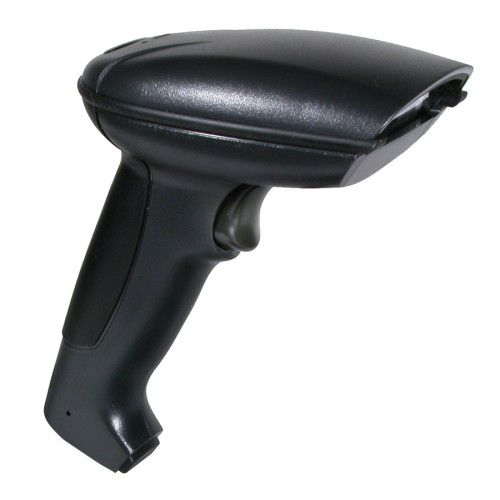

Hand Held ImageTeam 3800 Barcode Scanner Hand Held ImageTeam 3800 Barcode Scanner Hand Held ImageTeam 3800 Barcode Scanner

Hand Held ImageTeam 3800 Barcode Scanner
Part #: 3800LR-12 | SKU: HAN15834

The ImageTeam 3800 is a high performance handheld barcode scanner. Using unique linear imaging technology the ImageTeam 3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The ImageTeam 3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The ImageTeam 3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The ImageTeam 3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held ImageTeam 3800 Barcode Scanner

Part Details: ImageTeam 3800, Decoded Output, Commercial Interface and No User Guide
Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 28 configurations

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 3800
Scanner Capability 1D
Hand Held ImageTeam 3800 Specs Hand Held ImageTeam 3800 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • PDF 417
    • Codabar
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • China Postal Code
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Options: Commercial Interface
  • Interface Connectivity: Corded
  • Depth of Field:
    • 2.5 - 4"@3mils
    • 2 - 7.5"@7.5mils
    • 1 - 9.5"@13mils

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 3800LR Barcode Scanner

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED
    • Class 1
    • UL
    • cUL listed
    • TUV

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)
Extended Details

Recommended Accessories for Model: Hand Held ImageTeam 3800 Barcode Scanner

  • Honeywell Accessories Accessory
    Part #: HFSTAND7E | SKU: HON21833

    Black flex-neck stand for 1300g or 3800g. 10" height, weighted base. Non-Cancellable and Non-Returnable
    MSRP: $59.71 Price: $43.35
    In Stock

  • Honeywell Cables Cables, Connectors, and Adapters
    Part #: 42206431-01E | SKU: HON51502

    USB, black, Type A, 3.4m (11.1') coiled, host power (Use w/3800VHD-ESD-12E. Not compatible with 3800g)
    MSRP: $151.61 Price: $109.99
    In Stock

  • Honeywell ImageTeam 3800 Cables, Connectors, and Adapters
    Part #: 42203764-03E | SKU: HON28297

    Wand Emulation, Power on Pin 9 Connector: D 9 PIN Squeeze Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
    MSRP: $56.66 Price: $42.15

  • Honeywell ImageTeam 3800 Cables, Connectors, and Adapters
    Part #: 42205978-01E | SKU: HON24921

    HHLC/laser emulation Connector: D 9 PIN Squeeze Length: 6.8 ft. (2.0m), coiled. Non-Cancelable/Non-Returnable.
    MSRP: $120.15 Price: $88.56

  • Honeywell 3800i Mounting Hardware and Stands
    Part #: VMHOLDERE | SKU: HON28401

    Vehicle-Fork Lift Holder for the 3800 and 4800; RoHS. Non-Cancelable/Non-Returnable.
    MSRP: $73.91 Price: $53.61
