Additional Information
| Manufacturer AIDC | Hand Held |
|---|---|
| Model Name | ImageTeam 5600 |
| Scanner Capability | 1D |
| Scanner Type | Imager |

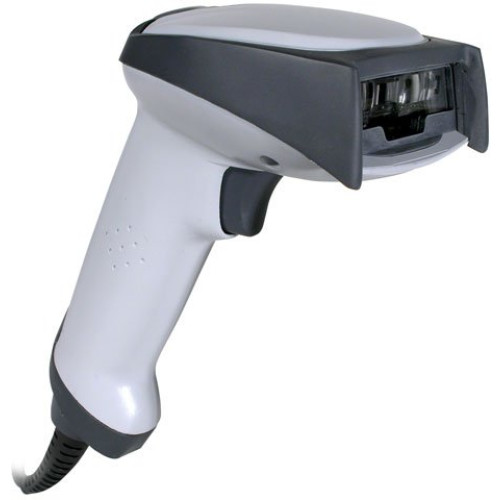

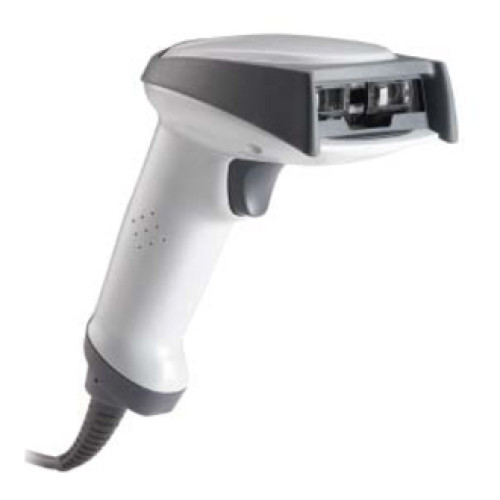

Hand Held ImageTeam 5600 Specs
Technical Information
- Scan Rate: 270 scan/s
- Connectivity Technology: Cable
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Codabar
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Codabar
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 4" - 14"@7.50 mil
- 1" - 24"@13 mil - 100% UPC
- 1" - 36"@20 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: 5600
- Product Name: IMAGETEAM 5600 Barcode Reader
- Product Line: IMAGETEAM
Physical Characteristics
- Height: 6.2"
- Width: 3.2"
- Depth: 5.3"
- Color: Gray
- Weight (Approximate): 6.50 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Package Contents:
- IMAGETEAM 5600 High Performance Retail Linear Imager
- Keyboard Wedge Mini Din Cable
- User's Guide
- IMAGETEAM 5600 High Performance Retail Linear Imager
- Keyboard Wedge Mini Din Cable
- User's Guide
- Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Safety:
- Class 1
- UL
- cUL listed
- TUV
- Platform Supported: PC
- Additional Information:
- Supported Interfaces:
- Keyboard WedgeSerialUSB
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 12 V DC
Recommended Accessories for Model: Hand Held ImageTeam 5600 Barcode Scanner
-
Honeywell ImageTeam 4800 Cables, Connectors, and Adapters
Part #: 42206161-01E | SKU: HON24928USB, black, Type A, 2.6m (8.5'), straight, host powerMSRP: $29.87 Price: $26.95 -
Honeywell Cables Cables, Connectors, and Adapters
Part #: 42205895-01E | SKU: HON24918RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS-2 keyboard/mouse port. Non-Cancelable/Non-Returnable.MSRP: $91.54 Price: $67.47 -
Honeywell Cables Cables, Connectors, and Adapters
Part #: 42206132-02E | SKU: HON24926AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled -
Honeywell Accessories Scanner Accessories
Part #: HFSTAND5E | SKU: HON24998Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning) -
Honeywell ImageTeam 4800 Accessory
Part #: 42206212-02E | SKU: HON24932Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
