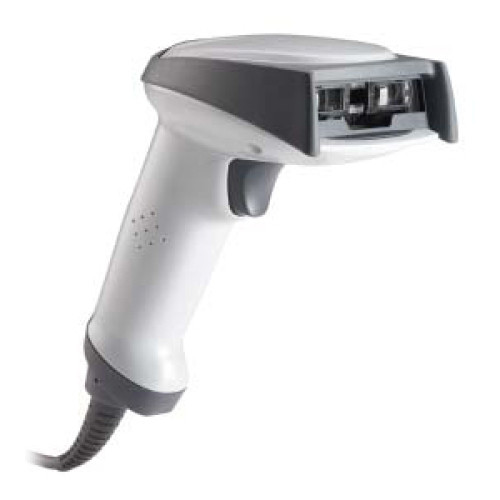

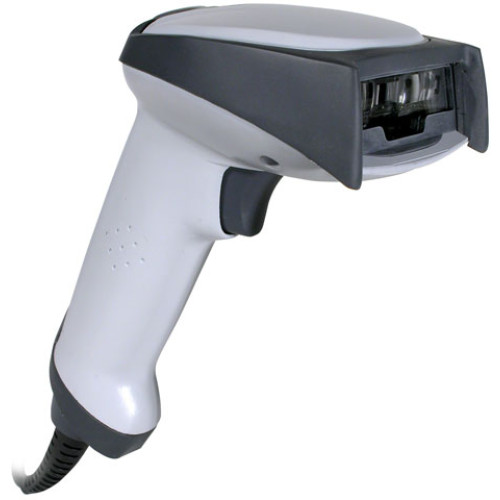

Hand Held ImageTeam 5600 Barcode Scanner Hand Held ImageTeam 5600 Barcode Scanner Hand Held ImageTeam 5600 Barcode Scanner

Hand Held ImageTeam 5600 Barcode Scanner
Part #: 5600SR150-0F00 | SKU: HAN15849

Hand-Held's exclusive imaging technology provides breakthrough performance in the ImageTeam 5600 linear image. The most powerful linear imager ever produced, the ImageTeam 5600 excels at read range, reading poor quality barcodes, and is extremely durable. The ImageTeam 5600 has a read range out to 24 inches on barcodes used in retail applications making this a good choice for POS applications where heavy or bulky items are being scanned. The ImageTeam 5600 is built to last, with full perimeter bumpers, GE Lexan housing and a 5 year warranty. The ImageTeam 5600 linear imager goes the distance in today's retail and commercial applications.

Hand Held ImageTeam 5600 Barcode Scanner

Part Details: ImageTeam 5600, commercial and retail linear imager with USB interface. Includes user's guide, UHOLDER and Commercial USB Cable - 42206161-01. Color: Black
Need a different version of the Hand Held ImageTeam 5600 Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 5600
Scanner Capability 1D
Scanner Type Imager
Hand Held ImageTeam 5600 Specs Hand Held ImageTeam 5600 Specs (pdf)

Technical Information

  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • Code 25
    • China Postal Code
    • RSS
    • GTIN Compliant
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • Code 25
    • China Postal Code
    • RSS
    • GTIN Compliant
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 4" - 14"@7.50 mil
    • 2" - 18"@10 mil - 80% UPC
    • 1" - 24"@13 mil - 100% UPC
    • 1" - 36"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 5600
  • Product Name: IMAGETEAM 5600 Barcode Reader
  • Product Line: IMAGETEAM

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Black
  • Weight (Approximate): 6.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • 5600 Handheld Barcode Reader
    • Straight Commercial USB cable
    • User's guide
    • 5600 Handheld Barcode Reader
    • Straight Commercial USB cable
    • User's guide
  • Certifications & Standards:
    • Emissions:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • Laser classification:
    • IEC60825-1 Class 1
    • Electrical:
    • UL
    • cUL listed
    • TuV
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • TTL level RS-232USBKeyboard WedgeWand EmulationTTL level Serial WedgeIBM 46XX

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 12 V DC
Extended Details
