model-3697 Hand Held

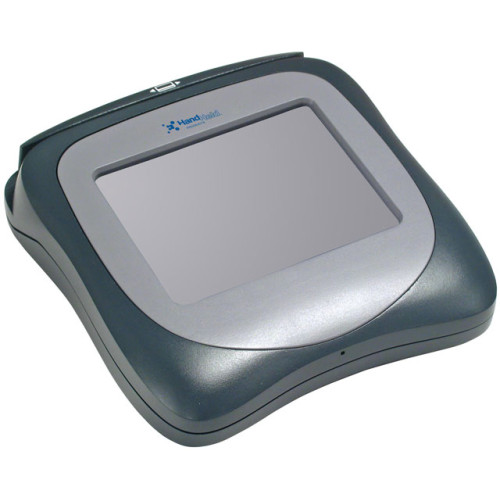

Hand Held TT8500 Signature Pad

Hand Held TT8500 Signature Pad

The TT8500 comes standard with features that are not available or cost extra with other terminals. Powered USB, 4MB flash, 16MB of RAM, and a 3-track magnetic stripe card reader are standard. Choose a color LCD, additional memory, USB host, and 10/100 Base T Ethernet factory options. Not another gray box, the TT8500's innovative design is ergonomic, durable, and friendly to use in a small footprint.
See all options
  • Card Reader - The bidirectional, 3-track magnetic stripe reader ensures a high read rate and customer ease-of-use.
  • Color or Monochrome LCD - Your choice of a vibrant color or crisp monochrome LCD gives impact to the messages you want your customers to notice.
  • Communication - Abundant choices for powerful connections to your legacy and state-of-the-art systems.
  • Ethernet Channel - Simultaneous communications to an Ethernet port off-loads high bandwidth transmissions.
  • Exciting Design - Functional and ergonomic design for fast, accurate transactions.
  • Field Replaceable Screen Protector - Designed and tested for the retail environment with a low cost, passive, tethered stylus, and replaceable screen protector.
  • SDK - Build custom, secure applications using Handheld Products' proven development environment.
  • Security - Visa PED approved with a dedicated security processor. Customer PINs are secured with industry standard encryption.
  • True Finger Touch - A light finger touch or tap of the stylus is all that is needed to activate the TT8500.

Transaction Team 8500 Specifications

Display/Signature Window
Signature Window: Resistive, transparent, pressure-sensitive touch screen

LCD Size: 4.45 x 3.3 in. (11.3 x 8.4 cm) (Active area)

LCD Resolution: 320 x 240 dot, 16 bit color (optional)

Touch Pad Resolution: 903 x 1238 ppi

Communications

RS-232: 4800 to 115.2 Kbps

RS-232 Pass-Through: Using Aux. Y cable with AC power adapter

RS-485: Using 9A, 9B, 4B connectors (no power adapter)

PC USB: AC power adapter required

USB Hub Host: 5V DC power pass-through, support for USB 1.1 and 2.0 for up to 16 devices (optional port)

IBM Retail USB: SurePOS compatible (no power adapter)

Ethernet 10/100 BaseT: Optional port. Cable not supplied.


Memory

Flash: 4MB to 16MB
SDRAM: 16MB to 64 MB

Dimensions (reference)

Width: 7.3 in. (18.5 cm)

Depth: 7.56 in. (19.2 cm)

Height: 2 in. (5.1 cm)

Weight: 2 lb. (.9 kg)

Power Requirements

Current Draw: 700 mA @ 12VDC
Source: 120V AC adapter or powered host terminal port

Optional Software Development Kit

Operating Systems: Microsoft

Extended Details
Refine Your Options

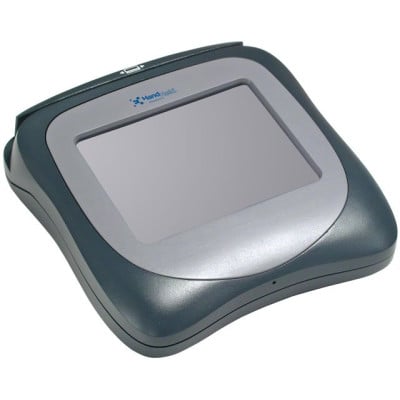

  1. TT8500-CNU - Honeywell TT8500 Signature Pad

    TT8500, Color, 3-Track MSR, Host USB, Unit only
  2. TT8500-MNK4110 - Honeywell TT8500 Signature Pad

    TT8500, Signature Capture Terminal, USB Interface, Monochrome LCD, Cable and Power
  3. TT8500-ME - Honeywell TT8500 Signature Pad

    TT8500, Transaction Team 8500 Signature Capture Terminal (Monochrome, 3-Track MSR and Ethernet - Unit Only)
  4. TT8500-MEU - Honeywell TT8500 Signature Pad

    TT8500, Monochrome LCD, 3 Track MSR, Ethernet, HST USB, Desktop
  5. TT8500-MEUE - Honeywell TT8500 Signature Pad

    TT8500, Monochrome LCD and Transact 3-Track MSR, Ethernet and USB
  6. TT8500-MEUEKITE - Honeywell TT8500 Signature Pad

    TT8500, Monochrome LCD, RS-232 Cable, Power supply, Signature Capture, MSR.
  7. TT8500-MNE - Honeywell TT8500 Signature Pad

    TT8500, Monochrome LCD and 3-Track MSR
  8. TT8500-MNE3KITE - Honeywell TT8500 Signature Pad

    TT8500, Monochrome LCD, RS-232, Cable and Power
  9. TT8500-MEUK3110 - Honeywell TT8500 Signature Pad

    TT8500, Ethernet and USB, Monochrome LCD, RS-232 Cable and Power
  10. TT8500-MNK3110 - Honeywell TT8500 Signature Pad

    TT8500, RS-232, Monochrome LCD, True Finger Touch, Signature Capture, Virtual Pin Pad, MSR Card Reader for Tracks 1, 2 and 3, Stylus, Holder, 12 ft. Interface Cable, Screen Protector System and Power supply
