Newer Version Is Available

TT8500, Monochrome LCD and Transact 3-Track MSR, Ethernet and USB
Free Shipping

Product was successfully added to your shopping cart.
38329 Honeywell

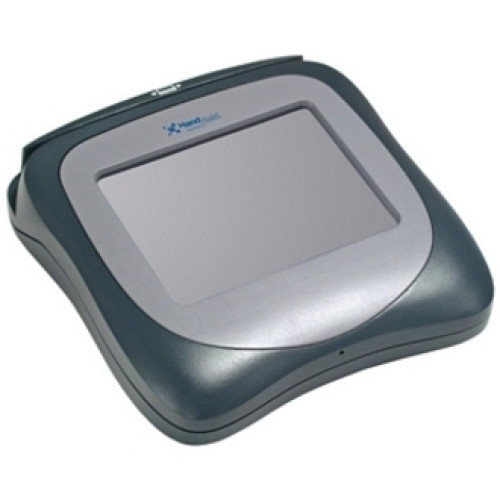

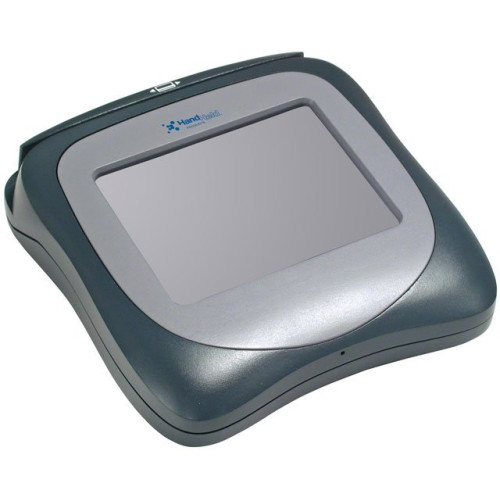

TT8500-MEU - Honeywell TT8500 Signature Pad

TT8500, Monochrome LCD, 3 Track MSR, Ethernet, HST USB, Desktop
InStock
Free Shipping

Description

The TT8500 comes standard with features that are not available or cost extra with other terminals. Powered USB, 4MB flash, 16MB of RAM, and a 3-track magnetic stripe card reader are standard. Choose a color LCD, additional memory, USB host, and 10/100 Base T Ethernet factory options. Not another gray box, the TT8500's innovative design is ergonomic, durable, and friendly to use in a small footprint.
  • Card Reader - The bidirectional, 3-track magnetic stripe reader ensures a high read rate and customer ease-of-use.
  • Color or Monochrome LCD - Your choice of a vibrant color or crisp monochrome LCD gives impact to the messages you want your customers to notice.
  • Communication - Abundant choices for powerful connections to your legacy and state-of-the-art systems.
  • Ethernet Channel - Simultaneous communications to an Ethernet port off-loads high bandwidth transmissions.
  • Exciting Design - Functional and ergonomic design for fast, accurate transactions.
  • Field Replaceable Screen Protector - Designed and tested for the retail environment with a low cost, passive, tethered stylus, and replaceable screen protector.
  • SDK - Build custom, secure applications using Handheld Products' proven development environment.
  • Security - Visa PED approved with a dedicated security processor. Customer PINs are secured with industry standard encryption.
  • True Finger Touch - A light finger touch or tap of the stylus is all that is needed to activate the TT8500.

Additional Information

Manufacturer Honeywell

Technical Information

  • Processor: Intel 32-bit
  • Display: Monochrome QVGA - 320 x 240 - Touch Screen LCD
  • Signature Capture: Yes
  • Pin Pad: Yes
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Security:
    • Secure Key Injection
    • Tamper Response
    • Dedicated Security Processor
    • File Authentication
    • PIN Encryption
    • Master/Session Support
    • DUKPT Support
    • Single and Triple DES PIN Encryption
    • DES 64 and 128 bit
  • Interfaces/Ports:
    • RS-232
    • USB Host
    • Power USB
  • Input Voltage: 12 V DC
  • Network Connectivity: LAN Ethernet

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Transaction Team
  • Product Name: TT8500 Transaction Terminal

Physical Characteristics

  • Dimensions: 2" (51mm) x 7.3" (185mm) x 7.56" (192mm)
  • Weight: 2 lb (0.91 kg)

Included Features

  • Included Features: Magnetic Stripe Reader (3 tracks)

Agency Approvals

  • Agency Approvals: FCC Class A CE (LVD) UL 1950 CSA 22.2 Visa PED Class A

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
