15301 Honeywell

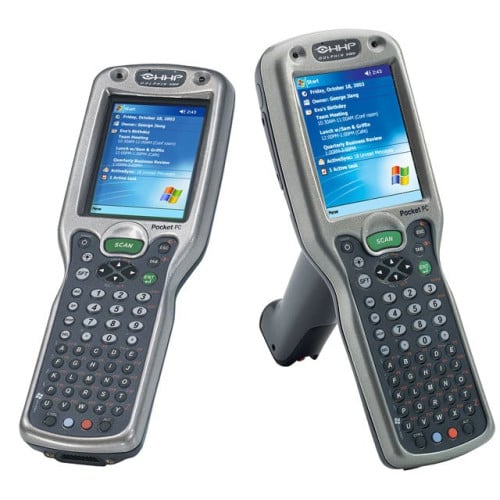

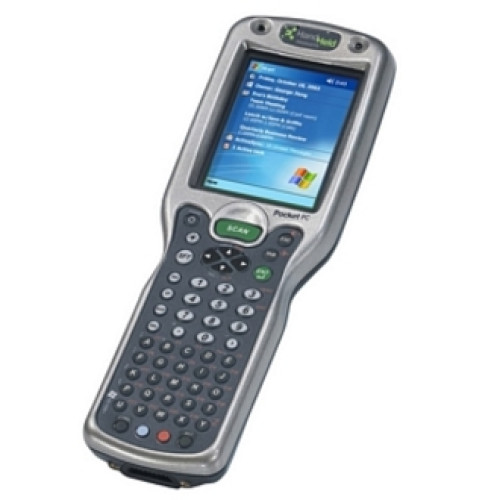

Honeywell Dolphin 9500 & 9550 Hand Held Computer Part # 9500B00-131-C30

The Dolphin 9500 series of PDTs provide unequalled results in any application. Comfortable to hold, durable if dropped, these portable data terminals are reliable and user-friendly. The Dolphin 9500 series is ideal for parcel delivery, warehouse use, route accounting, industrial and manufacturing use and other field operations.

9500B00-131-C30 - Honeywell Dolphin 9500 Handheld Computer

Part Details: Dolphin 9500, 64MB RAM, batch, 56 keys, color display. Includes standard range imager & Pocket PC OS. Order cradle, cables & battery separately. See accessories. (Formerly listed as 9500B00-131-C10 and 9500B00-131-C20)
InStock

Additional Information

Data Collection Type Batch
Display Resolution 240 x 320
Manufacturer Honeywell
Operating System Windows Mobile, Windows Mobile 2003 SE for Pocket PC
Product Condition New
RAM Memory 64 MB
Scanner Type Imager
Style Full-size

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Imager Standard Range - IT4100 with Green Aimer
  • Symbologies Supported:
    • Australian Post
    • Aztec
    • Aztec Mesa
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UCC/EAN
    • UCC/EAN 128
    • UPC
    • UPC-A
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9500 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 1.66" (42mm)
  • Weight: 19.7 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV All Surfaces Discharge
  • Drop Spec: 5' To Concrete Multiple

Warranty

  • Manufacturer Warranty: 2 Year(s)
  • Warranty Details: 1 year on Touch Screen

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Other

  • Package Contents: Dolphin 9500 Mobile Computer Battery Pack Stylus

Agency Approvals

  • Agency Approvals: FCC CE Radio Country: US/Canada R&TTE
