Newer Version Is Available

MS5145 Eclipse, PS/2 Kit, 1D Laser. Includes PS/2 cable and power supply. Color: Black.
$138.00 $88.31
Ships Today
Free Shipping
- +

Product was successfully added to your shopping cart.
15192 Metrologic

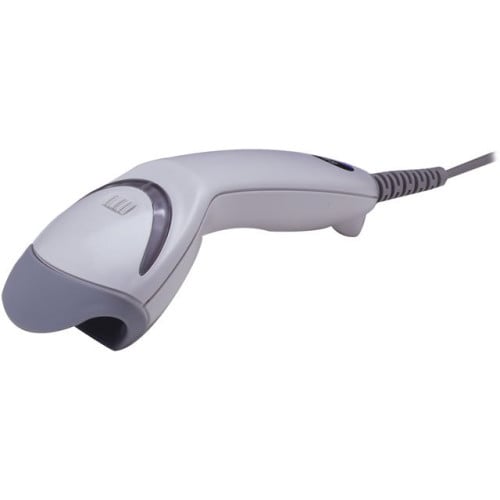

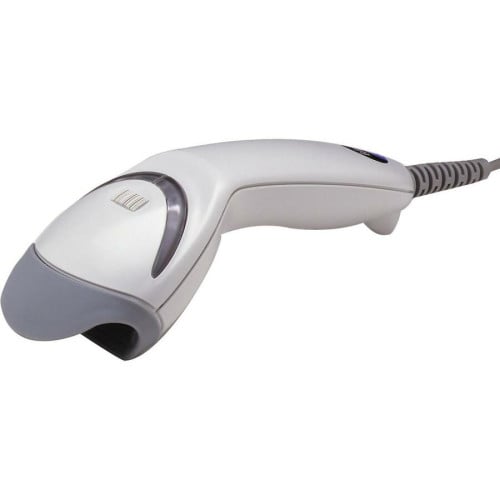

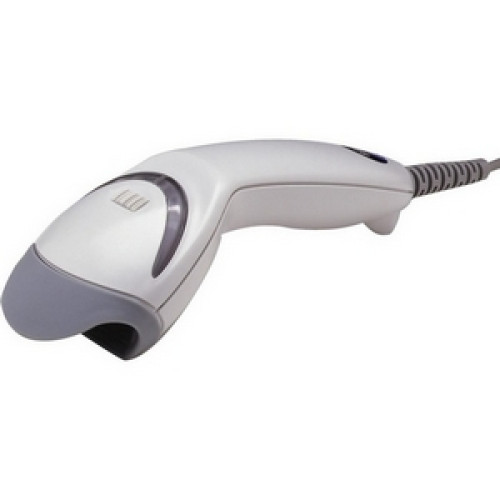

MK5145-31A47 - Metrologic MS5145 Eclipse Bar code Scanner

MS5145 Eclipse, PS/2 Kit, 1D Laser. Includes PS/2 cable. Color: Black. Non-Cancelable/Non-Returnable.
InStock
Free Shipping

Description

The Metrologic MS5145 Eclipse is a single-line, handheld laser scanner. Equipped with CodeGate technology, the MS5145 Eclipse can easily target the desired bar code and complete the data transmission with a simple press of a button.
  • Automatic trigger with CodeGate
  • Custom edit barcode data
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy programming using Windows software or barcodes
  • OPOS and JPOS system compatible
  • User-replaceable, single cable interface to host

Additional Information

Manufacturer Metrologic
Scanner Type Laser
Form Factor Handheld
Scanner Capability 1D
Connectivity Corded
Scan Pattern Single Dot
Item Condition New
Included Cables AT/PS2 Keyboard Wedge
Ruggedness General Purpose

Recommended Accessories

Recommended Warranties

Technical Information

  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.38" - 1.50"@4.10 mil
    • 0 mil - 2.63"@5.70 mil
    • 0 mil - 4.13"@10.40 mil
    • 0 mil - 5.63"@13 mil
    • 0 mil - 7.13"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS5145
  • Product Name: Eclipse MS5145 Barcode Reader
  • Product Line: Eclipse

Physical Characteristics

  • Height: 1.4"
  • Width: 2.5"
  • Depth: 6.7"
  • Color: Black
  • Weight (Approximate): 3.41 oz

Interfaces/Ports

  • Host Interface: Keyboard Wedge

Other

  • Certifications & Standards:
    • Laser Class:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • EMC:
    • FCC
    • ICES-003 & EN55022 Class B
  • Platform Supported: PC

Power Description

  • Input Voltage: 5 V DC
