model-1722 Metrologic

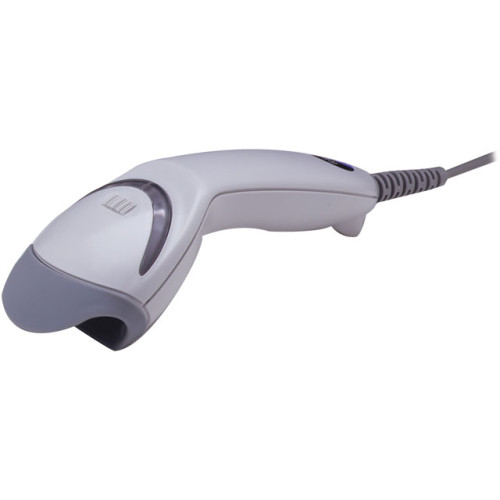

Metrologic MS5145 Eclipse Scanner

Metrologic MS5145 Eclipse Scanner

The Metrologic MS5145 Eclipse is a single-line, handheld laser scanner. Equipped with CodeGate technology, the MS5145 Eclipse can easily target the desired bar code and complete the data transmission with a simple press of a button.
Starting at: MSRP: $129.00 Price: $85.16
See all options
  • Automatic trigger with CodeGate
  • Custom edit barcode data
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy programming using Windows software or barcodes
  • OPOS and JPOS system compatible
  • User-replaceable, single cable interface to host
MS5145 Eclipse Quick Specs
Depth of Scan Field: 0 mm - 140 mm (0” - 5.5”) for 0.33 mm (13 mil) bar codes
Width of Scan Field: 49 mm (1.9”) @ face; 195 mm (7.7”) @ 140 mm (5.5”)
Scan Speed: 72 scan lines per second
Scan Pattern: Single scan line
Minimum Bar Width: 0.102 mm (4.0 mil)
Dimensions: Length: 169 mm (6.7") Width handle: 40 mm (1.6") Height handle: 31 mm (1.2") - Width head: 63 mm (2.5") Height head: 35 mm (1.4")
System Interfaces: PC Keyboard Wedge, RS232, IBM 468x/469x, Stand Alone Keyboard, USB (low speed and full speed)
Light Source: Visible Laser Diode 650 nm ± 10 nm
Weight: 97 g (3.41 oz)
Shock: Designed to withstand 1.5 m (5') drops
Extended Details
Refine Your Options
  1. MK5145-31A38 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, USB Kit, 1D Laser. Includes 5' straight USB cable. Color: Black.
    MSRP: $138.00 Price: $89.08
    In Stock - Ships Free
  2. MK5145-71A38 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, USB Kit, 1D Laser. Includes USB cable. Color: Gray.
    MSRP: $138.00 Price: $89.08
    In Stock - Ships Free
  3. MK5145-31B41-6 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, RS-232 Serial Kit, 1D Laser. Includes Rs-2323 Serial cable and power supply. Color: Black.
    MSRP: $138.00 Price: $91.45
    In Stock - Ships Free
  4. MS5145-38 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, USB interface. Stand and interface cables not included. Color: Gray. For full kit see (Part# MK5145-71A38). Non-Cancelable/Non-Returnable.
    MSRP: $129.00 Price: $85.16
    In Stock - Ships Free
  5. MS5145-38-3 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, SCANNER ONLY: 1D Laser, USB interface. Stand and interface cables not included. Color: Black. For full kit see: (Part# MK5145-31A38).
  6. MK5145-71A11 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, IBM Kit, 1D Laser. Includes IBM cable. Color: Gray.
  7. MK5145-71B40 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, PoweredUSB Kit, 1D Laser. Includes IBM PoweredUSB cable. Color: Gray. Call to purchase. Non-Returnable.
  8. MK5145-31A40 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, PoweredUSB Kit, 1D Laser. Includes IBM PoweredUSB cable. Color: Black. Call to purchase.
  9. MK5145-71A47 - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, PS/2 Kit, 1D Laser. Includes PS/2 cable. Color: Gray.
  10. MK5145-71A38-EU - Metrologic MS5145 Eclipse Bar code Scanner

    MS5145 Eclipse, USB Kit, 1D Laser, Includes 5' USB cable. Color: Gray. European configuration.

Items 1 to 10 of 21 total

Page:
  1. 1
  2. 2
  3. 3

Recommended Accessories

  • Honeywell Cables (55-55000-3)

    Cable, RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power. Non-Cancelable/Non-Returnable.
    Price: $16.05
    Ship Free in 3-5 Days
  • Honeywell Cables (55-55002-3)

    Cable, Keyboard wedge, black, 2.4m (7.9'), straight, 5V external power. Non-Cancelable/Non-Returnable.
    MSRP: $18.00 Price: $16.05
    Ship Free in 3-5 Days
  • Honeywell Cables (55-55235-N-3)

    Cable, USB, black, Type A, 2.9m (9.5'), straight, host power
    Price: $16.06
    In Stock - Ships Free
  • Metrologic MS5145 Accessories (46-46633)

    Stand (for the MS5145 Eclipse Scanner)
    Price: $19.90
    In Stock - Ships Free
  • Honeywell 1400g Accessories (46-00525-6)

    Power supply, North American plug, 1A output current, 90 to 255 AC input voltage
    MSRP: $33.00 Price: $28.11
    In Stock - Ships Free
