15195 Metrologic

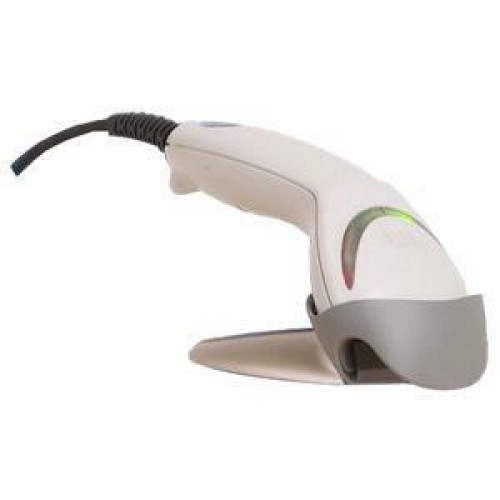

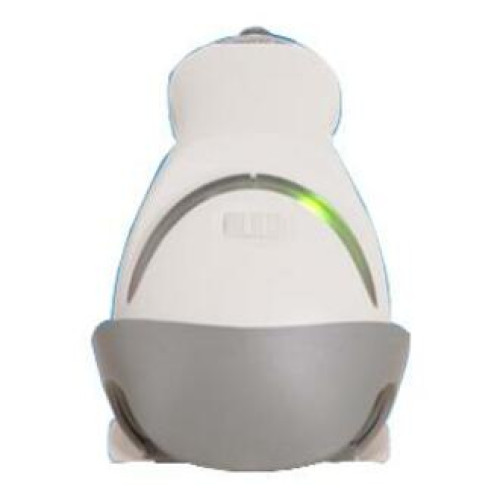

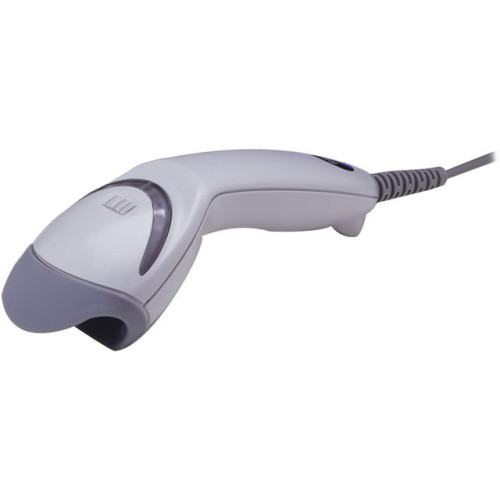

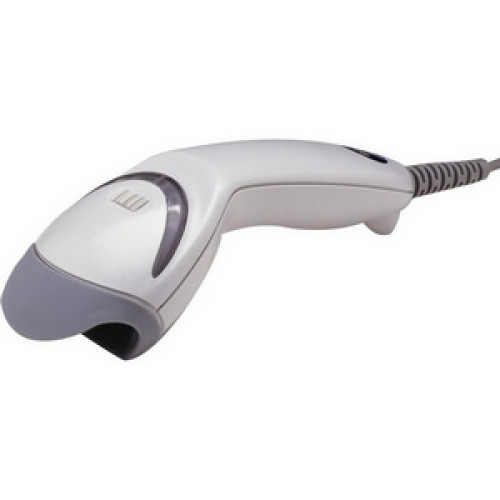

Metrologic MS5145 Eclipse Bar code Scanner Part # MK5145-71A38

The Metrologic MS5145 Eclipse is a single-line, handheld laser scanner. Equipped with CodeGate technology, the MS5145 Eclipse can easily target the desired bar code and complete the data transmission with a simple press of a button.

MK5145-71A38 - Metrologic MS5145 Eclipse Bar code Scanner

Part Details: MS5145 Eclipse, USB Kit, 1D Laser. Includes USB cable. Color: Gray.
InStock
MSRP: $138.00 Price: $89.08
In Stock - Ships Free

Additional Information

Application Library
Color Gray
Connectivity Corded
Form Factor Handheld
Included Cables USB
Manufacturer Metrologic
Product Condition New
Ruggedness General Purpose
Scan Pattern Single Dot
Scanner Capability 1D
Scanner Type Laser
  • Automatic trigger with CodeGate
  • Custom edit barcode data
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy programming using Windows software or barcodes
  • OPOS and JPOS system compatible
  • User-replaceable, single cable interface to host

Technical Information

  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0.38" - 1.50"@4.10 mil
    • 0 mil - 2.63"@5.70 mil
    • 0 mil - 4.13"@10.40 mil
    • 0 mil - 5.63"@13 mil
    • 0 mil - 7.13"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS5145
  • Product Name: Eclipse MS5145 Barcode Reader
  • Product Line: Eclipse

Physical Characteristics

  • Height: 1.4"
  • Width: 2.5"
  • Depth: 6.7"
  • Color: Gray
  • Weight (Approximate): 3.41 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Certifications & Standards:
    • Laser Class:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • EMC:
    • FCC
    • ICES-003 & EN55022 Class B

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories

  • Honeywell Cables (55-55000-3)

    Cable, RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power. Non-Cancelable/Non-Returnable.
    Price: $16.05
    Ship Free in 3-5 Days
  • Honeywell Cables (55-55002-3)

    Cable, Keyboard wedge, black, 2.4m (7.9'), straight, 5V external power. Non-Cancelable/Non-Returnable.
    MSRP: $18.00 Price: $16.05
    Ship Free in 3-5 Days
  • Honeywell Cables (55-55235-N-3)

    Cable, USB, black, Type A, 2.9m (9.5'), straight, host power
    Price: $16.06
    In Stock - Ships Free
  • Metrologic MS5145 Accessories (46-46633)

    Stand (for the MS5145 Eclipse Scanner)
    Price: $19.90
    In Stock - Ships Free
  • Honeywell 1400g Accessories (46-00525-6)

    Power supply, North American plug, 1A output current, 90 to 255 AC input voltage
    MSRP: $33.00 Price: $28.11
    In Stock - Ships Free
