1767 Metrologic

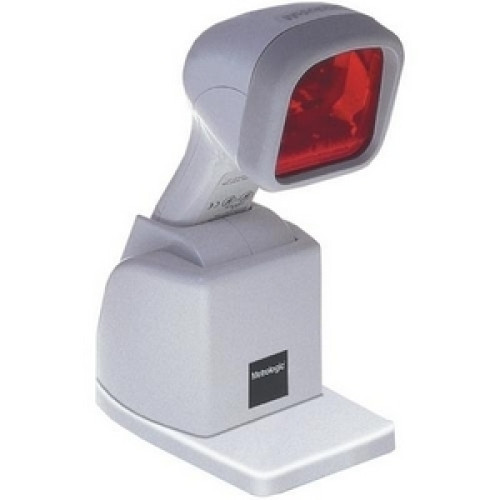

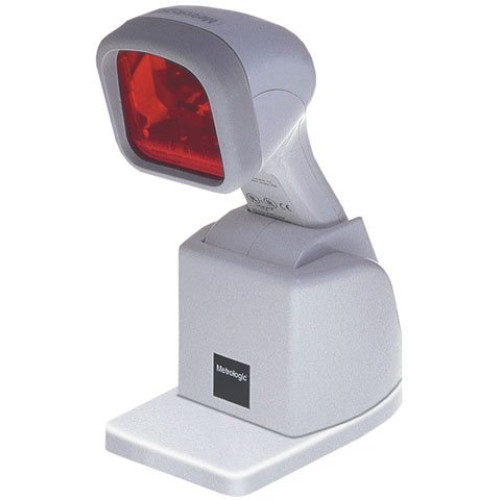

Metrologic MS6720 Bar code Scanner Part # MK6720-73A07

The Metrologic MS6720 is the first Laser Barcode Scanner to truly bridge the gap between omni-directional fixed projection and handheld Scanners. It incorporates fixed projection performance and patented 20-line scan pattern into the comfortable ergonomic styling of the popular handhelds. With this design Metrologic has engineered a Scanner that transcends any other on the market today. The MS6720 utilizes a unique patented infrared sensor and control scheme for hands-free projection scanning and fatigue reduced handheld operation. Whether operators choose to present small items to the Scanner or transport the lightweight Scanner to bulkier items the MS6720 is the perfect choice for many applications. Included with the MS6720 Scanner is a stationary stand which is ideal for applications where the MS6720 is being used mostly as a handheld Scanner. This stand was designed for ease of use while still providing sufficient room for fixed presentation. An optional adjustable stand is also available and provides 7 rotational and 9 tilting positions as well as a removable wall mount cup. The MS6720 features both short-range and long-range activation user-friendly programming reliability and versatility. Operators are sure to appreciate the convenience and flexibility of the MS6720.

MK6720-73A07 - Metrologic MS6720 Bar code Scanner

Part Details: MS6720, USB kit. Includes USB cable & adjustable stand.

Additional Information

Manufacturer Metrologic
Product Condition New

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5.70 mil
  • Depth of Field:
    • 0 mil - 8"@13 mil
    • 0 mil - 4"@5.70 mil
    • 0 mil - 6"@7.50 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS6720
  • Product Name: MS6720 Barcode Reader

Physical Characteristics

  • Height: 8.6"
  • Width: 3"
  • Depth: 2.9"
  • Color: Gray
  • Weight (Approximate): 13.40 oz


  • Host Interface: USB


  • Package Contents:
    • MS6720 Barcode Reader
    • Adjustable Stand
    • Coiled Type A Connector Cable
    • Manuals
    • Clip
    • MS6720 Barcode Reader
    • Adjustable Stand
    • Coiled Type A Connector Cable
    • Manuals
    • Clip
  • Certifications & Standards:
    • Laser Class:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • RS232
    • IBM 468X/469X


  • Limited Warranty: 2 Year
