Honeywell MS9540 Voyager Barcode Scanner Honeywell MS9540 Voyager Barcode Scanner

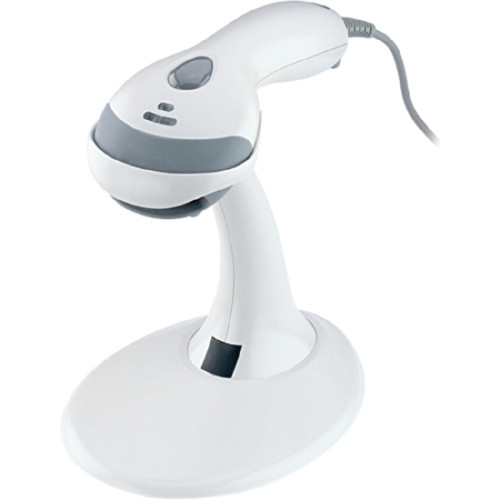

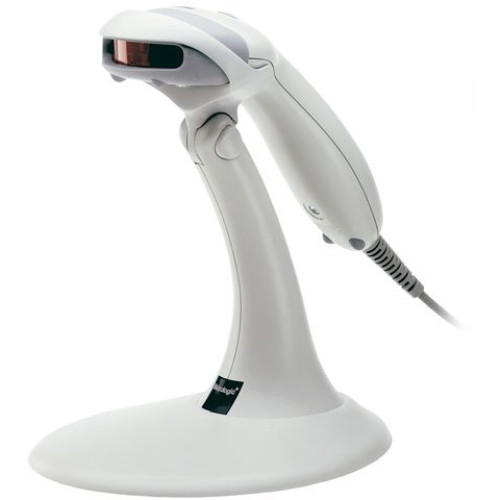

Honeywell MS9540 Voyager Barcode Scanner
Part #: MS9540-38 | SKU: HON48939

The MS9540 Voyager features Honeywell's proprietary CodeGate. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Honeywell MS9540 Voyager Barcode Scanner

Part Details: SCANNER ONLY, 1D Laser Scanner. CodeGate and Low Speed USB interface. Color: Light Gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3), PS/2 (Part# 53-53235-N-3), or RS-232 Serial cables (Part# 53-53000-3) and a Power supply (Part# 46-00525). Non-Cancelable/Non-Returnable.
Need a different version of the Honeywell MS9540 Voyager Barcode Scanner? View all 35 configurations

Additional Information

Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Interface Options USB
Manufacturer Honeywell
Model Name MS9540 Voyager
Scanner Capability 1D
Scanner Type CCD, Imager
Honeywell MS9540 Voyager Specs Honeywell MS9540 Voyager Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Reads Standard 1D and GS1 DataBar Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omni directional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omni directional
    • Reads Standard 1D and GS1 DataBar Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omni directional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omni directional
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 6.50"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Handheld Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 2.2"
  • Width: 3.1"
  • Depth: 7.8"
  • Color: Light Gray
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS

Warranty

  • Limited Warranty: 5 Year
Extended Details

Recommended Accessories for Model: Honeywell MS9540 Voyager Barcode Scanner

  • Honeywell Cables Cables, Connectors, and Adapters
    Part #: 53-53000-3 | SKU: HON83333

    RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
    Price: $19.23
    In Stock

  • Honeywell Cables Cables, Connectors, and Adapters
    Part #: 53-53235-N-3 | SKU: HON83408

    USB, black, Type A, 2.9m (9.5'), coiled, host power
    MSRP: $33.20 Price: $27.67
    In Stock

  • Honeywell 1400g Power Device
    Part #: 46-00525-6 | SKU: HON453630

    Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.
    MSRP: $67.06 Price: $48.64
    In Stock

  • Honeywell MS9590 GS Accessory
    Part #: STND-15F03-013-42 | SKU: HON330074

    Stand, Black, 15cm (6") flex pole & weighted base for MS9590, MS9520/40

  • Honeywell MS9540 Voyager Cables, Connectors, and Adapters
    Part #: MX009-2MA7C | SKU: HON21863

    USB HID Cable, Coiled, Dark Gray, for the MS9540/20, MS6520, MS7120 and MS7220. Made to order with 6-8 week lead time.
