| Frequency | UHF |
|---|---|
| Manufacturer AIDC | Motorola |
| Model Name | DS9808-R |
| Scanner Type | Imager |
| Style | Fixed, USB |

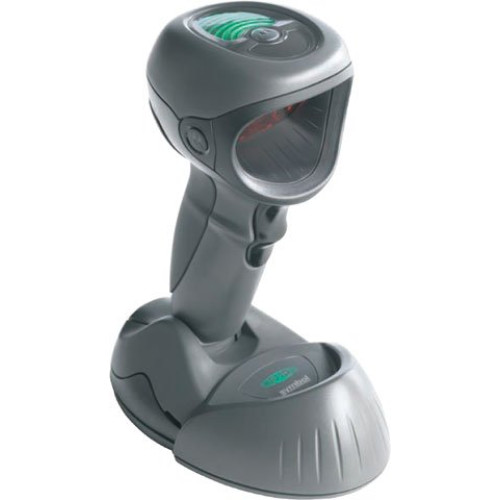

Motorola DS9808-R Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- 1D:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus Supplementals
- ISBN (Bookland)
- ISSN (Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- Depth of Field:
- 0 mil - 4.50"@5 mil - Code 39
- 0 mil - 8.50"@10 mil - UPC/EAN (80%)
- 0 mil - 10.50"@13 mil - UPC/EAN (100%)
- 0 mil - 5"@6.60 mil - PDF417
- 0 mil - 6"@10 mil - Datamatrix
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS9808-R
- Product Name: DS9808-R Handheld Barcode Reader
Physical Characteristics
- Height: 8.5"
- Width: 3.5"
- Depth: 6"
- Color: Twilight Black
- Weight (Approximate): 1.02 lb
Interfaces/Ports
- Host Interface:
- USB
- Serial
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Warranty
- Limited Warranty: 3 Year
Recommended Accessories for Model: Motorola DS9808-R RFID Reader
-
Zebra 23844-00-00R Power Device
Part #: 23844-00-00R | SKU: ZEB26223Power Device - Zebra - AC Line Cord - Grounded - 7.5 Feet Or 2.3 Meters - 3-Prong - Associated Countries - Canada - Mexico - United States.MSRP: $17.09 Price: $14.81 -
Motorola Cables Accessory
Part #: CBA-U16-S08PAR | SKU: MOT147067DS9808-R Accessories, Cable, USB, 8 feet, Straight, 12V For DS9808 RFID. Requires Power supply (Part# PWRS-14000-148R) and US AC Line Cord (Part# 23844-00-00R). -
Motorola DS9808 Spare Parts
Part #: PWRS-14000-256R | SKU: MOT101617Power supply, 5VDC, 850MA, For Use in EU, UK, EMEA, RU, and ZA. -
Symbol MC70 Power Device
Part #: KT-14000-148R | SKU: SYM34547Universal Power supply, 100-240 VAC, 12VDC, 3.33A. Used across multiple product lines for cable charging and cradle and battery charging. See product pages for configurations that use this power supply. Req. country 3 wire AC cord. For use in US use 23844-00-00R AC Line Cord. -
Motorola Cables Accessory
Part #: CBA-M14-S07ZAR | SKU: MOT87238(Cba-M14-S07zar) Connector Cable
