| Manufacturer | Motorola |
|---|---|
| Model Name | SB1 |
| Scanner Capability | 2D |
| Scanner Type | Imager |
Motorola SB1 Specs
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: SB1

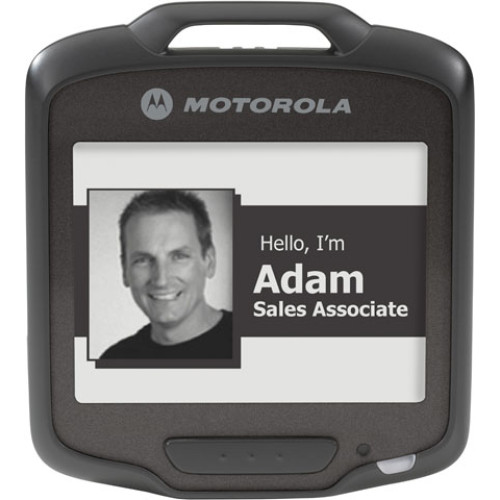

- Product Name: SB1 Smart Badge
Technical Information
- Connectivity Technology: Wireless
- Drop Specification: 48.03" To Tile Over Concrete
- Barcode Symbology Supported:
- 1D
- 2D
Physical Characteristics
- Width: 3.2"
- Depth: 0.6"
- Length: 3.6"
- Weight (Approximate): 3.90 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- MIL STD 810G
- IP54
- RF exposure:
- FCC Part 2
- FCC OET Bulletin 65 Supplement C
- RSS-102
- EN 62311
- Electrical safety:
- IEC/UL/CSA/EN 60950-1
- Laser safety:
- EN 60825-1
- IEC 60825-1
- IEC/EN 62471
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- EN 60601-1-2
Display & Graphics
- Screen Mode: QVGA
- Screen Size: 3"
- Display Color: Grayscale
- Screen Resolution: 320 x 240
Processor & Chipset
- Processor Manufacturer: Freescale
- Processor Speed: 532 MHz
- Processor Type: ARM11
Memory
- Flash Memory: 128 MB
- Standard Memory: 128 MB
Touchscreen Information
- Touchscreen: Yes
- Touchscreen Type: Resistive
Network & Communication
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11b/g/n
Warranty
- Limited Warranty: 1 Year
Battery Information
- Battery Capacity: 910 mAh
