- A true enterprise product, built to handle everyday use, including drops, spills, exposure to dust, heat and cold.
- The three-inch E Ink Pearl display is easy to read in virtually every lighting condition.
- Easy "touch" navigation
- Finger-style navigation eliminates the need for a stylus and supports a gloved hand.
- Workers can simply log in at the start of a shift to access their personal task list and messages.
- Customizable bezel
- Supports HTML5 thin client applications where the data resides on servers instead of the device, simplifying application development and eliminating the risk of data theft if the device is lost or stolen.
Motorola SB1 Specs
Communications
Radio
Wi-Fi IEEE® 802.11b/g/n
Performance characteristics
Memory
128 MB RAM/128 MB FLASH
Data capture options
1-D/2-D omni-directional bar code reader with integrated aiming and
built-in illumination
Processor (CPU)
i.MX35 (532MHz)
Physical characteristics
Durable
Yes
Display resolution
QVGA (320x240)
Weight
3.9 oz./110 g
Notification
Beeper, Multi-colored LEDs
Display type
3.0 inch E Ink® Pearl display; 4-bit gray scale (16 shades)
Dimensions (HxWxD)
3.62 in L x 3.19 in W x 0.55 in D (92mm L x 81mm W x 14mm D)
Power
Battery
910mAH (full charging in less than 4 hours)
Regulatory specifications
RF exposure
FCC Part 2, FCC OET Bulletin 65 Supplement C, RSS-102, EN 62311
Electrical safety
IEC/UL/CSA/EN 60950-1
Laser safety1
EN 60825-1, IEC 60825-1, IEC/EN 62471
Environmental
RoHS Directive 2002/95/EEC
EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024, EN
61000-3-2, EN 61000-3-3, EN 60601-1-2
Radio
Wi-Fi IEEE® 802.11b/g/n
User environment
Humidity
5% to 95% non-condensing
Drop specification
Multiple 4-ft./1.22-m drops to tile over concrete per MIL STD 810G
specifications
Operating temperature
32° F to 104° F / 0° C to 40° C
Environmental sealing
IP54
Storage temperature
-40° F to 158° F / -40° C to 70° C
-

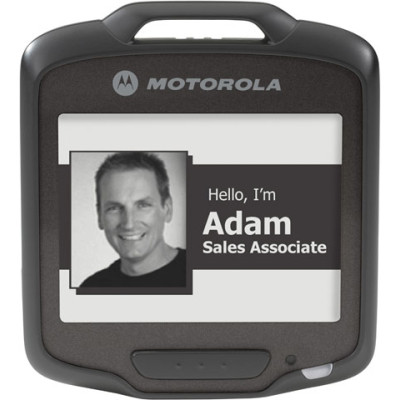

Motorola SB1 Mobile Computer
Part #: SB1B-SE11A0WW | SKU: MOT211536SB1, Smart Badge, E Ink Display, 80211b/g/n WiFi, Omni-Directional 1D/2D Scanning, Push-to-Talk Single unit . Interface Cables And Charging Cradle Sold Separately. -
Motorola SB1 Mobile Computer
Part #: SB1B-AE11A0WW | SKU: MOT253407SB1, SMART BADGE, Health care BLACK, STD, E INK DISPLAY, Omnidirectional 1D/2D SCANNING, 802.11 B/G/N, WORLD WIDE, SINGLE PACK -

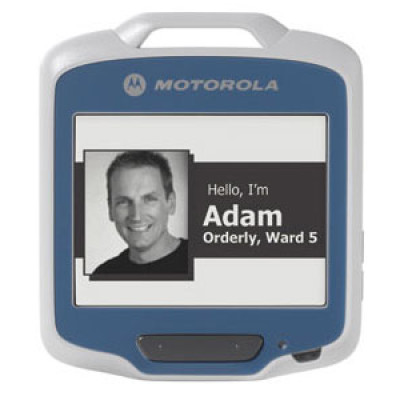

Motorola SB1-HC Mobile Computer
Part #: SB1B-HE11A0WW | SKU: MOT253408SB1-HC, Smart Badge, Health care Version, E-Ink Display, Omnidirectional 1D/2D Scanner, Wi-Fi (802.11 b/g/n), Single Unit.
