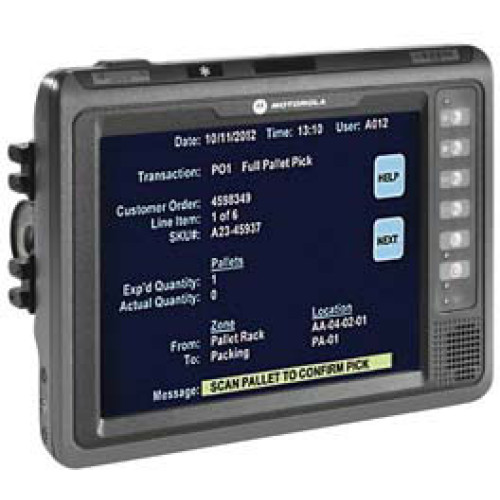

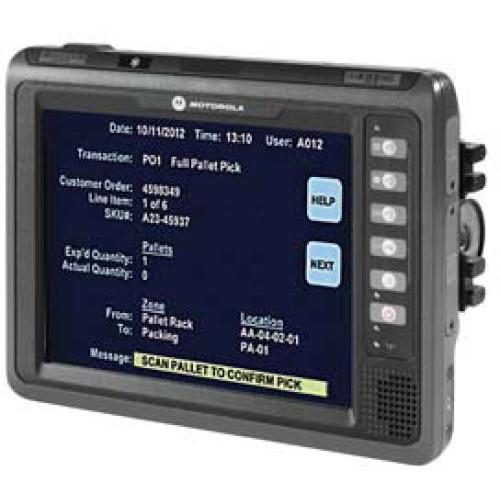

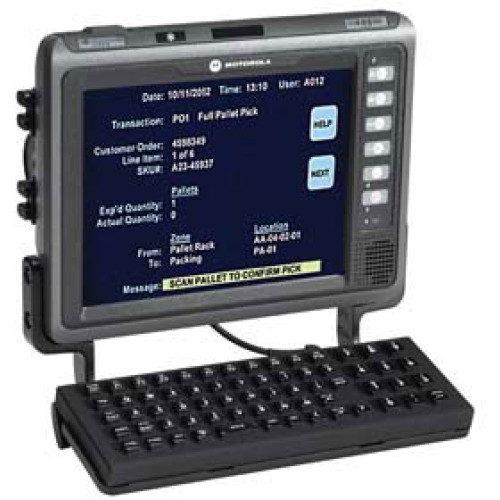

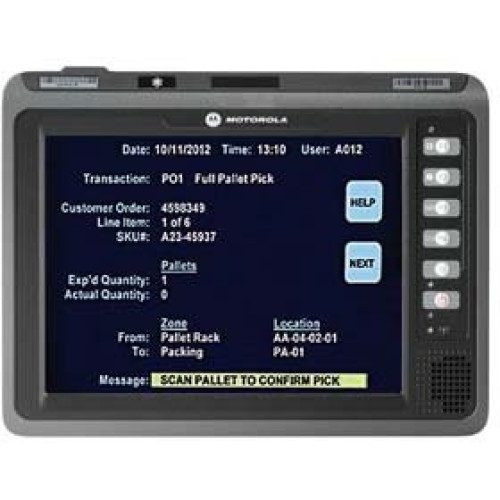

Motorola VC70N0 Fixed/Vehicle Mount Data Terminal
Part #: VC70N0-60VDC-U-R | SKU: MOT17978

The VC70N0 is Motorola Solutions new ultra-rugged vehicle-mounted mobile computer designed to enhance warehouse productivity and increase operators throughput to achieve accurate orders that are delivered on time, every time and ultimately keep customers satisfied and loyal.

Motorola VC70N0 Fixed/Vehicle Mount Data Terminal

Part Details: Fixed Mount Mobile Computer, 10.4” Touchscreen Display, Wifi (802.11A/B/G/N), Windows Embedded Compact 7 Pro, 512Mb/2Gb, 1024X768, Led Backlit, U Mount, Interface Cables And Charging Cradle Sold Separately. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery.
Price: $4,273.50

Additional Information

Display Size 10.4 inch
Form Factor Vehicle/Forklift
Internal Storage 2GB Flash
Keyboard Touch-based
Manufacturer Motorola
Model Name VC70N0
Network Connectivity 802.11a/b/g/n, 802.11b, 802.11g
Operating System WIndows Embedded Compact 7
Product Condition New
RAM Memory 512MB

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC70N0
  • Product Name: VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 8.9"
  • Depth: 2.4"
  • Length: 11.5"

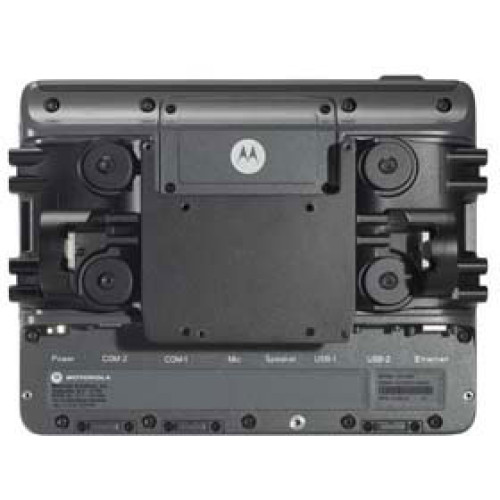

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x RS-232 Serial
    • 3 x USB
    • 1 x CANbus
    • 1 x RJ-45 Network

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IP 66
    • MIL -STD 810G; Method 514.6
    • MIL -STD 810G; Method 516.6
    • MIL -STD 810G
    • IEC 68-2-5
    • Electrical Safety:
    • UL /cUL /IE C/EN 60950-1 Indoor Use
    • UL /cUL /IE C/EN 60950-22 Outdoor Use
    • EMI /RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022
    • EN 301 489-1
    • EN 301 489-17
    • WLAN:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • AS/NZS 4268
    • Flammability:
    • IEC UL 94-VO

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LCD
  • Screen Size: 10.4"
  • Graphics Modes: XGA
  • Display Resolution: 1024 x 768

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB

Network & Communication

  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Technology: Wi-Fi

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Embedded Pro 7
Extended Details

Recommended Accessories for Model: Motorola VC70N0 Fixed/Vehicle Mount Data Terminal

  • Motorola Cable
    Part #: 50-16000-256R | SKU: MOT65439

    MC67 Accessories, Cord: Pwr S. Korea Cont Europe Cee7
    Price: $16.56
  • Motorola Cable
    Part #: 50-16000-218R | SKU: MOT65438

    MC67 Accessories, Cord: Pwr 18awg 10a 250v Japan
    Price: $16.99
    In Stock
  • Motorola Cable
    Part #: 50-16000-219R | SKU: MOT37710

    MC67 Accessories, Cord: Pwr 18awg 10a 250v Uk
    Price: $20.24
    In Stock
  • Motorola Cable
    Part #: 50-16000-669R | SKU: MOT29314

    MC67 Accessories, AC Lind Cord, 1.8 M Grounded, Three Wire, Bs 546 Plug. Associated Country: India. For Power Supplies Kt-14000-148R and 50-14000-241r.
    Price: $19.95
  • Motorola Cable
    Part #: 50-16000-221R | SKU: MOT26272

    MC67 Accessories, AC Line Cord, 1.8 meter, 250V, US
    Price: $19.84
