Motorola VC70N0 Specs
Display
Standard display
10.4 in. color XGA LCD; 1024x768, 600 NIT LED backlit
Physical characteristics
Data capture
Scanner Options: DS3508 Corded Scanner; DS3578 Cordless Scanner
Power supply
External IP66 sealed 9-60V DC/DC converter for all engines with
12V, 24V, 36V or 48V truck battery; external 100-240VAC power
supply for AC-powered carts.
Keypad
3 keyboards, all backlit with IP66 sealing and tactile feedback:
QWERTY or AZERTY, 65-key with function keys F1-F24; side-mounted
21-key numeric/functional keypad
Weight
4.3 kg / 9.4 lb
Battery
Integrated dual-function battery; provides up to 30 minute session
persistence during forklift battery swap and up to 72 hours RAM
backup
Antenna
Internal WLAN diversity antenna; optional external WLAN antenna
with diversity; internal Bluetooth antenna
Touchscreen
Resistive touch; optional display defroster
Dimensions
291 mm L x 225.4 mm W x 60 mm D / 11.5 in. L x 8.9 in. W x 2.4 in.
D
Regulatory Specifications
Product flammability
IEC UL94-V0
WLAN and Bluetooth
USA: FCC Part 15.247, 15.407 Canada: RSS-210 EU: EN 300 328, EN 301
893 AU/NZ: AS/NZS 4268
Environmental
RoHS/WEEE compliant
Electrical safety
UL/cUL/IEC/EN 60950-1 Indoor use and UL/cUL/IEC/EN 60950-22 Outdoor
use
EMI/RFI
North America: FCC Part 15, Class B; Canada: ICES 003 Class B; EU:
EN55022, EN 301 489-1, EN 301 489-17
System characteristics
Operating system
Windows Embedded Compact 7 (WEC 7)
Terminal emulation
Wavelink Terminal Emulation 3270, 5250, VT100, VT220; pre-loaded
and pre-licensed.
Audio
Built-in front-mounted 2W speaker; optional external 13W speaker
and external PTT microphone
Memory
512MB SDRAM and 2GB Flash
CPU
TI OMAP 4430, Dual Core @ 1GHz
Expansion slot
microSD up to 32GB SDHC Class 10; user accessible
User environment
Integrated sensors
Motion, humidity, temperature, ambient light, ignition
Solar radiation
IEC 68-2-5 Procedure A for 3 days
Thermal shock
-40° F to +158° F/-40° C to +70° C
Electrostatic discharge (ESD)
±15kV air discharge, ±8kV direct discharge
Vibration
MIL-STD 810F, Method 514.5 - Functional
Storage temperature
-40° to 158° F/-40° to 70° C
Altitude
15, 000 ft./4, 572 m above sea level
Salt fog
MIL-STD-810F (8 hours of 5% solution at 35° C)
Mechanical shock
MIL-STD 810F 516.5, Procedure 1 – Functional
Humidity
5% to 95% condensing; integrated accessible and field-replaceable
desiccant
Environmental sealing
IP66
Operating temperature
-22° to 122° F/-30° to 50° C
Wireless data communications
Bluetooth
Class II, v2.1 EDR, 3 Mb/s Easy pairing/unpairing labels
Wireless LAN
802.11a/b/g/n
-
Internal Storage
-
Interface Options
-
Form Factor
-
Operating System
-
RAM Memory
-

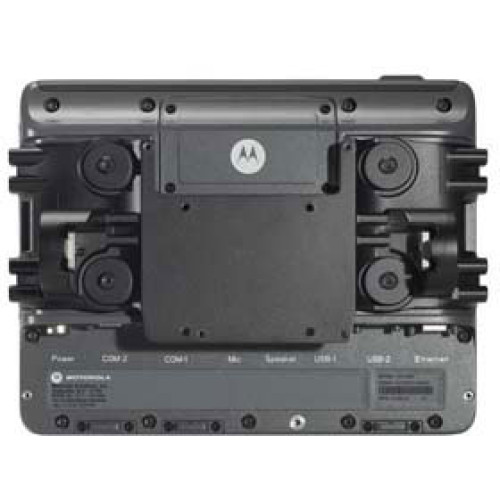

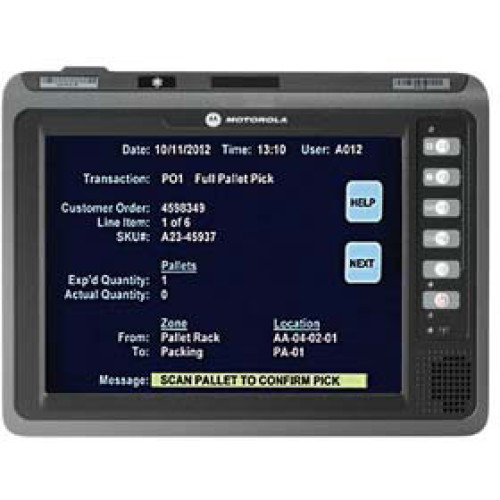

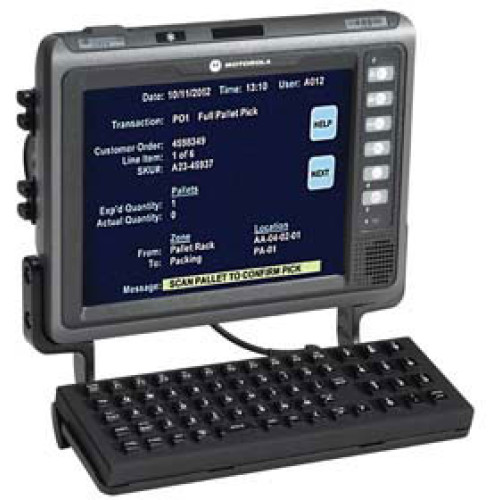

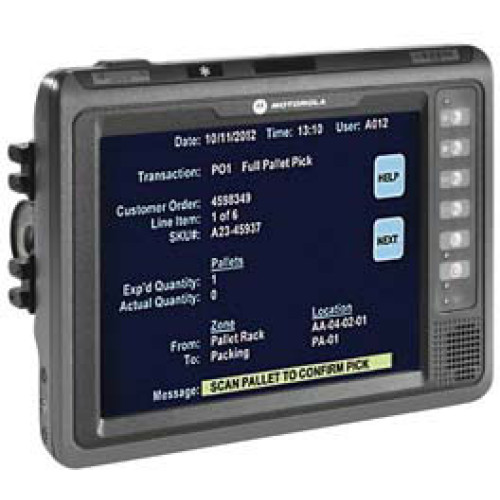

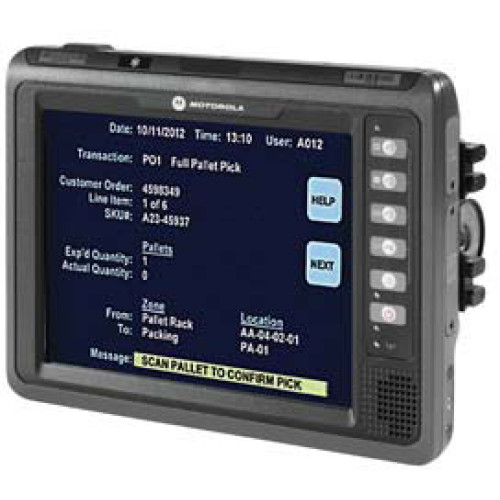

Motorola VC70N0 Data Terminal
Part #: VC70N0-60VDC-U-R | SKU: MOT17978Fixed Mount Mobile Computer, 10.4” Touchscreen Display, Wifi (802.11A/B/G/N), Windows Embedded Compact 7 Pro, 512Mb/2Gb, 1024X768, Led Backlit, U Mount, Interface Cables And Charging Cradle Sold Separately. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery. -
Motorola VC70N0 Data Terminal
Part #: VC70N0-MA0U702G7WR | SKU: MOT207591Fixed Mount Mobile Computer, 10.4? Touchscreen Display, Windows Embedded Compact 7 Pro, 512Mb/2Gb, 1024X768, Led Backlit. Interface Cables And Charging Cradle Sold Separately. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery. -
Motorola VC70N0 Data Terminal
Part #: VC70N0-F-60VDC-U-R | SKU: MOT207590Fixed Vehicle Mount Computer, 10.4? Touchscreen Display, Freezer Grade, Windows Embedded Compact 7 Pro, 512Mb Ram, 2Gb On-Board Flash, 802.11Abgn. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery. -
Motorola VC70N0 Data Terminal
Part #: VC70N0-MA0U702G8WR | SKU: MOT207618Fixed Vehicle Mount Computer, 10.4? Backlit Touch Screen Display With Screen Defroster, Windows Embedded Compact 7 Pro, 512Mb Ram, 2Gb On-Board Flash, 802.11Abgn. Power Supply Sold Seperately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery. -
Motorola VC70N0 Data Terminal
Part #: VC70N0-AC-U-R | SKU: MOT207589Fixed Mount Mobile Computer, 10.4” Touchscreen Display, U-Mount Bundle, Windows Embedded Compact 7 Pro, 512Mb Ram, 2Gb On-Board Flash, Wifi (802.11A/B/G/N), 100-240Vac, Us Ac Cord. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery.
