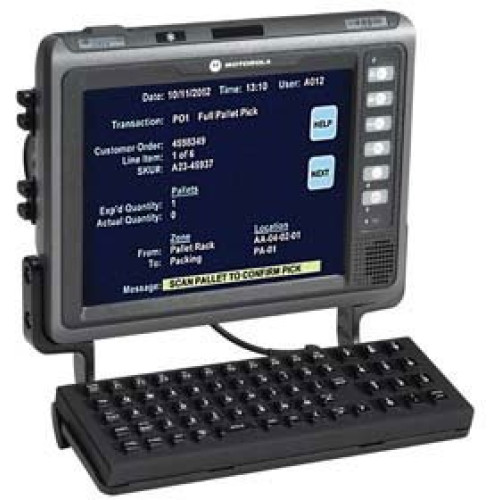

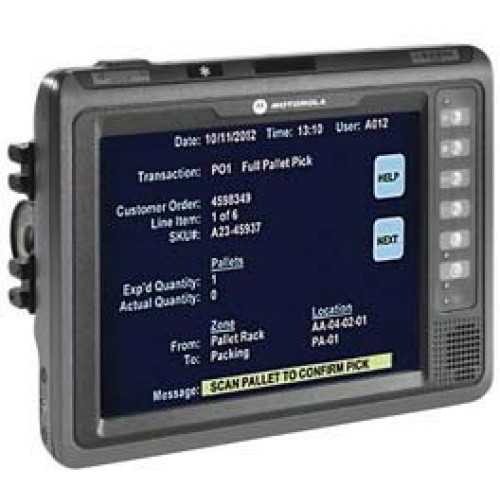

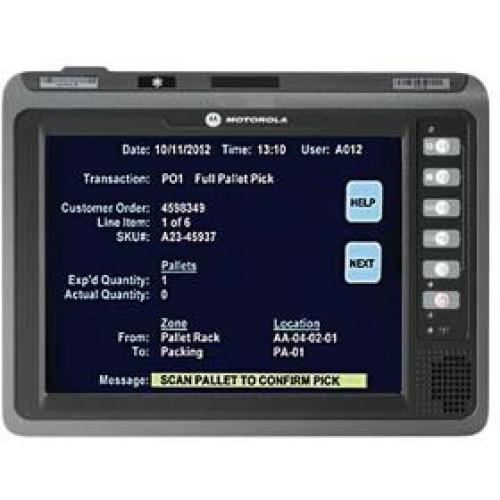

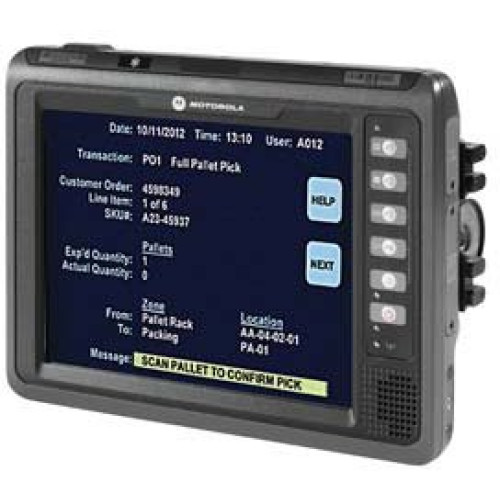

Motorola VC70N0 Fixed/Vehicle Mount Data Terminal Part # VC70N0-AC-U-R

The VC70N0 is Motorola Solutions new ultra-rugged vehicle-mounted mobile computer designed to enhance warehouse productivity and increase operators throughput to achieve accurate orders that are delivered on time, every time and ultimately keep customers satisfied and loyal.

VC70N0-AC-U-R - Motorola VC70N0 Vehicle Mount Mobile Computer Fixed/Vehicle Mount Data Terminal

Part Details: VC70N0, Zebra EVM, VC70N0, 100-240VAC, U Mount (Bundle) VC70N0 Vehicle Mount Computer, 10.4" 1024X768 Led Backlit Touch Screen Display, Windows Embedded Compact 7 Pro, 512Mb Ram, 2Gb On-Board Flash, 802.11Abgn, 100-240Vac, US Ac Cord. Power Supply Sold Separately. External Dc Power Supply (Part# PWRS-9-60VDC-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery.
InStock
MSRP: $4,677.00 Price: $3,601.29
Ship Free in 3-5 Days

Additional Information

Display Size 10.4 inch
Form Factor Fixed
Internal Storage 2GB Flash
Keyboard Touch-based
Manufacturer Motorola
Model Name VC70N0
Network Connectivity 802.11a/b/g/n
Operating System WIndows Embedded Compact 7
Product Condition New

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC70N0
  • Product Name: VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Width: 8.9"
  • Depth: 2.4"
  • Length: 11.5"

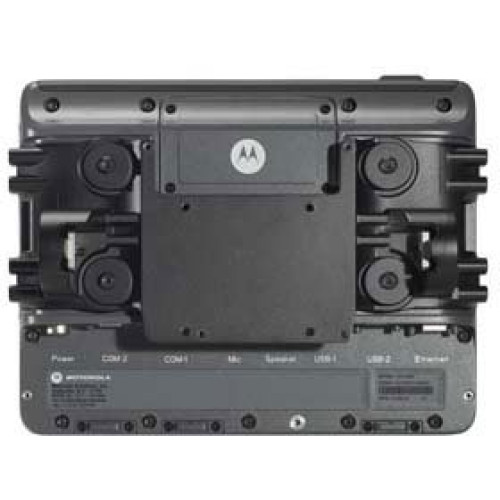

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x RS-232 Serial
    • 3 x USB
    • 1 x CANbus
    • 1 x RJ-45 Network

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IP 66
    • MIL -STD 810G; Method 514.6
    • MIL -STD 810G; Method 516.6
    • MIL -STD 810G
    • IEC 68-2-5
    • Electrical Safety:
    • UL /cUL /IE C/EN 60950-1 Indoor Use
    • UL /cUL /IE C/EN 60950-22 Outdoor Use
    • EMI /RFI:
    • FCC Part 15, Class B
    • ICES 003 Class B
    • EN55022
    • EN 301 489-1
    • EN 301 489-17
    • WLAN:
    • FCC Part 15.247, 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • AS/NZS 4268
    • Flammability:
    • IEC UL 94-VO

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: LCD
  • Screen Size: 10.4"
  • Graphics Modes: XGA
  • Display Resolution: 1024 x 768

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge

Processor & Chipset

  • Processor Manufacturer: Texas Instruments
  • Processor Speed: 1 GHz

Memory

  • Flash Memory: 2 GB
  • Standard Memory: 512 MB

Network & Communication

  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Wireless Technology: Wi-Fi

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Embedded Compact 7
Extended Details
