Motorola VC70N0 Fixed/Vehicle Mount Data Terminal

Motorola Barcode Readers and Hand Held Computer

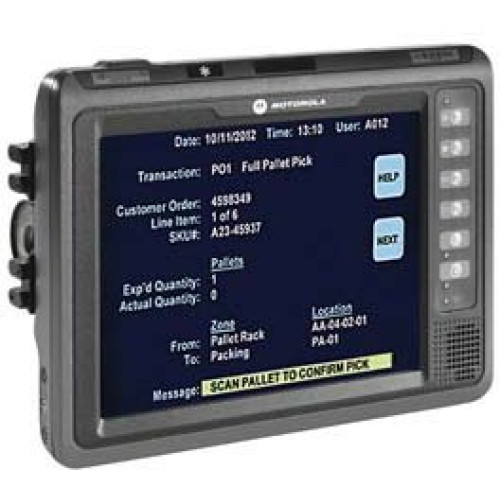

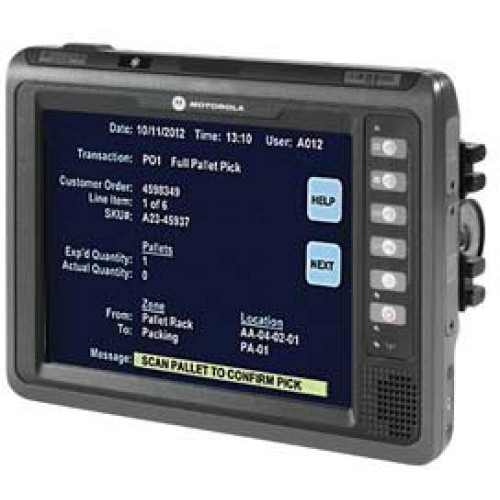

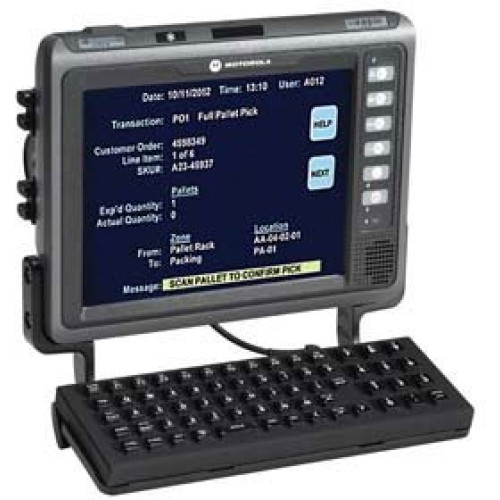

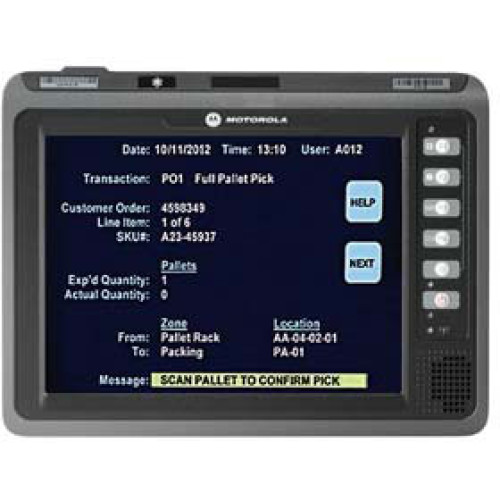

Motorola VC70N0 Fixed/Vehicle Mount Data Terminal
Part #: VC70N0-MA0U702G7WR | SKU: MOT207591

The VC70N0 is Motorola Solutions new ultra-rugged vehicle-mounted mobile computer designed to enhance warehouse productivity and increase operators throughput to achieve accurate orders that are delivered on time, every time and ultimately keep customers satisfied and loyal.

Motorola VC70N0 Fixed/Vehicle Mount Data Terminal

Part Details: Fixed Mount Mobile Computer, 10.4” Touchscreen Display, Windows Embedded Compact 7 Pro, 512Mb/2Gb, 1024X768, Led Backlit. Interface Cables And Charging Cradle Sold Separately. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery.

Need a different version of the Motorola VC70N0 Fixed/Vehicle Mount Data Terminal? View all 5 configurations

Additional Information

Display Size	10.4 inch
Form Factor	Vehicle/Forklift
Internal Storage	2GB Flash
Keyboard	Touch-based
Manufacturer	Motorola
Model Name	VC70N0
Network Connectivity	802.11a/b/g/n, 802.11b, 802.11g
Operating System	WIndows Embedded Compact 7
Product Condition	New
RAM Memory	512MB

Motorola VC70N0 Specs (pdf)

General Information

Product Type: Vehicle Mount Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: VC70N0
Product Name: VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer

Technical Information

Connectivity Technology: Wireless

Physical Characteristics

Width: 8.9"
Depth: 2.4"
Length: 11.5"

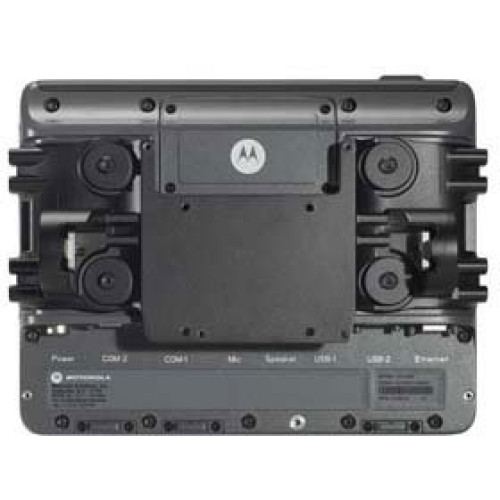

Interfaces/Ports

Interfaces/Ports:
- 2 x RS-232 Serial
- 3 x USB
- 1 x CANbus
- 1 x RJ-45 Network

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- IP 66
- MIL -STD 810G; Method 514.6
- MIL -STD 810G; Method 516.6
- MIL -STD 810G
- IEC 68-2-5
- Electrical Safety:
- UL /cUL /IE C/EN 60950-1 Indoor Use
- UL /cUL /IE C/EN 60950-22 Outdoor Use
- EMI /RFI:
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- WLAN:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- AS/NZS 4268
- Flammability:
- IEC UL 94-VO

Display & Graphics

Touchscreen: Yes
Display Screen Type: LCD
Screen Size: 10.4"
Graphics Modes: XGA
Display Resolution: 1024 x 768

Environmental Conditions

Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge

Processor & Chipset

Processor Manufacturer: Texas Instruments
Processor Speed: 1 GHz

Memory

Flash Memory: 2 GB
Standard Memory: 512 MB

Network & Communication

Wireless LAN Standard: IEEE 802.11a/b/g/n
Wireless Technology: Wi-Fi

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows Embedded Compact 7

Extended Details
