Additional Information
| Manufacturer | MultiTech |
|---|---|

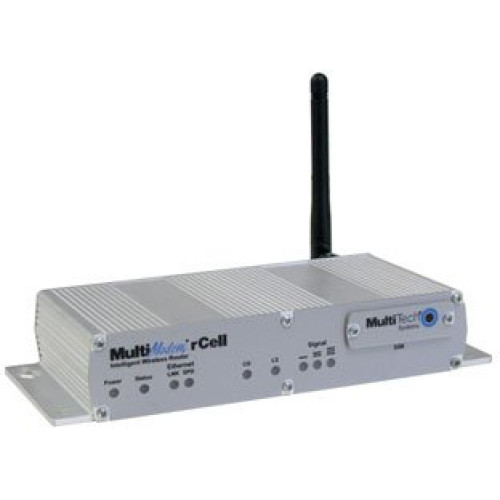

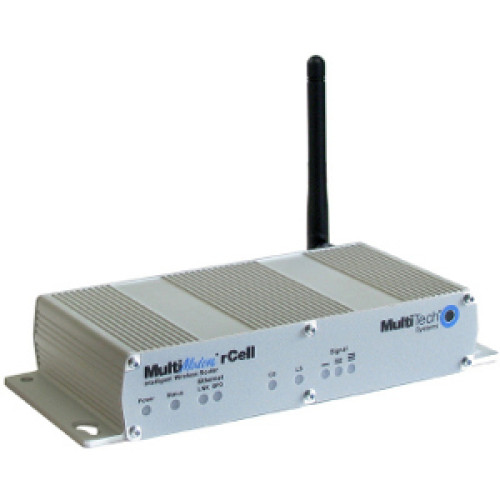

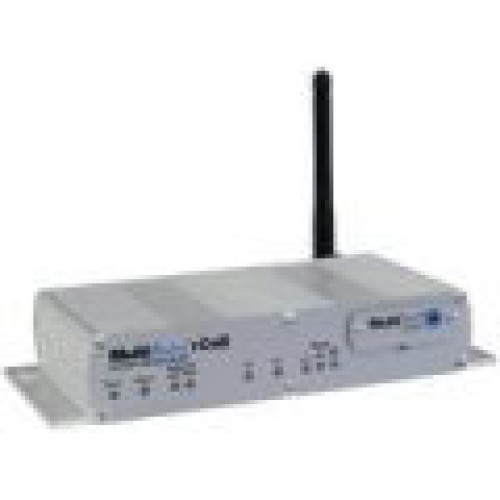

| Model Name | MultiModem rCell |
General Information
- Product Type: Wireless Router
- Brand Name: Multi-Tech
- Manufacturer: Multi-Tech Systems, Inc
- Product Model: MTCBA-EV2-EN2-N3
- Product Name: MultiMode MTCBA-EV2-EN2-N3 Wireless Router
- Product Line: MultiModem
Physical Characteristics
- Height: 1.2"
- Width: 7"
- Depth: 2.8"
- Form Factor:
- Desktop
- Panel-mountable
- Weight (Approximate): 11.50 oz
Interfaces/Ports
- Ethernet Port: Yes
- Fast Ethernet Port: Yes
- Gigabit Ethernet Port: No
- Number of Network (RJ-45) Ports: 1
- PoE (RJ-45) Port: No
- USB: No
- VGA: No
- Network (RJ-11): No
- Powerline: No
- Management Port: No
- Serial: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- REACH
- WEEE
- Package Contents:
- MultiMode MTCBA-EV2-EN2-N3 Wireless Router
- Antenna
- Ethernet Cable
- RS-323 Cable
- Power Supply
- Quick Start Guide
- Product CD
- MultiMode MTCBA-EV2-EN2-N3 Wireless Router
- Antenna
- Ethernet Cable
- RS-323 Cable
- Power Supply
- Quick Start Guide
- Product CD
- Certifications & Standards:
- FCC Part 15
- FCC Part 22, 24
- RSS132,133
- CE
- cUL 60950-1
- UL 60950-1
- IEC60950-1
- CDG 1 & 2
Management & Protocols
- Management:
- Web-based Management
- DHCP
- Syslog
- Security Features:
- Stateful Packet Inspection
- Packet Flter
- IPSec
- 3DES
- AES
- IKE
- GRE
- PPTP
- NAT
- DNAT
Wireless Specifications
- Broadband Transmission Technology: Cellular
- ISM Band: No
- UNII Band: No
- Cellular Data Connectivity Technology: EVDO
- Cellular Generation: 3G
- Cellular Network Supported:
- CDMA2000 1X
- CDMA 800
- CDMA 1900
- Total Number of Antennas: 1
- Antenna Gain: 3 dBi
- Antenna Type: Omnidirectional Antenna
- Antenna Connector: SMA Connector
Power Description
- Input Voltage: 32 V DC
- Power Source: AC Adapter
Warranty
- Limited Warranty: 2 Year
I/O Expansions
- Expansion Slots: 1 x SIM Card
Network & Communication
- Ethernet Technology: Fast Ethernet
