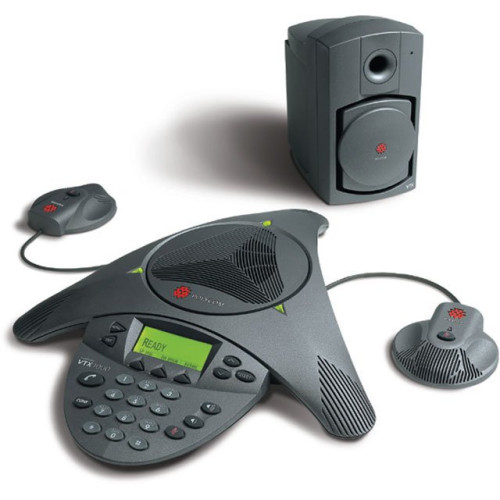

Polycom SoundStation VTX 1000 Telecommunication Equipment
Part #: 2200-07500-001 | SKU: POL36519

The Polycom SoundStation VTX 1000 is truly a leap forward in voice conferencing technology. It’s the world’s first conference phone that automatically adapts to each meeting environment, providing high fidelity voice clarity for all participants. With the SoundStation VTX 1000, conference call participants can speak at a normal, natural conversation level and be heard clearly from up to 20-feet away from the microphone, even in large conference rooms. And, when two SoundStation VTX 1000 conference phones connect on opposite ends of a call, the phones automatically connect in Polycom HD Voice, resulting in extraordinary fidelity. No wonder Polycom is the #1 choice in conference phones, worldwide.

Polycom SoundStation VTX 1000 Telecommunication Equipment

Part Details: POLYCOM-IMSOURCING VTX 1000 Conference Phone - Backlight

Additional Information

Manufacturer Polycom
Model Name SoundStation VTX 1000

General Information

  • Product Type: Conference Phone
  • Brand Name: Polycom
  • Manufacturer: Polycom, Inc
  • Product Model: VTX 1000
  • Product Name: SoundStation VTX 1000 EX

Technical Information

  • Caller ID: Yes
  • Features: Conference Call

Physical Characteristics

  • Form Factor: Desktop
  • Weight (Approximate): 1.75 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Network (RJ-45): Yes
  • Phone Line (RJ-11): Yes
  • Number of Phone Line (RJ-11) Ports: 1

Other

  • Package Contents:
    • SoundStation VTX 1000 EX
    • Tabletop console with integrated display and keypad
    • Power/network interface module
    • Subwoofer
    • User documentation (user guide, quick installation guide, registration card)
    • 1 Power cable (console)
    • 1 21-ft. (6.4m) console cable
    • 1 7-ft. (2.1m) telco cable
    • SoundStation VTX 1000 EX
    • Tabletop console with integrated display and keypad
    • Power/network interface module
    • Subwoofer
    • User documentation (user guide, quick installation guide, registration card)
    • 1 Power cable (console)
    • 1 21-ft. (6.4m) console cable
    • 1 7-ft. (2.1m) telco cable
  • Certifications & Standards:
    • UL 1950
    • CSA C22.2, no. 950
    • EN6-950 IEC60950AS/NZS3260
    • FCC (47 CFR Part 15) Class B
    • ICES-003 Class B
    • EN55022 Class B
    • CISPR 22 Class B
    • AS/NZS 3548 Class B
    • VCCI Class B
    • EN50224
  • Additional Information:
    • Acoustic Clarity Technology
    • Unparalleled room coverage
    • External Mics not Included
    • Revolutionary voice quality
    • Built-in investment protection
    • Maximum configuration flexibility
    • Easy to install/Easy to use
    • 2 EX microphone connections
    • independent input and output, bass/treble controls, and internal mic and speaker control for multiple uses and applications
    • Noise reduction technology automatically minimizes PC, projector, and HVAC sounds
    • Automatic mic selection only one mic is on at a time to remove in the well sound
    • Subwoofer for audio extension down to 80 Hz, which provides clearer, lifelike sound
    • Selectable, downloadable ring tones
    • Console Loudspeaker:
    • Frequency response: 300 Hz to 3.3 kHz in narrowband mode, 80 Hz to 7 kHz in wideband mode
    • Volume: adjustable to 89 dB (peak) volume at 0.5 meters
    • Treble/Bass Controls Adjustment range: ± 6 dB
    • Console Microphones: 3 cardioid microphones 80 Hz - 7 kHz
    • Sub-woofer:
    • Frequency response: 80 to 300 Hz in wideband mode
    • Power: Switchable 110/220 V, 50/60 Hz
    • Network requirements: compatible with standard PSTN and PBX networks, analog or G.711 encoded
    • Software download mode Download protocol: V.34 compatible Connection rates: to 33 Kbps, depending on line quality
    • Download server: Polycom download server
    • Recommended Room Conditions:
    • Reverberation time: <0.54 seconds Noise level: <48 dBa
    • Audio Enhancements:
    • Automatic Gain Control (AGC)
    • Dynamic Noise Reduction
    • Gated microphones with intelligent microphone mixing
    • 80 Hz to 7 kHz VTX wideband audio

Controls/Indicators

  • Buttons & Keys Type:
    • Hold Button
    • Mute Button
    • On/Off Button
    • Redial Button
    • Volume Control

Power Description

  • Input Voltage:
    • 22 V DC
    • 110 V AC
    • 220 V AC

Display & Graphics

  • Backlight: Yes
  • Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year
Extended Details
