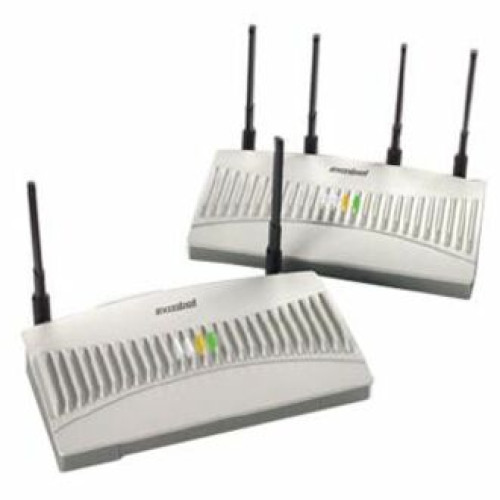

Symbol AP 5131 Access Point Part # AP-5131-13040-WW

The AP-5131 delivers a new level of simplicity and cost-efficiency to enterprise level high-performance wired and wireless networking. Remote employees in branch offices, small businesses, and telecommuters working from home enjoy secure connectivity to the Internet, corporate private network and more from desktops, laptops and other mobile devices. This all-in-one easy-to-deploy solution offers 802.11a/b/g wireless networking flexibility, the latest wired and wireless security standards, and the speed required to support the most demanding applications including voice and video. Engineered with built-in easy to use management tools and the rugged durability for nearly any environment, the AP-5131 is the ideal total networking solution for your smaller locations.

AP-5131-13040-WW - Symbol AP5131 Access Point

Part Details: AP5131, Dual Radio: Radio Only If using non PoE (Part# 50-14000-243R) and (Part# 50-16000-182R) are required. Antennas not included. See accessories.

Additional Information

Manufacturer Symbol
Product Condition New
  • 802.3af Power-over-Ethernet - Eliminates the need and associated cost of installing cabling and outlets to provide power
  • Industrial-grade mechanical design, UL 2043 Plenum rating Deployment flexibility including harsh environments with extended temperature range
  • Integrated router, firewall and DHCP server - Eliminates need to purchase and maintain multiple pieces of equipment
  • Mounts above or below ceiling tile, on wall, on desk - Flexibility to install where convenient, including invisible installation above ceiling tile
  • Triple methodology Rogue AP Detection: on-channel, mobile unit and dedicated radio dual-band scanning - Protects network by instantly identifying unauthorized users
  • Wi-Fi Multimedia (WMM) QoS and Voice - Prioritization Superior radio performance for mission critical applications including voice and video
  • Dual-radio, dual-band design, 802.11a/b/g in 2.4/5 GHz bands - Ability to work with any standards-based IEEE wireless LAN
  • Java web-based graphical user interface, Symbol Mobility Services Platform (MSP), SNMP v3, command line interface (CLI) - Flexible management options, easy-to-use anytime anywhere management
  • RoHS - Meets latest EU environmental standards
  • Supports 802.11i, WPA2 and WPA, IPSec with triple-DES encryption - End-to-end enterprise class security for transmission of data on the air and on the wire
  • WAN and LAN Ethernet ports - All-in-one solution for wired and wireless networking

Technical Information

  • Frequency Range:
    • 2.412 - 2.462GHz
    • 5.150 - 5.250GHz
    • 5.250 - 5.350GHz
    • 5.725 - 5.825GHz
  • Interfaces: 2 x 10/100Base-T Ethernet
  • Band:
    • 2.4GHz
    • 5GHz

General Information

  • Manufacturer: Symbol
  • Product Name: AP-5131 Wireless Access Point

Physical Characteristics

  • Mounting Configurations:
    • Ceiling Mount
    • Wall Mount

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL 60950-1
    • IEC
    • EN60950-1
    • UL2043
    • TUV GS
    • FCC
    • Industry Canada
    • CE
    • TELEC
    • WPA2
    • WMM


  • Additional Information:
    • Direct Sequence Spread Spectrum (DSSS)
    • Orthogonal Frequency Division Multiplexing (OFDM)
    • 2 ports (WAN, LAN) Auto-sensing 10/100Base-T Ethernet

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing


  • Manufacturer Warranty: 12 Month(s)
