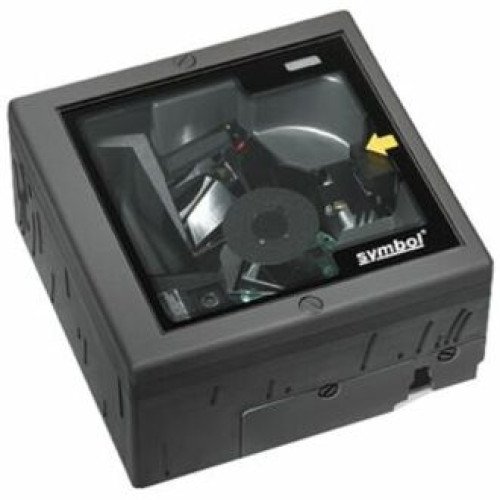

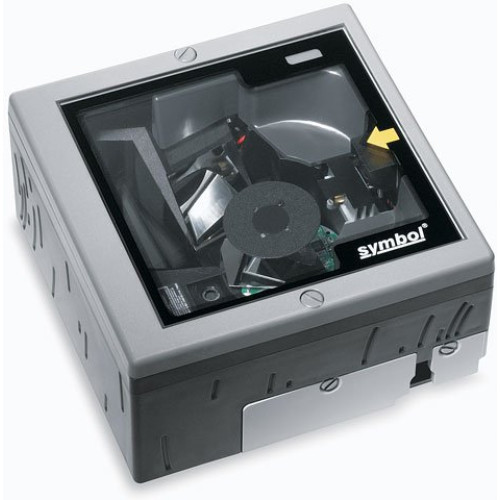

Symbol LS7808 Barcode Scanner
Part #: LS7808-BNNU0100ZR | SKU: SYM21031

The Motorola LS7808 is the latest countertop fixed scanner. Choose from a variety of connection options including USB, RS232, keyboard wedge and more. Electronic Article Surveillance (EAS) is included most configurations.

Symbol LS7808 Barcode Scanner

Part Details: LS7808, USB kit: Includes scanner with tin oxide glass top, EAS antenna, USB Cable, reference guide and product CD. Does not include power supply (Part# 50-14000-058R) or line cord. See accessories. Color: Black.

Need a different version of the Symbol LS7808 Barcode Scanner? View all 4 configurations

Additional Information

Color	Black
Connectivity	Corded
Embedded Scale	Scanner Only
Form Factor	In Counter
Glass Type	Tin Oxide
Included Cables	USB
Included Features	Scanner Only
Interface Options	USB
Manufacturer AIDC	Symbol
Model Name	LS7808
Scanner Capability	1D
Scanner Type	Laser, Omnidirectional

Symbol LS7808 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Scan Rate: 1800 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- Code 11
- RSS Variants
- UPC-E1
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- Code 11
- RSS Variants
- UPC-E1
Maximum Scan Resolution: 5 mil
Depth of Field:
- 0 mil - 0.50"@5 mil
- 0 mil - 4"@7.80 mil
- 0 mil - 5"@10.40 mil
- 0 mil - 7"@13 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS7808
Product Name: Symbol LS7808 Desktop Barcode Scanner
Product Line: Symbol

Physical Characteristics

Height: 3.1"
Width: 6"
Depth: 6"
Color: Black
Weight (Approximate): 1.90 lb

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- Symbol LS808 Barcode Reader
- Quick Reference Guide
- USB Type A Cable
- Product CD
- Symbol LS808 Barcode Reader
- Quick Reference Guide
- USB Type A Cable
- Product CD
Certifications & Standards:
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- Laser Safety:
- 21CFR1040.10 Class IIa
- EN 60825-1
- IEC60825-1 Class1
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022 Class B
- EN 55024
- Environmental:
- RoHS
- 2005 Sunrise
- WEEE
Additional Information:
- Supported Interfaces:
- SerialIBM 468X/469XKeyboard WedgeUSBSynapse

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 5 V DC

Extended Details
