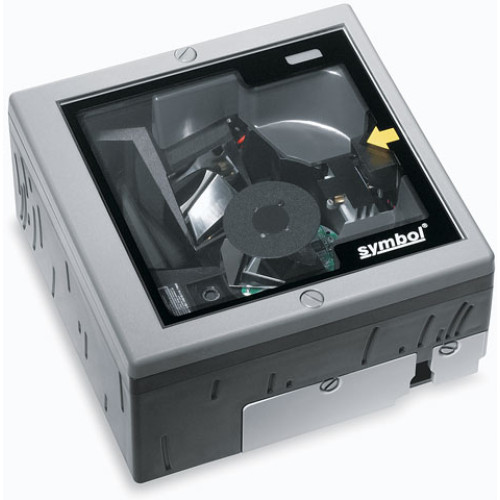

Symbol LS7808 Barcode Scanner

The LS7808 is Symbol's new in-counter mini-slot scanner designed to meet the needs of medium to high-traffic retail customers who require an omnidirectional, flush mounted scanning solution that reads bar codes quickly and easily and blends into their POS environment. A variety of connection options and an EAS system are standard.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Symbol LS7808 Specs (pdf)

Performance characteristics

Scan pattern
Omnidirectional

Minimum resolution
5 mil

Interfaces supported
IBM, Keyboard wedge, RS-232, Synapse, USB

Depth of field
0 to 6 in. (0 to 15cm) on 13 mil (100% UPC/EAN)

Decode capability
1-D, See data sheet for full list of supported symbologies

Technology
Laser

Physical characteristics

Dimensions
6 in. W x 6 in. L x 3.1 in. H152 mm W x 152 mm L x 79 mm H

Voltage and current2
5.0 Volts ± 5% @ 450mA (nominal)

Corded
Yes

Weight
1.9 lbs/0.85 kg

Hands-free
Yes

Regulatory specifications

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

EMI/RFI
EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

Laser/LED Safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

Environmental
RoHS Directive 2002/95/EEC

User environment

Operating temperature
32° to 104° F/0° to 40° C

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Storage temperature
-40° to 140° F/-40° to 60° C

Extended Details

Refine Your Options

Symbol LS7808 Barcode Scanner
Part #: LS7808-SR20007TCR | SKU: SYM21022

LS7808, Includes black plastic bezel, tin oxide glass top, EAS antenna and Quick Reference Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Symbol LS7808 Barcode Scanner
Part #: LS7808-SR20008SNR | SKU: SYM21023

LS7808, Includes stainless steel bezel, tin oxide glass top and Quick Reference Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Symbol LS7808 Barcode Scanner
Part #: LS7808-BNNU0100ZR | SKU: SYM21031

LS7808, USB kit: Includes scanner with tin oxide glass top, EAS antenna, USB Cable, reference guide and product CD. Does not include power supply (Part# 50-14000-058R) or line cord. See accessories. Color: Black.
Symbol LS7808 Barcode Scanner
Part #: LS7808-SR20009SCR | SKU: SYM67704

LS7808, HORZ SLOT SCAN SS black BZL S GLASS EAS ANT RSM QCKREF

Recommended Accessories for Model: Symbol LS7808 Barcode Scanner

Zebra 23844-00-00R Power Device
Part #: 23844-00-00R | SKU: ZEB26223

Power Device - Zebra - AC Line Cord - Grounded - 7.5 Feet Or 2.3 Meters - 3-Prong - Associated Countries - Canada - Mexico - United States.

MSRP: $17.94 Price: $15.76

In Stock
Zebra 50-16000-182R Power Device
Part #: 50-16000-182R | SKU: ZEB21798

Power Device - Zebra - AC Line Cord - 6 Feet Or 1.8 Meters - Ungrounded - 2-Prong - Nema 1-15 Plug - Associated Country - United States.

Price: $8.24

In Stock
Zebra CBA-U01-S07ZAR Cables, Connectors, and Adapters
Part #: CBA-U01-S07ZAR | SKU: ZEB26306

Cables - Connectors - and Adapters - Zebra - Cable - USB - Series A Connector - 7' (2.1M) Straight

Price: $46.76

In Stock
Motorola LS7808 Accessory
Part #: 12-17206-03 | SKU: MOT148479

LS7808 Accessories, Mounting Bucket For Ls7808
Zebra CBA-K01-S07PAR Cables, Connectors, and Adapters
Part #: CBA-K01-S07PAR | SKU: ZEB27495

Cables - Connectors - and Adapters - Zebra - Cable - Keyboard Wedge - 7' (2.1M) Straight - PS/2 Power Port
