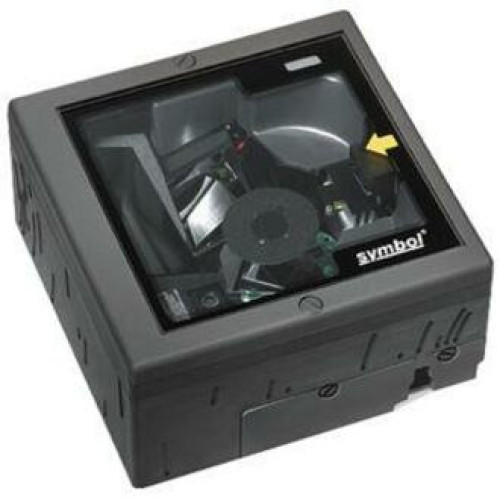

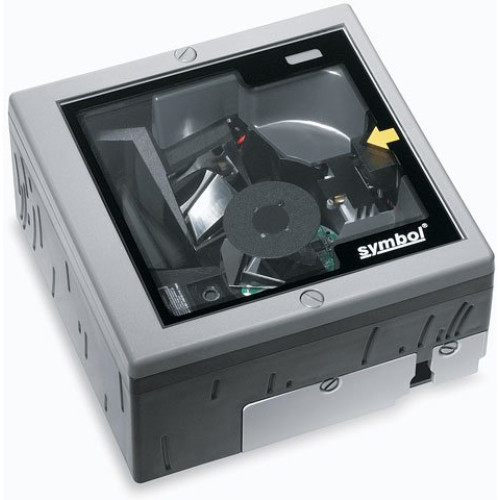

Symbol LS7808 Barcode Scanner
Part #: LS7808-SR20007TCR | SKU: SYM21022

The Motorola LS7808 is the latest countertop fixed scanner. Choose from a variety of connection options including USB, RS232, keyboard wedge and more. Electronic Article Surveillance (EAS) is included most configurations.

Symbol LS7808 Barcode Scanner

Part Details: LS7808, Includes black plastic bezel, tin oxide glass top, EAS antenna and Quick Reference Guide. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

Need a different version of the Symbol LS7808 Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer	Symbol
Model Name	LS7808
Scanner Capability	1D

Symbol LS7808 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Omni-directional
Scan Rate: 1800 scan/s
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- Code 11
- RSS Variants
- UPC-E1
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UPC/EAN Supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- Code 11
- RSS Variants
- UPC-E1
Maximum Scan Resolution: 5 mil
Depth of Field:
- 0 mil - 0.50"@5 mil
- 0 mil - 4"@7.80 mil
- 0 mil - 5"@10.40 mil
- 0 mil - 7"@13 mil

General Information

Product Type: Desktop Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS7808
Product Name: Symbol LS 7808 Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 3.1"
Width: 6"
Depth: 6"
Color: Black
Weight (Approximate): 1.90 lb

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- Symbol LS808 Barcode Reader
- Quick Reference Guide
- Symbol LS808 Barcode Reader
- Quick Reference Guide
Certifications & Standards:
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- Laser Safety:
- 21CFR1040.10 Class IIa
- EN 60825-1
- IEC60825-1 Class1
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022 Class B
- EN 55024
- Environmental:
- RoHS
- 2005 Sunrise
- WEEE
Additional Information:
- Supported Interfaces:
- Serial
- IBM 468X/469X
- Keyboard Wedge
- USB
- Synapse

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 5 V DC

Extended Details
