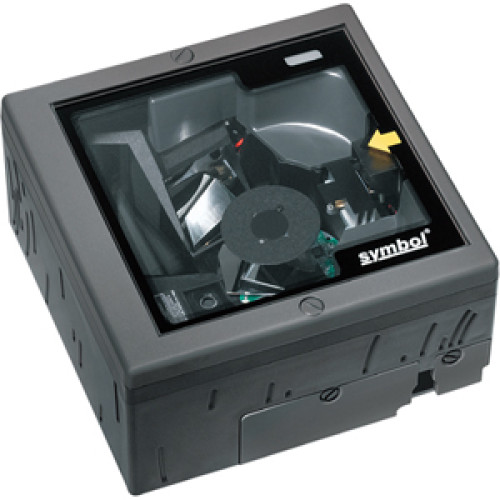

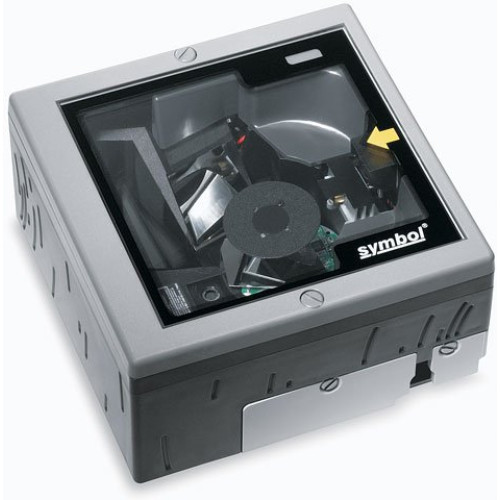

Symbol LS7808 Barcode Scanner
Part #: LS7808-SR20009SCR | SKU: SYM67704

The Motorola LS7808 is the latest countertop fixed scanner. Choose from a variety of connection options including USB, RS232, keyboard wedge and more. Electronic Article Surveillance (EAS) is included most configurations.

Symbol LS7808 Barcode Scanner

Part Details: LS7808, HORZ SLOT SCAN SS black BZL S GLASS EAS ANT RSM QCKREF

Need a different version of the Symbol LS7808 Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer	Symbol
Model Name	LS7808
Scanner Capability	1D

Symbol LS7808 Specs (pdf)

Technical Information

Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- UPC EI
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- UPC/EAN with supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- RSS Variants
- UPC-A
- UPC-E
- UPC EI
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- UPC/EAN with supplementals
- Code 39
- Code 39 Full ASCII
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 128
- UCC/EAN 128
- ISBT 128
- Codabar (NW7)
- Code 93
- RSS Variants
Maximum Scan Resolution: 5 mil
Depth of Field: 0 mil - 6"@ - 100% UPC/EAN

General Information

Product Type: In-counter Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS7808
Product Name: Symbol LS 7808 Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 3.1"
Width: 6"
Depth: 6"
Color: Black
Weight (Approximate): 1.87 lb

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Package Contents:
- LS7808 Barcode Reader
- Sapphire Glass
- Quick Reference Guide
- Stainless Steel/Twilight Black Bezel
- EAS antenna
- RSM
- LS7808 Barcode Reader
- Sapphire Glass
- Quick Reference Guide
- Stainless Steel/Twilight Black Bezel
- EAS antenna
- RSM
Certifications & Standards:
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- Laser Safety:
- 21CFR1040.10 Class IIa
- EN 60825-1
- IEC60825-1 Class1
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- EN 55022 Class B
- EN 55024
- Environmental:
- RoHS compliant
- 2005 Sunrise compliant
- WEEE compliant
Additional Information:
- Supported Interfaces:
- SerialIBM 468X/469XKeyboard WedgeUSB

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 5 V DC
