| Display Resolution | 320 x 320 |
|---|---|
| IP Rating | IP54 |
| Manufacturer | Symbol |
| Model Name | MC3000 |
| Operating System | Windows CE 5.0 Pro |
| RAM Memory | 64 MB |
| Scanner Type | Laser |
| Style | Full-size |

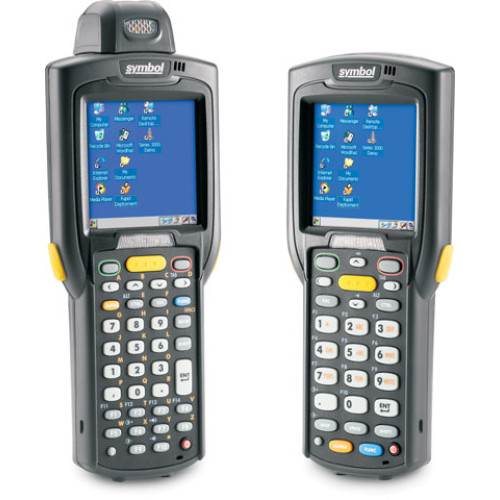

Symbol MC3000 Specs
Technical Information
- Operating System: Windows CE Professional 5.0
- Processor: Intel PXA270 XScale 520MHz
- Data Collection Type: Batch
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-3
- EAN-13
- EAN-128
- Interleaved 2 of 5
- UPC/EAN Supplementals
- UPC-A
- UPC-E
General Information
Physical Characteristics
- Display: Color QVGA - Transflective TFT LCD
- Display Resolution: 320 x 320
- User Accessible Expansion Slot: SD Card Slot
- Keyboard: 38 Key Numeric Function Shift Alpha Integrated
- Battery Capacity: 2600 mAh
- Battery Type: Lithium Polymer
- Dimensions: 3.18" (81mm) x 8.33" (212mm) x 1.57" (40mm)
- Weight: 12.9 oz
Environmental Conditions
- Environmental Sealing: IP54
- Temperature:
- -10°C (14°F) to 50°C (122°F) Operating
- -30°C (-22°F) to 70°C (158°F) Storage
- 0°C (32°F) to 40°C (104°F) Charging
- Humidity: 5 to 95% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 4ft To Concrete Multiple at Operating Temprature
- Tumble: 500 one-half meter tumbles at room temperature (1000 drops)
Other
- Additional Information:
- Form Factor: Rotating (Turret) Head OS Language: English
- Form Factor: Rotating (Turret) HeadOS Language: English
- Package Contents: MC3000-R Mobile Computer Strap/Door Assembly Stylus Regulatory Guide Quick Start Guide
Agency Approvals
- Agency Approvals:
- RoHS Compliance Electrical Safety: UL60950 CSA C22.2 No. 60950 EN60950/IEC 950 EMI/RFI: EU: EN55022 Class B EN55024 Japan: CISPR 22 Class B Australia: AS3548 North America: FCC Part 15 ICES 003 Class B Laser Safety: IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
- RoHS ComplianceElectrical Safety:UL60950 CSA C22.2 No. 60950 EN60950/IEC 950EMI/RFI:EU: EN55022 Class B EN55024 Japan: CISPR 22 Class B Australia: AS3548 North America: FCC Part 15 ICES 003 Class BLaser Safety:IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
Memory
- RAM Memory: 64MB
- Flash Memory: 64MB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
