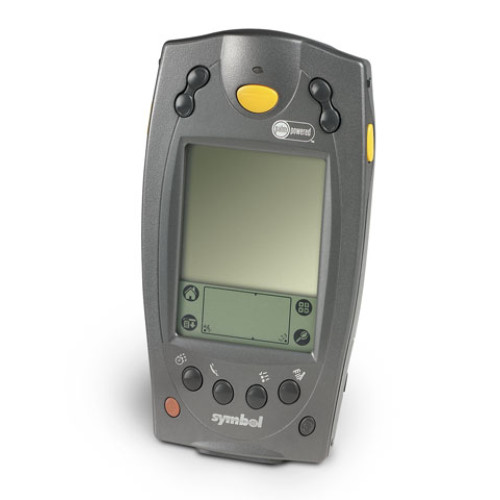

Symbol SPT 1846 Mobile Computer
Part #: SPT1846-TKG804US | SKU: SYM5455

The SPT 1846 replaces the SPT1746. Twice the processor speed 4-8 8-16 memory configurations Improved display Backup battery Voice over GSM worldwide Non-incentive (non-explosive) - US Class 1 Div 2 ABCD.

Symbol SPT 1846 Mobile Computer

Part Details: SPT 1846, 8MB RAM, 802.11b, monochrome display. Includes scanner, battery, & product reference guide. Order cradle separately. See accessories.

Need a different version of the Symbol SPT 1846 Mobile Computer? View all 1 configurations

Additional Information

Display Resolution	160 x 160
Manufacturer	Symbol
Model Name	SPT 1846
Operating System	Palm
RAM Memory	8 MB
Scanner Type	Laser
Style	Phone-size

Symbol SPT 1846 Specs (pdf)

Technical Information

Operating System: Palm OS 4.x
Processor: DragonBall VZ 33MHz
Data Collection Type: Wireless
Symbologies Supported:
- Bookland EAN
- Codabar
- Code 128
- Code 39
- Code 93
- Coupon Code
- Discrete 2 of 5
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- MSI/PLESSEY
- Trioptic Code 39
- UCC/EAN 128
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- UPC EI

General Information

Manufacturer: Symbol
Product Name: SPT 1846 Pocketable Computer

Physical Characteristics

Display: Grayscale - LCD
Display Resolution: 160 x 160
Keyboard: None
Battery Capacity: 1550 mAh
Battery Type: Lithium Ion
Dimensions: 1" (25mm) x 3.625" (92mm) x 7" (178mm)
Weight: 12.2 oz - including battery

Agency Approvals

Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No. 950
- EN60950:1992/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class II
- IEC Class II
- Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class I, Division II, Groups A, B,C,D

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 50Â°C (122Â°F) Storage
Humidity: 5 to 90% Non-condensing
Electrostatic Discharge (ESD):
- 8kVdc Air Discharge
- 4kVdc Contact Discharge
Drop Spec: 4' To Concrete

Wireless Data Communications

Network Connectivity:
- WLAN 802.11b
- WPAN IrDA
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 8MB
Flash Memory: 4MB

Warranty

Manufacturer Warranty: 1 Year(s)

Extended Details
