Rugged Mobility, Efficient Data Management and the Power of
Palm™

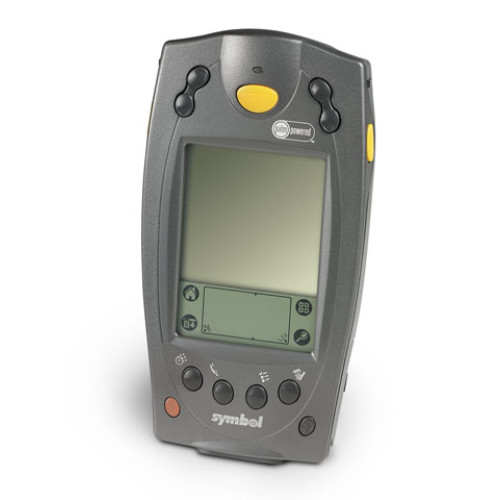

The SPT 1846 Series of pen-notepad computers offers the most
advanced Palm Powered™ solution for your work force.
This family of rugged mobile computers combines integrated
scanning, sophisticated wireless connectivity and powerful
processing capability with the Palm OS® platform. With
1-D bar code data capture and wireless local area network (WLAN) or
wireless wide area network (WWAN) communications, the SPT 1846
Series is a powerful productivity-enhancing tool, serving the
multiple needs of today's growing mobile workforce.
Tackle Tough Environments
Tough enough for use in manufacturing and industrial
environments, the SPT 1846 Series enables the Palm OS to perform
practically anywhere. The rugged SPT 18XX housing is sealed to IP54
standards for protection against rain and dust, and withstands 4
ft./1.2 m drops to concrete. Symbol's state-of-the-art scan engine
with bright, easy to see scan line, delivers premium scanning
performance under virtually any lighting condition–even sunlight or
bright artificial light. A high-contrast, anti-reflective liquid
crystal display makes data easy to read in low lighting or outdoor
conditions. Integrated WLAN or WWAN communication extends the reach
of IT resources, enabling real-time information flow between the
point of activity and your remote host system, making your business
truly mobile.
Empower Your Work Force
The combination of rugged durability, integrated bar code
scanning and wireless communication enables users in a host of
industries to capture, compute and communicate data anytime,
anywhere. As shipments are unloaded, warehouse management can
easily record new inventory levels to networked host systems.
Service professionals in hospitality can offer curbside check-in at
hotels, and hospital physicians and caregivers can have the latest
patient data at hand.
Law enforcement officers can scan vehicle registration or
drivers' licenses to gather information immediately, and wireless
WAN communication enables them to send and receive information from
the point of activity. In retail, when coupled with a magnetic
stripe reader and portable printer, the SPT 1846 becomes a portable
point-of-sale device, and, for scan-intensive tasks, an attachable
handle converts the SPT 1846 into an ergonomic pistol grip
design.
Mobile Solutions
The SPT 1846 supports Symbol's AirBEAM software suite. This
comprehensive set of mobility management tools maximizes the
availability, security and effectiveness of your wireless network
investment. This mobile client management solution delivers
flexibility to meet your needs while dramatically reducing your
wireless network operation costs. In addition, industry standard
Kerberos provides both user authentication and encryption key
management to guard wired networks from all forms of attacks on
data in transmission, including interruption, interception,
modification and fabrication.
Deployment of the SPT 1846 can help increase efficiency and
productivity in your business, and a complete line of accessories
and peripherals are available to create a total mobile solution. To
learn more about the SPT 1846 Series or any of our innovative
products, contact us at any of the locations listed on the back
panel or visit us at www.symbol.com/palm.
SPT 1846 Features
|
SPT 1846 Benefits
|
|
Spectrum24® Wireless LAN connectivity option
|
Enables full mobility with real-time data transmission to and
from network information systems
|
Wireless WAN connectivity
|
Extends access to information beyond the enterprise
|
Supports Symbol's AirBEAM® suite of mobility
management tools
|
Maximizes the availability, security and effectiveness of your
wireless network investment
|
Kerberos security—industry standard authentication, key
distribution and encryption
|
Advanced security with fast roaming for mobile data
applications
|
Rugged housing meets IP54 Standards
|
Withstands typical workday usage and tough industrial
environments
|
Integrated miniature scan engine
|
Fast, reliable bar code scanning delivers increased efficiency
and accurate data capture
|
8 or 16 MB of RAM and 4 MB of ROM
|
Accommodates application needs and memory demands
|
High-contrast liquid crystal display with enhanced backlight
|
Offers increased visibility for user comfort and acceptance
|
Rechargeable Lithium-Ion battery plus a 1-hour Ni-MH backup
battery
|
Long battery life enables full workday capacity plus extended
backup ensures against data loss*
|
Supports single-slot serial and modem cradles/multi-slot serial
and Ethernet cradles
|
Flexible host communications conveniently support various
network environments
|
|
*
Actual battery life may vary under different usage
conditions.
SPT 1846 Specification Highlights
Dimensions:
|
1 in. H x 3-5/8 in. W x 7 in. L 25.4 mm H x 92 mm W x 177.8 mm
L
|
Weight (including battery):
|
Batch version: 10.6 oz/300 gm; Wireless version: 12.2 oz./346
gm
|
Battery:
|
3.7 V, 1550 mAh rechargeable Lithium-Ion
|
Drop Specification:
|
4 ft./1.2 m to concrete
|
Environmental Sealing:
|
IP54 (windblown dust and rain)
|
Display:
|
High contrast, anti-reflective 160 x 160 monochrome LCD
display
|
Operating Temperature:
|
-4º to 122ºF/-20º to 50ºC
|
Storage Temperature:
|
-13º to 122ºF/-25º to 50ºC
|
Humidity:
|
5% to 90% RH noncondensing
|
Electrostatic Discharge (ESD):
|
8kVdc air, 4kVdc contact
|
|
Performance Characteristics
|
|
|
CPU:
|
DragonBall VZ – 33 MHz
|
Operating System:
|
Palm OS® 4.X
|
Memory:
|
8 MB RAM / 4 MB ROM 16 MB RAM / 4MB ROM (Batch version only)
|
Application Development:
|
AppForge, CodeWarrior, MCL, GCC, and SatelliteForms
|
Flash Tools:
|
ImagePro
|
Communications:
|
IrDA 1.0
|
Decode Capability:
|
Bookland EAN, Codabar, Code 128, Code 39, Code 93, Coupon Code,
Discrete 2 of 5, EAN-13, EAN-8, Interleaved 2 of 5, ISBT128, MSI
Plessey, Tri-optic Code 39, UCC/EAN 128, UPC/EAN Supplementals,
UPC-A, UPC-E, UPC-E1
|
|
Wireless Local Area Network Characteristics
|
|
|
Wireless Local Area Network:
|
Symbol Spectrum24® IEEE 802.11 airwaves standard compliant /
IEEE 802.11b
|
Radio Transmission Technique:
|
Frequency Hopping / Direct Sequence
|
Data Rate:
|
2 Mbps / 11 Mbps
|
Antenna:
|
Internal
|
Range:
|
Open space: up to 1000 ft./303 m Typical: 180 to 250 ft./54 to
76 m
|
Typical:
|
180 to 250 ft./54 to 76 m
|
Output Power:
|
500mW U.S.; 100 mW International
|
Frequency Range:
|
Country dependent, typically 2.4 to 2.5 GHz
|
|
Wireless Wide Area Network Characteristics
|
|
|
Network:
|
CDPD - 900 MHz
|
Output Power:
|
CDPD 600MW
|
Data Range:
|
CDPD up to 19.2 Kbps
|
Antenna:
|
External
|
Frequency Range:
|
CDPD 824-894 MHz
|
|
SPT 1846 Peripherals and Accessories
|
|
|
Cradles:
|
Vehicle, modem, single/four-slot serial, four-slot charge only
and four-slot Ethernet
|
Communication and Charging Cradles:
|
Serial/charging in terminal battery
|
Trigger Handle:
|
Via serial connection, attaches and converts SPT 18XX into a gun
style device for scan-intensive applications
|
Magnetic Stripe Reader (MSR):
|
Serial connection for MSR readability
|
4-Slot Universal Battery Charger (UBC):
|
Recharges multiple batteries; battery adapter: used with
Symbol's Universal Battery Charger
|
|
O'Neil:
|
CBL-PT00100-ON1, CBL-PT00100-ON2
|
Paxar/Monarch:
|
CBL-1700-100-MON1, CBL-1700-100-MON2
|
Zebra/Comtec:
|
CBL-1700-100-CTC, CBL-1700-100-ELT
|
|
Electrical Safety:
|
Certified to UL 1950, CSA C22.2 No. 950;EN60950:1992/IEC950
|
EMI/RFI:
|
FCC Part 15 Class B, ICES-003 Class B, European Union EMC
Directive, Australian SMA
|
Laser Safety:
|
CDRH Class II, IEC Class II
|
Hazardous Certified:
|
Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class
I, Division II, Groups A, B,C,D SPT1800-TRG80400
SPT1846-TKG804US
|
|
