The 3S40: Limitless Vision. See the Zebra difference. Explore further at www.zebra.com/3S-series
Manufacturing and logistics have to handle a growing volume of products swiftly, maintaining high standards of yield, quality, and efficiency. Introducing 3D imaging scanners can significantly enhance productivity and throughput. As businesses deal with diverse products, robust machine vision technology becomes essential for larger items.

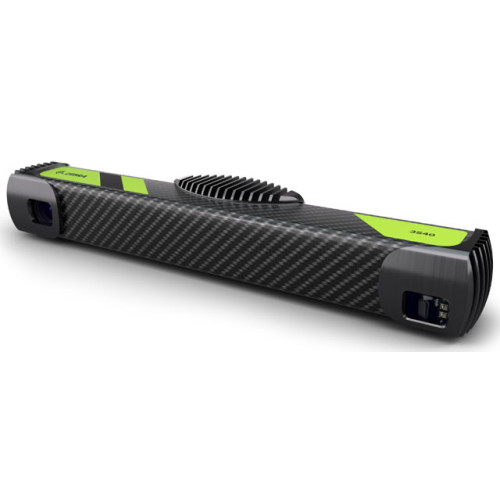

Introducing the Zebra 3S40 3D Sensor
With an impressive 3D scanning range, Zebra’s 3S40 3D sensor ensures top-notch resolution and precision, facilitating tasks like depalletization and the dimensioning and inspection of large items.
Leveraging structured light technology, the 3S40 captures 1.5 million points (1440 x 1080) in 450 milliseconds, producing detailed point clouds and per-pixel accuracy. Its ambient light suppression further enhances the output.
The camera's extensive range and field of view (FoV) provide flexibility in scanning objects of various sizes. It can cover FoVs from 723 x 530 mm to 1626 x 1312 mm within a 1,280-mm range.
Features at a Glance
- Simple Integration – Unified with Zebra’s 4Sight EV7 controller and Aurora software for accurate high-density point cloud capture upon pointing the 3S40 sensor at a scene.
- Extensive scanning capacity – Ranges up to two meters to accommodate large and minute objects.
- Advanced Ambient Light Suppression – Utilizes 1.5-MP structured light scanning with laser projection for exceptional results.
- PoE and 24V power options – A sole PoE cable provides power and data linkage.
- Lightweight and energy-savvy – The 3S40 3D sensor’s low weight allows easy mounting on robotic arms for precise operations.
- Dustproof and waterproof – Rated IP65 for dust-tight and water jet protection from all angles.
Effortless Setup and Operation
Zebra’s Aurora Design Assistant and Aurora Vision Studio simplify the deployment and operation of applications, removing the need to learn multiple software environments. They offer extensive toolsets for image capture, processing, analysis, and more.
Enhance Solutions with Advanced Learning
Utilize Zebra’s cutting-edge deep learning tools with the 3S40 to solve complex machine vision challenges that standard tools may struggle with. Detect and address intricate surface defects and improve the efficiency and quality of your operations.
High Performance, Simplified Use
Zebra’s 3S40 3D sensor adheres to GigE Vision standards for seamless integration with existing machine vision setups. The PoE+ option simplifies power and data connections into a single cable, allowing plug-and-play functionality for capturing high-density point clouds.
Powered by Zebra Aurora™ Software
The 3S40 3D sensor is equipped with Zebra Aurora Design Assistant™ or Zebra Aurora Vision Studio™ software for quick setup and deployment of complex machine vision tasks. For demanding applications, Zebra’s 4Sight EV7 controller provides robust support.
Zebra 3S40 Specs
Refine Your Options
-

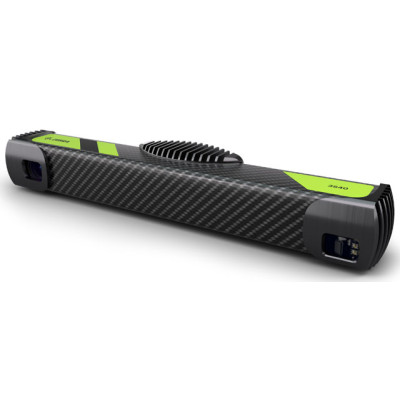

Zebra 3S40-4L Sensor
Part #: 3S40-4LKIT0-EV7DA | SKU: ZEB755337Sensor - Zebra 3S40-4L - 3S40 Kit With 4Sight EV7 And Design Assistant - 3S40 3D Structured-Light Sensor For Static Scanning (Field Of View Of 1091mm X 761mm @ 1245mm - With 1.5 Million Of Points At 2 fps) With 4Sight EV7 Computer - Pre-Loaded With Aurora Design Assistant Fully Licensed - And Accessories. -
Zebra 3S40-4L Sensor
Part #: 3S40-4LKIT0-000DA | SKU: ZEB755340Sensor - Zebra 3S40-4L - 3S40 Kit With Design Assistant - 3S40 3D Structured-Light Sensor For Static Scanning (Field Of View Of 1091mm X 761mm @ 1245mm - With 1.5 Million Of Points At 2 fps) With A Full License Of Aurora Design Assistant Design-Time And Run-Time - And Accessories.
