Zebra 3S40-4L Sensor
Part #: 3S40-4LKIT0-000DA | SKU: ZEB755340

Enhance Your Industrial Workflow with the Zebra 3S40

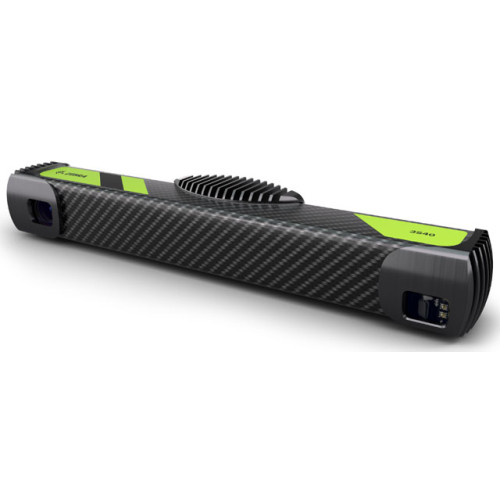

Optimize your industrial processes with the Zebra 3S40 3D sensor. This innovative device offers exceptional 3D imaging precision, making it ideal for quality control and automation tasks. Built to withstand harsh environments, the 3S40 ensures reliable performance and enhanced productivity. Trust Zebra’s technology to deliver consistent and accurate results for your critical applications.

Benefits:

Exceptional 3D imaging precision
Reliable performance in harsh environments
Perfect for quality control and automation
Increased productivity and efficiency

Technical Specifications:

Resolution: 1280 x 960 pixels
Field of View: 70° x 53°
Measurement Range: 0.2m to 2m
Frame Rate: Up to 30 fps
Interface: USB 3.0
Operating Temperature: -10°C to 50°C
IP Rating: IP65

Zebra 3S40-4L Sensor

Part Details: Sensor - Zebra 3S40-4L - 3S40 Kit With Design Assistant - 3S40 3D Structured-Light Sensor For Static Scanning (Field Of View Of 1091mm X 761mm @ 1245mm - With 1.5 Million Of Points At 2 fps) With A Full License Of Aurora Design Assistant Design-Time And Run-Time - And Accessories.

Need a different version of the Zebra 3S40 Sensor? View all 2 configurations

Additional Information

Manufacturer	Zebra
Model Name	3S40

Zebra 3S40 Specs (pdf)

Zebra 3S40-4L Sensor Part #: 3S40-4LKIT0-000DA | SKU: ZEB755340
