Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer Zebra 170Xi4 Barcode Label Printer

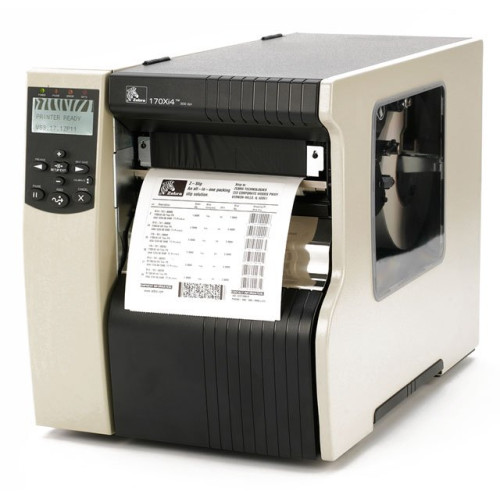

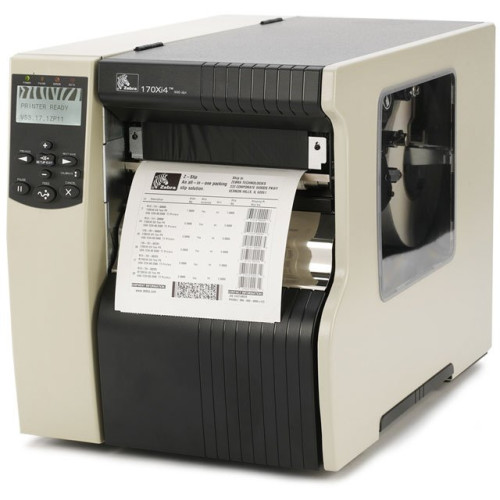

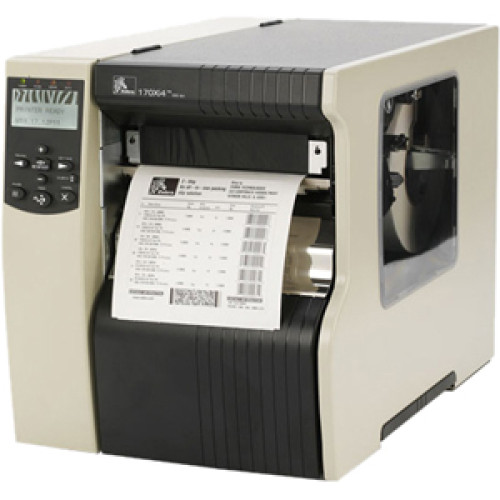

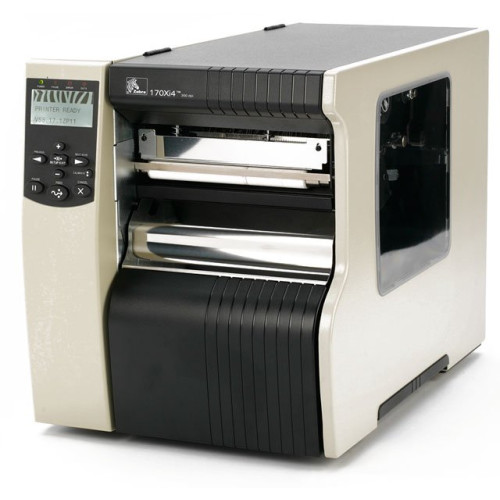

Zebra 170Xi4 Barcode Label Printer
Part #: 170-801-00210 | SKU: ZEB87154

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.

Zebra 170Xi4 Barcode Label Printer

Part Details: Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 64MB Flash, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Need a different version of the Zebra 170Xi4 Barcode Label Printer? View all 22 configurations

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer Zebra
Max Roll Outer Diameter 8
Model Name 170Xi4
Print Resolution 300 dpi, 305 dpi
Print Speed 12 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Zebra 170Xi4 Specs Zebra 170Xi4 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Rewind
    • Peel Facility
    • Clear Media Side Door
    • Mirror Printing
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • ISBT-128
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Aztec Code
    • QR Code
    • TLC 39
    • Data Matrix
    • Codablock
    • Code 49
    • Maxi Code
    • Micro PDF
    • PDF-417
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170Xi4
  • Product Name: 170Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 67 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Platform Supported: PC
  • Package Contents:
    • 170Xi4 Label Printer
    • North American Edition 120 VAC Power Cord
    • 170Xi4 Label Printer
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • Unicode
    • BSMI
    • cTUVus
    • CCC
    • CE
    • C-Tick
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • KCC
    • NOM
    • S Mark
    • STB
    • UkrSEPRO
    • VCCI
    • ZIK

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Roll Fed
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
