model-4021 Zebra

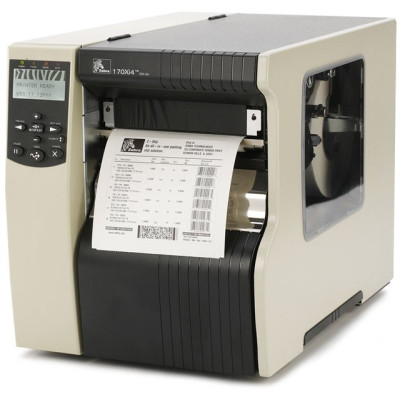

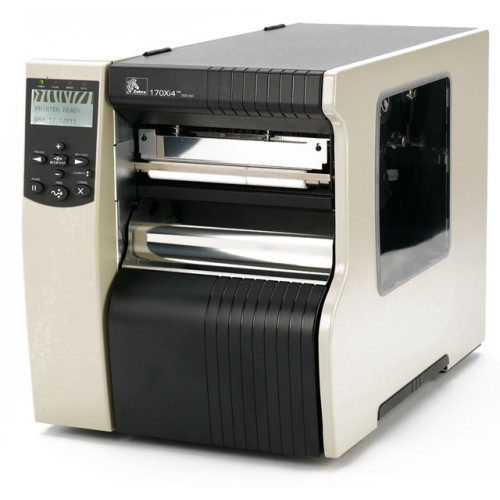

Zebra 170Xi4 Printer

The industrial-strength Zebra 170Xi4 with 203- or 300 dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 MHz RISC processor
  • 16 MB SDRAM, 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Starting At: $2,373.75

View all options

Refine Your Options
Shop By
Shopping Options
Category
  1. Thermal Transfer Bar Code Printer (31)
  2. Industrial Bar Code Printer (31)
Manufacturer
  1. Zebra (70)
Interface Options
  1. Ethernet (1)
  2. Parallel (9)
  3. Serial (8)
  4. USB (7)
  5. Wireless (5)
Show Less Show More
Printer Type
  1. Industrial (31)
Included Features
  1. ZPL2 (1)
  2. Rewinder (1)
Maximum Print Width
  1. 6.60 (31)
Labels Per Day
  1. more than 10,000 (3)
Print Speed
  1. 12 (31)
  1. 170-801-00200 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    $5,637.00 $4,791.45
    Ships Today
    Free Shipping
    - +
  2. 170-801-00000 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal Transfer Industrial Printer, 300 dpi, 6.6" max print width, 16MB SDRAM, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, Clear Media Side Door & Media Hanger, and US Power Cord. Cables sold separately. See accessories.
    $5,260.00 $4,471.00
    Ships Today
    Free Shipping
    - +
  3. 172-801-00000 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    $5,065.00 $4,305.25
    Ships Today
    Free Shipping
    - +
  4. 170-801-00100 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    $6,020.00 $5,117.00
    Ships Today
    Free Shipping
    - +
  5. 172-801-00200 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    $5,445.00 $4,628.25
    Ships Today
    Free Shipping
    - +
  6. 172-801-00100 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    $5,828.00 $4,953.80
    Ships Today
    Free Shipping
    - +
  7. 170-8K1-00100 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer printer, 300 dpi, 6.6" print width, tear bar, cutter, RS-232 serial, USB 2.0, Centronics parallel, internal ZebraNet 10/100 print server, 64MB FLASH memory, ZPL II, XML, clear media side door, printhead element out detection, media supply hanger, Includes North America power cord
    $6,497.00 $5,522.45
    Ships Today
    Free Shipping
    - +
  8. 170-851-00201 - Zebra 170Xi4 Bar code Printer

    170Xi4, 17OXI4,300 DPI, API, Serial, Parallel, USB 10/100 PRINTSERVER 3 MEDIA
    Free Shipping
  9. 172-806-00000 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Printer, 6" print width, 203 dpi, RS-232/Parallel/USB/Ethernet interfaces, Australian power cord, 16MB. Does not include necessary interface cables.
    Free Shipping
  10. 170-8E1-00100 - Zebra 170Xi4 Bar code Printer

    170Xi4, Thermal transfer Industrial Printer (300 dpi, Wi-Fi Ready (Radio Card Not Included), Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
    Free Shipping

Items 1 to 10 of 70 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. ...
  7. 7

Recommended Accessories

Recommended Labels

Recommended Printheads  | View All Options

Recommended Ribbons  | View All Options

  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK11045)

    5586 Premium Wax-Resin, 4.33" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK11045-R)
    $288.19
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK04045)

    5586 Premium Wax-Resin, 1.57" x 1,476' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 6 ribbon case. Used with polypropylene labels. Also available as a single roll (Part# 05586BK04045-R).
    $104.59
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08945)

    5586 Premium Wax-Resin, 3.5" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08945-R)
    $233.06
    Ships Today
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK10245)

    5586 Premium Wax-Resin, 4" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK10245-R)
    $267.69
    Ships In 3-5 Days
    - +
  • Zebra 5586 Premium Wax-Resin Ribbon (05586BK08345)

    5586 Premium Wax-Resin, 3.27" x 1476' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 6, Core Size: 1", Available as a single roll (05586BK08345-R)
    $217.93
    Ships Today
    - +

Recommended Warranties

  • Zebra 110Xi4 Service Contract (Z1RS-XI41-2C0)

    Service Contract - 2 year, Select, Renewal, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $815.00 $628.46
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1A2-XI41-300)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $1,060.00 $817.37
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1R2-XI41-2C0)

    Service Contract - 2 year, Essential, Renewal, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 2 Years, Comprehensive
    $1,220.00 $940.75
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AS-XI41-300)

    Service Contract - 3 year, Select, Purchased within 30 days of Device, Advanced Exchange, 110Xi4, 140Xi4, 170Xi4, 3 Years, Non-Comprehensive
    $560.00 $431.82
    Ships In 3-5 Days
    Free Shipping
    - +
  • Zebra 110Xi4 Service Contract (Z1AF-XI41-3C0)

    Service Contract - 3 year, Essential, Purchased within 30 days of Device, NBD TAT, NA MX only, 110Xi4, 140Xi4, 170Xi4, 3 Years, Comprehensive
    $785.00 $605.33
    Ships In 3-5 Days
    Free Shipping
    - +

STANDARD FEATURES

  • Print methods: Thermal transfer or direct thermal
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor

More Standard Features
  • 16 MB SDRAM; 8 MB non-volatile Flash memory
  • Automatic media/ribbon sensing capability
  • Improved head test for element out
  • Auto calibration
  • Clear media side door for ease of supplies monitoring
  • 300 unique darkness settings
  • RS-232, Parallel ports
  • USB 2.0 port
  • Internal ZebraNet 10/100 PrintServer
  • ZPL or ZPL II Programming Language
  • XML enabled printing
  • Mirror feature allows user-defined printer configurations to be retrieved from the network
  • Create and design customizable printer LCD menus
  • Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
  • Transmissive and reflective media sensors
  • Multi-level Element Energy Equalizer (E3) for superior print quality
  • Unicode™ - Compliant
  • Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

  • 16 MB SDRAM
  • 8 MB Flash

Print width: 6.6" (168mm)
Print length: 150" (3810 mm) using continuous media
Print speed: Up to 12" per second (203 dpi)
Media sensors: Reflective, Transmissive


Media Characteristics

Maximum label and liner width: 7.1" (180mm)
Minimum label and liner width: 2.0" (51mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media
Maximum roll diameter: 8" (203mm)
Core diameter: 3" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: black mark, continuous, roll-fed, die-cut, fanfold


Ribbon Characteristics

Outside diameter: 3.2" (81.3mm)
Standard length: 1476' (450m) or 984' (300m)
Ratio: 2:1 and 3:1 media roll to ribbon ratios
Ribbon width: 2.0" (51mm) to 6.7" (170mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)


Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20% to 85% non-condensing relative humidity
Storage humidity: 5% to 85% non-condensing relative humidity
Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz
Agency approvals

  • BSMI
  • cTUVus
  • CCC
  • CE
  • C-Tick
  • EN55022 Class B
  • EN55024
  • EN61000-3-2,3
  • FCC Class B
  • GOST-R
  • ICES-003 Class B
  • IEC 60950-1 / EN60950
  • KCC
  • NOM
  • S Mark
  • STB
  • UkrSEPRO
  • VCCI
  • ZIK

Physical Characteristics

Width: 13.31" (338.1mm)
Height: 15.5"" (393.7mm mm)
Depth: 20.38" (517.5 mm)
Weight: 67 lbs (30.5 kg)


Related Products

Options

  • ZebraNet Wireless Plus Print Server
  • ZebraNet Internal Wireless Plus (Discontinued)
  • Internal IPv6 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Rewind with peel
  • Cutter
  • Bi-fold media door with clear panel
  • Media supply spindle for 40 mm cores
  • 64MB Flash Memory with ZPL II and XML
  • Scalable and international fonts
  • Applicator interface
  • ZebraDesigner
  • ZebraDesigner Pro
  • ZebraDesigner for XML
  • ZebraNet Bridge
  • Enterprise Connector
  • ZebraNet b/g Print Server

Communication and Interface Capabilities

  • USB 2.0 port (12 Mbits per second)
  • RS-232C/422/485 multi-drop (optional adaptor)
  • High-speed, bi-directional, IEEE 1284 parallel interface
  • ZebraNet Wireless Plus Print Server
  • ZebraNet 10/100 Print Server
  • IBM Twinax interface
  • IBM Coax interface
  • Applicator interface
  • IPV6 Print Server
  • ZebraNet b/g Print Server

Programming Languages

Core programming languages: XML, ZPL, ZPL II


barcodes/Symbologies

Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
ISBT-128
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensionalAztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF
PDF417
QR Code
QR Code (requires Asian version printer)
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Fonts and Graphics

  • Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  • Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  • IBM® Code Page 850 International Characters
